24V 205Ah Lithium Forklift Battery | Drop-In Electric Pallet Jack Replacement
From $1,250.00Login for exact price
Upgrade your material handling equipment with our high-performance 24V 205Ah Lithium Forklift Battery. This advanced LiFePO4 drop-in forklift battery delivers powerful, reliable energy for electric pallet jacks, Toyota forklifts, Crown equipment, and light-duty industrial applications.
True Drop-In Replacement — Fits existing 24V lead acid forklift battery compartments with minimal or no modifications.
Fast Charging & Long Runtime — Full charge in 2-3 hours, supports opportunity charging.
Maintenance-Free & UL Certified — Eliminate watering, acid spills, and frequent replacements.
10-Year Warranty — Built with premium Grade-A cells for 3,800+ cycles.
As a trusted forklift battery supplier, CMX Battery provide industrial lithium batteries engineered for maximum uptime and lower total cost of ownership

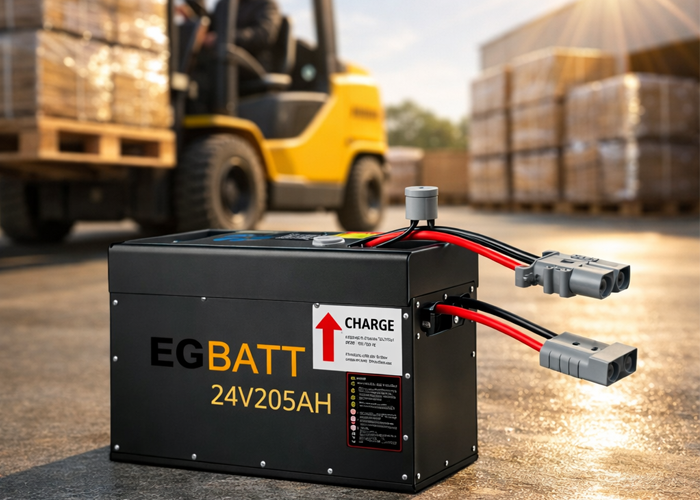

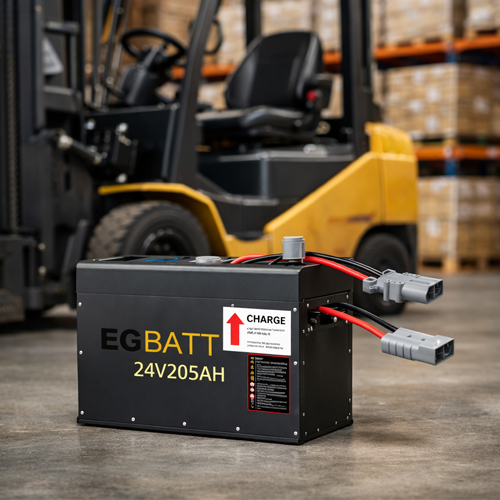

24V 205Ah Lithium Forklift Battery Overview
CMX Battery 24V 205Ah Lithium Forklift Battery is a superior lithium-ion solution designed as a direct replacement for traditional 24V lead acid forklift batteries.
With 5.25kWh of usable energy, this Battery LiIon 24V 205Ah forklift battery powers electric pallet jacks, walkie stackers, and light-duty Toyota forklift battery applications for full shifts with consistent voltage output.
Whether you need a Drop-In Forklift Battery for quick upgrades or an Industrial lithium Battery For Crown Electric Forklift, this pack offers fast charging, intelligent BMS protection, and rugged durability for warehouse and distribution environments.
It serves as the ideal 24V 205Ah Electric Pallet Jack Battery Toyota Forklift Battery, reducing downtime while improving safety and efficiency.
Operators and fleet managers choose this LS24V Lithium-ion Forklift Battery to replace aging lead-acid systems because it requires zero daily maintenance and delivers more usable capacity per charge
Key Features & Benefits
This CMX Battery 24V 205Ah Lithium Forklift Battery | Compact & Efficient Power
delivers outstanding performance while lowering long-term operating costs
| Feature | Benefit |
|---|---|
| LiFePO4 Chemistry | Superior safety, thermal stability, and 4000+ cycle life |
| True Drop-In Design | Direct forklift battery replacement — fits most standard 24V trays |
| 205Ah High Capacity | Extended runtime for full shifts with consistent power |
| Fast Charging (2-3 hours) | Supports opportunity charging, reducing downtime by up to 60% |
| Advanced Smart BMS | Real-time protection against overcharge, over-discharge, short circuit, and temperature extremes |
| Maintenance-Free Operation | No watering, no equalization, no acid maintenance required |
| UL Certified | Meets **Drop-In Forklift Battery |
Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 25.6V |
| Capacity | 205Ah |
| Energy | 5.25 kWh |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | 4000+ cycles @ 80% DOD |
| Charge Time | 2-3 hours (with fast charger) |
| Continuous Discharge | 150A |
| Peak Discharge | 300A (30 seconds) |
| Operating Temperature | -20°C to 60°C |
| Protection Rating | IP65 |
| Communication | CAN Bus / RS485 (optional) |
| Weight | Approx. 80 kg |
| Structure | STRUCTURE OF CMX Battery 24V-205AH BATTERY FOR FORKLIFTS: reinforced steel casing + modular cells + integrated BMS |
Applications

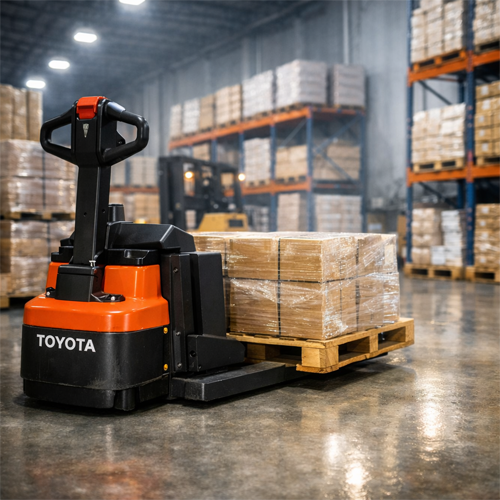

Pallet Jack & Material Handling
Optimized as 24V 205Ah Electric Pallet Jack Battery Toyota Forklift Battery for manufacturing, cold storage, and retail distribution

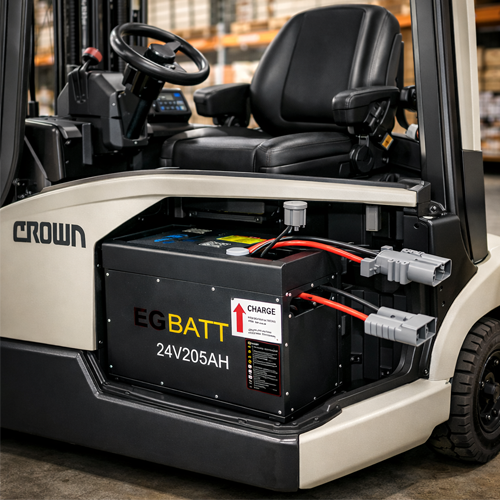

Electric Forklift Systems
Excellent Industrial lithium Battery For Crown Electric Forklift replacement, delivering higher efficiency and lower maintenance

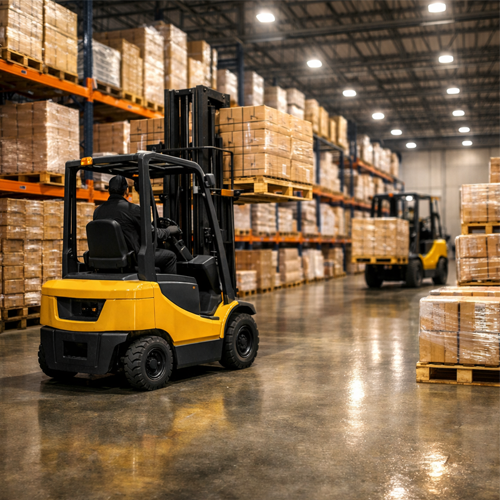

Warehouse & Logistics Centers
Perfect for high-frequency operations requiring stable power and minimal downtime.

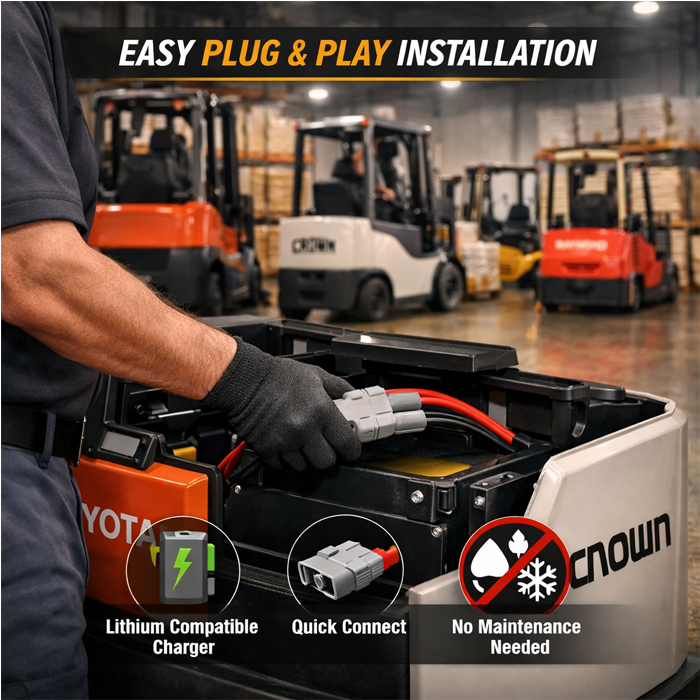

Installation & Compatibility
This Drop-In Forklift Battery | Forklift battery replacement is designed for easy, plug-and-play installation. It fits standard 24V battery compartments with little to no modification.
Compatible Brands: Toyota, Crown, Jungheinrich, Raymond, Yale, Hyster, and most Class III electric pallet jacks.
Installation Features:
- Compatible with most industrial lithium chargers
- Anderson or custom connectors available
- No electrolyte maintenance required
- Optional low-temperature heating version for cold storage
Why Choose CMX Battery 24V Forklift Lithium Battery?
- We are a trusted forklift battery suppliers with over 9 years of experience in industrial lithium battery manufacturing.
- We offer factory-direct pricing, strict quality control, fast global shipping, and full technical support.
- Our Drop-In Forklift Battery | UL Certified Forklift Battery solutions are widely used across warehouses and logistics companies worldwide
Frequently Asked Questions(FAQ)
Is this a true drop-in replacement for lead-acid batteries?
Yes. This 24V 205Ah Lithium Forklift Battery is engineered as a true drop-in forklift battery replacement for most standard 24V lead-acid systems. In most applications, it fits existing battery compartments with minimal or no modifications, making upgrades fast and cost-effective
What is the expected lifespan of the battery?
The battery delivers over 4000 charge cycles at 80% depth of discharge, significantly outperforming traditional 24V Lead Acid Forklift Battery packs. Under normal industrial usage, the service life can reach 8–10 years, helping reduce replacement frequency and total operating costs
Is it compatible with Toyota pallet jacks?
Yes. This battery is widely used as a 24V 205Ah Electric Pallet Jack Battery Toyota Forklift Battery replacement for electric pallet jacks, walkie stackers, and material handling equipment. It provides stable voltage output and longer runtime for warehouse operations
Can it be used in Crown forklifts?
Absolutely. It is a reliable Industrial lithium Battery For Crown Electric Forklift solution designed to improve charging efficiency, reduce downtime, and eliminate the maintenance associated with lead-acid batteries
How long does charging take?
With a compatible lithium charger, the battery typically reaches a full charge within 2–3 hours. It also supports opportunity charging during breaks or shift changes, helping maximize equipment uptime in multi-shift operations.
Does the battery require regular maintenance?
No. Unlike traditional lead-acid batteries, this lithium forklift battery is completely maintenance-free. There is no need for watering, equalization charging, or acid cleaning, which reduces labor costs and improves workplace safety
Is this battery UL certified?
Yes. The CMX Battery 24V Lithium Forklift battery is designed as a Drop-In Forklift Battery | UL Certified Forklift Battery solution with advanced safety protection, including BMS monitoring, overcurrent protection, and thermal management for industrial applications
What warranty do you offer?
We provide 5 year prorated warranty depending on operating conditions and application requirements. Our technical support team also offers long-term service assistance, ensuring reliable performance throughout the battery lifecycle
Send Inquiry Here:
Looking for a reliable 24V lithium forklift battery supplier?
Please contact us today for competitive pricing, bulk order discounts, or customized solutions tailored to your application.
Important: Please make sure to enter a valid email address. Our sales team will contact you via email within 12 hours with pricing, technical support, and detailed product information.
Looking for the right capacity or voltage? Read our 80V forklift lithium battery buying guide for model selection, runtime estimates, and charger compatibility.
Related models in this range
Compare other options in this category:
| Voltage |
|---|
You must be logged in to post a review.
Product & Packaging Details
Q: Do batteries include protection circuits(BMS) and connectors?
A:Protection: We supply batteries with BMS built in Protection Circuit Modules (PCM).
Connectors: We normally use standard like anderson,M8 lugs,Fast plugs or depends on OEM customer's demands.
Q: Are batteries Grade-A and brand new?
A: Yes, we use 100% brand new, Grade-A cells in all our batteries.
Q: Can you print our logo on the batteries?
A: Yes, we offer free custom logo printing with a minimal MOQ requirement.
Q: What is your standard packaging? Can it be customized?
A: Our standard is a white box per battery. We fully support customized packaging, including carton box and logo design.
Yes. CMX Battery is a manufacturer located in Shenzhen, Guangdong, China. It designs and produces LiFePO4 battery packs for energy storage, electric forklifts, marine applications, golf carts, RVs, and UPS systems.
Lead time depends on the product: standard battery packs are typically 15-25 days, while larger integrated systems such as our mobile EV charging units are 35-45 days. The exact schedule is confirmed in your quotation.
The company has strategic cooperation agreements with top manufacturers like EVE and REPT, and insists on using A+ tier One lithium iron phosphate cells for its solar batteries.
For 48V inverters, compatible brands include Victron Energy, Goodwe, Studer, Solis, LuxPower, and others. For high-voltage three-phase inverters, compatible brands include Atess, Solinteg, SAJ, Goodwe, and Solis.
CMX Battery offers dealer customers a 10-year warranty and technical service for its energy storage battery products.
DoD describes how much of the battery's capacity has been used. A DoD of 100% means the battery is completely empty, while 0% means it is full.
SoC reflects the battery's charge level. A SoC of 100% means the battery is full, and 0% means it is empty.
C-rate, or power factor, indicates how quickly a battery can be charged or discharged relative to its capacity. A rating of 1C means the battery can be fully charged or discharged in one hour.
The battery uses Lithium Iron Phosphate chemistry and provides a cycle life of over 6,000 cycles at 90% Depth of Discharge, and over 10 years at one cycle per day.
kW (kilowatt) is a unit of power, measuring the rate of energy production or consumption. kWh (kilowatt-hour) is a unit of energy, measuring the total amount of work done or energy used over time.
CMX Battery home batteries are suitable for both indoor and outdoor installation (depending on the model's protection level) and offer floor-standing or wall-mounted options. Common locations include garages, attics, or under eaves.
This depends on the load. As a realistic example, a 10kWh battery could run ten 100-watt light bulbs for 12 hours without recharging.
The number varies based on home size, energy consumption history, and personal goals (like which devices to run during an outage). For most systems, 2 or 3 batteries are installed. A detailed discussion of your needs is recommended for an accurate assessment.
Yes, it is possible, but it requires careful planning and significant investment. A true off-grid system needs a large enough solar array and sufficient battery storage to sustain your lifestyle. Cost and having an alternative energy source for when solar charging isn't possible are key considerations.
No. CMX Battery focuses on building long-term relationships with business partners like battery distributors, solar equipment dealers, and installation contractors worldwide, not direct sales to end consumers.
