36V 608Ah Lithium Forklift Battery | High Capacity Electric Stacker Battery
From $4,850.00Login for exact price
The CMX Battery 36V 608Ah Lithium Forklift Battery is a robust 23.35kWh LiFePO4 pack built to replace lead-acid batteries without hassle. It charges in just 2-3 hours, lasts over 4000 cycles, needs zero maintenance, and keeps your electric stackers and forklifts running strong all shift long.
With IP65 protection, wide temperature tolerance, and a solid 10-year warranty, this battery helps cut downtime and operating costs in warehouses, factories, and cold storage environments.
80V forklift lithium battery buying guide — model selection, runtime estimates, and charger compatibility.
Product Overview
The CMX Battery 36V 608Ah lithium forklift battery is a high-performance LiFePO4 solution engineered for demanding material handling applications. It provides consistent, powerful energy for electric stackers, pallet trucks, reach trucks, and medium-duty forklifts in warehouses, distribution centers, and manufacturing facilities.
This high capacity 36V forklift lithium battery solves common pain points of traditional lead-acid batteries, such as frequent charging, high maintenance costs, and mid-shift downtime.
With a massive 23.35 kWh energy storage and advanced Battery Management System (BMS), it ensures stable voltage output and maximum uptime across multi-shift operations.
Designed as a direct drop-in replacement, the CMX Battery 36 volt lithium forklift battery offers fast charging, zero maintenance, and superior safety features. It is ideal for businesses seeking cost-effective, eco-friendly power solutions to boost productivity while reducing total cost of ownership by up to 70%.
Whether operating in narrow-aisle warehouses, cold storage facilities, or heavy-duty logistics environments, this lithium-ion forklift battery maintains exceptional performance. Its intelligent design and robust construction make it the preferred upgrade for modern electric material handling equipment.
CMX Battery combines premium Grade-A cells with industrial-grade engineering to deliver a reliable, high-efficiency 36V 608Ah forklift battery that helps fleets run longer, charge faster, and operate greener.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Ultra-Long Cycle Life (>4000 cycles at 80% DOD) | Delivers 5–8+ years of service, dramatically reducing battery replacement frequency and long-term costs for high-utilization fleets. |
| Rapid Charging (2-3 Hours) | Supports opportunity charging with no memory effect, minimizing downtime and keeping electric stackers and forklifts productive throughout multiple shifts. |
| Complete Maintenance-Free Design | No watering, no acid checks, no equalization charging – frees up labor and eliminates battery room expenses. |
| Intelligent BMS with Multi-Layer Protection | Real-time monitoring of voltage, temperature, and current prevents overcharge, over-discharge, and thermal issues for maximum safety and longevity. |
| High Energy Density + IP65 Protection | 23.35 kWh powerful output in a compact, dustproof and waterproof package suitable for indoor, outdoor, and harsh industrial conditions. |
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | EG-B-LFP36-608MH |
| Nominal Voltage | 38.4V |
| Nominal Capacity | 608Ah |
| Stored Energy | 23.35 kWh |
| Cycle Life | >4000 cycles (80% DOD) |
| Design Life | >10 years |
| Self-Discharge Rate | <3% per month |
| Charge Method | CCCV |
| Recommended Charger | 48V 200A |
| Compatible Charger Brands | SPE, FRONIUS, DELTA-Q, ECOTEC, etc. |
| Charging Plug | REMA320 |
| Discharge Plug | ANDERSON350 |
| Ingress Protection | IP65 |
| Charge Temperature | 0°C to 50°C |
| Discharge Temperature | -20°C to 55°C |
| Storage Temperature | 0°C to 40°C |
| Weight (approx.) | 281 kg (619 lbs) |
| Communication | CAN / RS485 |
| Display | Magnetic Touch Screen |
| Certifications | CE, UN38.3, UL2580, IEC, CB, ISO9001 |
| Lead-Acid Replacement Reference | 18-125-21 (BCI) |
PDF Download
Applications
Warehouse Narrow-Aisle Electric Stackers & Pallet Jacks
This 36V 608Ah lithium forklift battery powers high-intensity indoor operations with consistent energy delivery and fast opportunity charging, maximizing throughput in distribution centers and e-commerce fulfillment warehouses.
Manufacturing & Heavy Material Handling
Ideal for production facilities requiring reliable power for counterbalanced forklifts and reach trucks. The high-capacity lithium-ion design supports long shifts with stable voltage for heavy loads and continuous operation.
Cold Storage and Outdoor Logistics
With wide temperature tolerance (-20°C discharge) and IP65 rating, the battery excels in refrigerated warehouses and outdoor material handling, maintaining performance where lead-acid batteries typically fail.
Installation & Compatibility
Compatibility
The CMX Battery 36V 608Ah lithium forklift battery is compatible with major brands including Hyster, Yale, Toyota, Linde, Carer, Bobcat, and many other Class I-III electric forklifts and stackers.
It serves as a seamless drop-in replacement for lead-acid batteries (BCI 18-125-21 reference) and supports CAN bus communication for full vehicle integration.
Environmental Requirements
- *Charging: 0°C to 50°C
- *Discharging: -20°C to 55°C
- *IP65 dust and water protection for demanding industrial use
Installation Guidance
The modular design allows quick installation (typically 1-2 hours). Basic steps: remove old lead-acid battery, secure the lithium pack, connect power cables and communication lines, then configure the BMS display. Professional installation is recommended for optimal integration.
Why Choose Us?
CMX Battery is a specialized lithium battery manufacturer with extensive experience in industrial energy solutions.
We use premium Grade-A LiFePO4 cells and advanced BMS technology, with every battery undergoing rigorous testing and holding multiple international certifications.
When you choose CMX Battery, you get:
- Industry-leading 10-year warranty with global technical support
- Flexible customization options for dimensions, capacity, and protocols
- Significant reduction in total cost of ownership
- Proven real-world performance in warehouses, ports, and manufacturing sites worldwide
We are committed to helping businesses transition to greener, more efficient material handling power solutions.
Frequently Asked Questions(FAQ)
What is the warranty period for this 36V 608Ah lithium forklift battery?
We offer 10-year warranty (or cycle-based, subject to contract terms) covering manufacturing defects
Can this battery fully replace traditional lead-acid forklift batteries?
Yes. It is designed as a direct drop-in replacement for most 36V lead-acid systems with minimal or no vehicle modifications required
How long does it take to charge the 36V 608Ah battery?
Full charge is typically achieved in 2-3 hours using recommended chargers, with opportunity charging supported
What maintenance is required?
The battery is completely maintenance-free – no watering, no acid checks, and no equalization charging needed
Is this lithium battery suitable for cold storage applications?
Yes. It supports discharge down to -20°C, making it excellent for refrigerated warehouses and cold chain logistics
How can I get a quote or custom solution?
Please fill out the form below sent an Inquiry. Our Sales team responds within 12 hours
Sent Inquiry here:
| Voltage |
|---|
You must be logged in to post a review.
Product & Packaging Details
Q: Do batteries include protection circuits(BMS) and connectors?
A:Protection: We supply batteries with BMS built in Protection Circuit Modules (PCM).
Connectors: We normally use standard like anderson,M8 lugs,Fast plugs or depends on OEM customer's demands.
Q: Are batteries Grade-A and brand new?
A: Yes, we use 100% brand new, Grade-A cells in all our batteries.
Q: Can you print our logo on the batteries?
A: Yes, we offer free custom logo printing with a minimal MOQ requirement.
Q: What is your standard packaging? Can it be customized?
A: Our standard is a white box per battery. We fully support customized packaging, including carton box and logo design.
Yes. CMX Battery is a manufacturer located in Shenzhen, Guangdong, China. It designs and produces LiFePO4 battery packs for energy storage, electric forklifts, marine applications, golf carts, RVs, and UPS systems.
Lead time depends on the product: standard battery packs are typically 15-25 days, while larger integrated systems such as our mobile EV charging units are 35-45 days. The exact schedule is confirmed in your quotation.
The company has strategic cooperation agreements with top manufacturers like EVE and REPT, and insists on using A+ tier One lithium iron phosphate cells for its solar batteries.
For 48V inverters, compatible brands include Victron Energy, Goodwe, Studer, Solis, LuxPower, and others. For high-voltage three-phase inverters, compatible brands include Atess, Solinteg, SAJ, Goodwe, and Solis.
CMX Battery offers dealer customers a 10-year warranty and technical service for its energy storage battery products.
DoD describes how much of the battery's capacity has been used. A DoD of 100% means the battery is completely empty, while 0% means it is full.
SoC reflects the battery's charge level. A SoC of 100% means the battery is full, and 0% means it is empty.
C-rate, or power factor, indicates how quickly a battery can be charged or discharged relative to its capacity. A rating of 1C means the battery can be fully charged or discharged in one hour.
The battery uses Lithium Iron Phosphate chemistry and provides a cycle life of over 6,000 cycles at 90% Depth of Discharge, and over 10 years at one cycle per day.
kW (kilowatt) is a unit of power, measuring the rate of energy production or consumption. kWh (kilowatt-hour) is a unit of energy, measuring the total amount of work done or energy used over time.
CMX Battery home batteries are suitable for both indoor and outdoor installation (depending on the model's protection level) and offer floor-standing or wall-mounted options. Common locations include garages, attics, or under eaves.
This depends on the load. As a realistic example, a 10kWh battery could run ten 100-watt light bulbs for 12 hours without recharging.
The number varies based on home size, energy consumption history, and personal goals (like which devices to run during an outage). For most systems, 2 or 3 batteries are installed. A detailed discussion of your needs is recommended for an accurate assessment.
Yes, it is possible, but it requires careful planning and significant investment. A true off-grid system needs a large enough solar array and sufficient battery storage to sustain your lifestyle. Cost and having an alternative energy source for when solar charging isn't possible are key considerations.
No. CMX Battery focuses on building long-term relationships with business partners like battery distributors, solar equipment dealers, and installation contractors worldwide, not direct sales to end consumers.
Related products
24V 150Ah LiFePO4 Forklift Battery | Fast-Charging Pallet Jack Battery
Upgrade your electric pallet jacks and walkie stackers with a reliable 24V 150Ah LiFePO4 forklift battery designed for fast charging and long service life.
The EG-F24150L delivers 3.84kWh of stable lithium power with significantly lower weight than traditional lead-acid batteries. Built with Grade-A LiFePO4 cells and an intelligent CAN Bus BMS, it provides safe operation, opportunity charging, and maintenance-free performance for demanding warehouse environments.
This CMX Battery 24V 150Ah lithium forklift battery helps reduce downtime, improve efficiency, and lower long-term operating costs for warehouse fleets.
80V forklift lithium battery buying guide — model selection, runtime estimates, and charger compatibility.
24V 608Ah LiFePO4 Forklift Battery High Capacity Jungheinrich Pallet Jack Battery
The CMX Battery high-capacity 24v 608Ah Lithium forklift battery designed for Jungheinrich pallet jacks, delivering reliable, long-lasting performance in demanding material handling environments.
Built with Grade-A lithium iron phosphate cells, this forklift battery offers a superior alternative to traditional lead-acid options. It’s maintenance-free, supports fast charging, and provides a much longer service life, reducing equipment downtime and keeping your operations running smoothly.
By upgrading to this advanced LiFePO4 forklift battery, you can cut replacement frequency, improve energy efficiency, and save 20–40% on total cost of ownership over time. Whether you’re running a warehouse, distribution center, or manufacturing facility, this lithium forklift battery is a smart investment in performance, durability, and cost savings.
80V forklift lithium battery buying guide — model selection, runtime estimates, and charger compatibility.
36V 820Ah LiFePO4 Forklift Battery | Extended Runtime for Heavy-Duty Warehouse Operations
Extended Runtime Power for Heavy-Duty Warehouse Operations
When forklift uptime directly impacts warehouse productivity, battery performance becomes critical.
The CMX Battery 36V 820Ah LiFePO4 Forklift Battery is designed for demanding material handling environments where forklifts operate for extended periods, move heavy loads, and work across multiple shifts every day.
With a usable energy capacity of 31.5kWh, this lithium battery provides longer operating hours, faster charging, and significantly lower maintenance requirements than traditional lead-acid batteries.
Built using premium lithium iron phosphate cells and an advanced Battery Management System (BMS), the battery delivers stable power output throughout the discharge cycle, helping operators maintain consistent lifting performance from the beginning of the shift to the end.
80V forklift lithium battery buying guide — model selection, runtime estimates, and charger compatibility.
48V 400Ah LiFePO4 Lithium Forklift Traction Battery Replacement for Electric Forklifts – F48400C
- The CMX Battery F48400C 48V 400Ah LiFePO4 Lithium Forklift Battery is a high-performance replacement for traditional lead-acid forklift batteries.
- Designed for electric forklifts, AGVs, and material handling equipment, it offers fast charging, deep-cycle performance, intelligent BMS protection, and over 3,500 cycles of service life.
- Compatible with Heli CPD10, Komatsu FB15EX series, and other 48V forklift applications.
48V 560Ah Forklift Lithium Battery for Narrow Aisle Forklifts | 28.67kWh LiFePO4
The CMX Battery 48V 560Ah Forklift Lithium Battery is a high-performance LiFePO4 power solution designed for narrow aisle forklifts, reach trucks, and order pickers.
Delivering 28.67kWh of usable energy, 3,500+ cycles at 80% DoD, and an IP65-rated steel enclosure, it provides reliable power for demanding warehouse operations.
With maintenance-free operation, opportunity charging capability, and dependable performance in cold storage environments down to -20°C, it offers a practical and long-lasting replacement for traditional lead-acid forklift batteries
80V forklift lithium battery buying guide — model selection, runtime estimates, and charger compatibility.
80V 400Ah LiFePO4 Lithium Forklift Battery Pack for Electric Fork Trucks
Direct Factory Wholesale Price
Eliminate middleman markups with high-volume manufacturing rates.3,500+ Deep Charge Cycles – Outlasts traditional lead-acid alternatives by more than 3 times.
Drop-In Replacement Ready
Engineered with custom steel counterweights to match OEM specifications.
Zero Daily MaintenanceÂ
Completely eliminates the need for acid watering, equalization charges, and battery rooms.
Rapid Opportunity Charging
Fully recharges in under 2 hours during scheduled employee shift breaks.

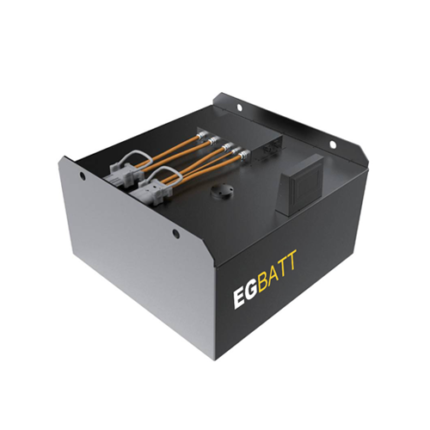

Customized 48V 690Ah Lithium Forklift Battery F48690BD | Long Cycle Life LiFePO4 Battery Pack for Walkie Stackers
