24V 280Ah LiFePO4 Crown Electric Forklift Battery | Fast Charging 7168Wh for AGV
EGBATT 24V 280Ah LiFePO4 Forklift Battery – F24280F-A is a drop-in lithium solution for Crown forklifts, AGVs, and pallet jacks. End watering, reduce downtime, and increase productivity.
- 7.17kWh High Energy Output – 280Ah capacity provides extended runtime and consistent voltage under heavy loads
- Fast & Opportunity Charging – Recharge up to 80% in about 1.5 hours and charge during breaks without damaging battery life
- Maintenance-Free LiFePO4 Design – No watering, equalization, acid spills, or battery change rooms required
- 3,500+ Deep Cycles – Lasts up to 3–4× longer than traditional lead-acid forklift batteries
- Lower Operating Costs – Reduce energy consumption, maintenance labor, and replacement frequency by up to 70% over battery lifetime
24V 280Ah LiFePO4 Forklift Battery Overview

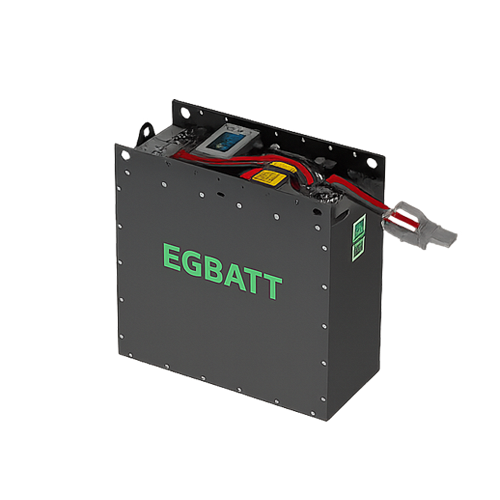

The 24V 280Ah LiFePO4 Crown Electric Forklift Battery from EGBATT is a high‑performance lithium power source designed for demanding material handling operations.
Whether you run Crown forklifts, electric pallet jacks, or AGVs, this LiFePo4 24V/25.6V 280Ah Forklift Battery Pack delivers reliable, high‑power output with zero daily maintenance.
Traditional lead‑acid batteries force you to stop for watering, equalizing, and long charging. EGBATT’s 7168Wh AGV Forklift Lithium LiFePo4 Battery Pack 24V 280Ah eliminates all that.
With over 3,500 cycles and integrated smart BMS, it supports fast charging 24V 280AH forklift lithium battery behavior – meaning you can opportunity charge during breaks and keep your fleet running 24/7.
It’s a true drop‑in replacement for Crown electric forklifts and many other Class I/II/III trucks. By switching to this 24V 280AH Forklift Battery, warehouses and distribution centers reduce energy costs by ~30% and eliminate expensive battery change‑out rooms
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Fast Charging & Opportunity Charging | Recharge up to 80% in <1.5 hours. Opportunity charging during lunch breaks extends runtime without swapping batteries. Perfect for multi‑shift operations. |
| Smart BMS with CAN bus / RS485 | Real‑time monitoring, cell balancing, and protection. Seamless integration with Crown truck displays and AGV control systems. |
| True Maintenance‑Free | No watering, no equalization charges, no acid corrosion. Save 2‑3 hours per week per truck. |
| 3500+ Deep Cycles | Lasts 3‑4 times longer than lead‑acid. Lower total cost of ownership (TCO) over 10+ years. |
| Drop‑In Replacement | Fits standard 24V battery compartments. Works with existing Crown, Toyota, Hyster, Raymond, and Yale forklifts. |
| Lightweight & High Efficiency | ~50% lighter than lead‑acid. Reduces truck energy consumption and increases lift capacity |
Technical Specifications
Below are the key parameters of the model EG‑F24280F-A. This 24V280A LifePo4 FORKLIFT BATTERY can be customized in dimensions to fit various battery compartments
| Parameter | Specification |
|---|---|
| Model No. | EG‑F24280F‑A |
| Nominal Voltage | 25.6 V (24V DC system) |
| Nominal Capacity | 280 Ah |
| Stored Energy | 7.17 kWh (7168 Wh) |
| Self‑Discharge | <3% per month |
| Design Life | >10 years |
| Cycle Life | >3,500 cycles @ 80% DoD |
| Cell Configuration | 1P8S1 |
| Dimensions (LxWxH) | Support Customized |
| Weight | Approx. 97.30 kg / 214.54 lb |
| IP Rating | IP65 |
| Lead Acid Model (BCI Number) | 12‑85‑9 |
| Display | Magnetic Touch Display |
| Charge Method | CCCV |
| Recommended Charger | 24V 150A |
| Charge Connector | REMA160 |
| Discharge Connector | ANDERSON175 |
| Communication Protocols | CAN bus (vehicle), RS485 (display) |
| Charge Temperature | 0°C to 50°C / 32°F to 131°F |
| Discharge Temperature | -20°C to 55°C / -4°F to 131°F |
| Storage Temperature | 0°C to 40°C / -4°F to 113°F |
| Certifications | CE, UN38.3, UL2580, IEC, CB, ISO9001 |
| Shipping Classification | UN 3480 |
| Warranty | 10‑year manufacturer warranty |
Applications

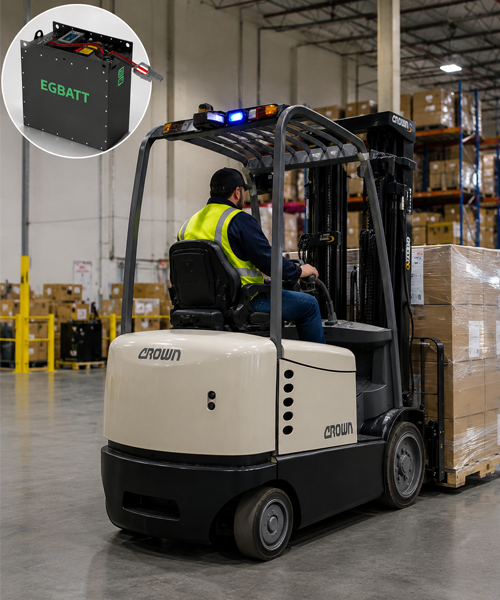

Crown Electric Forklifts & Pallet Jacks
This 24V LiFePO4 Battery 280Ah Crown Electric Forklift Battery is an exact electrical and dimensional match for Crown’s popular models (e.g., Crown SP series, RC series). It delivers steady voltage during lifting and high travel speeds, improving warehouse throughput. The Lead Acid Model (BCI Number) 12‑85‑9 compatibility makes replacement straightforward.
Automatic Guided Vehicles (AGVs)
The 7168Wh AGV Forklift Lithium LiFePo4 Battery Pack 24V 280Ah integrates with AGVs via CAN bus. AGVs benefit from fast charging during idle periods, enabling near‑continuous operation without manual intervention. The Magnetic Touch Display allows operators to check battery status at a glance
Electric Reach Trucks, Stackers & Extreme Environments
High‑lift reach trucks and stackers require bursts of high current, and this 24 Volt forklift battery delivers up to 250A continuous discharge to ensure stable mast lift speeds even under heavy loads. With IP65 protection and a wide operating temperature range, the same battery also works reliably in demanding environments – from freezers as cold as -20°C to foundries as hot as 55°C.
Installation & Compatibility
As a professional Lithium Ion Forklift Battery Manufacturer & Supplier – EGBATT, designed this battery for drop‑in replacement.
It directly replaces lead‑acid batteries in most Crown, Toyota, Hyster, Yale, Raymond, and Linde electric forklifts. The BCI number 12‑85‑9 serves as a quick cross‑reference for common lead‑acid battery replacements
Key installation notes:
Electrical connectors: Standard REMA160 charge head and ANDERSON175 discharge head. Compatible with common controller systems.
Charger compatibility: Use a 24V lithium‑specific charger (recommended 150A). Works with Delta‑Q, Fronius, and SPE chargers set to lithium profile.
Environment: Install in dry, ventilated areas free from corrosive gases.
BMS communication: For OEM dashboard integration or AGV telemetry, connect the CAN bus or RS485 lines. EGBATT provides full protocol documentation.
Magnetic Touch Display: Included for real‑time monitoring of voltage, current, temperature, and cycle count.
Dimension customization: The 24V/25.6V 280Ah Forklift Battery Pack enclosure size can be customized for tight compartments. Contact EGBATT sales for OEM dimensions.
Why Choose EGBATT?
Among many Lithium Ion Forklift Battery Manufacturer & Supplier companies, EGBATT stands out for engineering depth and customer focus.
13+ years in lithium battery manufacturing – Based in Shenzhen, China, serving global OEM and aftermarket clients.
10‑year warranty – We stand behind our 24V 280Ah LiFePO4 Forklift Battery – F24280F-A with a full 10‑year manufacturer’s warranty.
Full technical support – From CAN protocol integration to after‑sales training, our engineers provide 1:1 assistance.
Proven cost savings – Customers report 30‑40% lower energy consumption and 70% reduced maintenance labor after switching to EGBATT lithium.
Rigorous safety certifications – Every battery pack is tested to UL2580, UN38.3, and IEC standards, ensuring safe operation in the toughest industrial conditions, from cold storage to high‑heat foundries.
Fast & flexible OEM solutions – Whether you need a single prototype or a container‑volume order, we deliver custom voltages, capacities, and enclosures for any material handling equipment, including AGVs, reach trucks, and pallet jacks.
Frequently Asked Questions (FAQs)
Yes. This 24V 280AH Forklift Battery is designed as a direct replacement. It fits standard 24V compartments and uses REMA160/ANDERSON175 connectors. The BCI number 12‑85‑9 matches many common lead‑acid battery sizes
With a 150A charger, it reaches full charge in about 2 hours. Fast Charging 24V 280AH Forklift Lithium Battery capability allows opportunity charging – even 15 minutes of charging adds ~1‑2 hours of runtime
Yes. Every LiFePo4 24V/25.6V 280Ah Forklift Battery Pack includes a fully integrated Smart BMS with CAN bus and RS485, plus a Magnetic Touch Display for real‑time monitoring. No extra purchase needed
EGBATT offers an 10‑year warranty on this model, covering defects in materials and workmanship. Performance degradation below 70% of rated capacity within 10 years is also covered.
Absolutely. This 24 Volt Lithium Ion Batteries In Forklifts works perfectly in electric pallet jacks, walkie stackers, and tow tractors. You’ll get faster travel speeds and longer shift life.
Yes. As a Lithium Ion Forklift Battery Manufacturer & Supplier – EGBATT, we provide fully customizable battery packs – different dimensions, capacities (e.g., 200Ah, 300Ah, 400Ah etc), and voltages (12V, 24V, 36V, 48V, 80V). Contact us with your specifications
The battery is UN38.3 certified and shipped as Class 9 dangerous goods (UN 3480) in compliance with international regulations. EGBATT uses certified packaging and carriers to ensure safe delivery worldwide
Send Inquiry here
Fill out the form below to receive the latest pricing and a technical datasheet for the 24V/25.6V 280Ah Forklift Battery Pack
You must be logged in to post a review.
Product & Packaging Details
Q: Do batteries include protection circuits（BMS) and connectors?
A:Protection: We supply batteries with BMS built in Protection Circuit Modules (PCM).
Connectors: We normally use standard like anderson,M8 lugs,Fast plugs or depends on OEM customer's demends.
Q: Are batteries Grade-A and brand new?
A: Yes, we use 100% brand new, Grade-A cells in all our batteries.
Q: Can you print our logo on the batteries?
A: Yes, we offer free custom logo printing with a minimal MOQ requirement.
Q: What is your standard packaging? Can it be customized?
A: Our standard is a white box per battery. We fully support customized packaging, including carton box and logo design.
Yes. EGbatt is a manufacturer located in Shenzhen, Guangdong, China. It designs and produces LiFePO4 battery packs for energy storage, electric forklifts, marine applications, golf carts, RVs, and UPS systems.
Based on automated production technology, the current product lead time is 15-25 days.
The company has strategic cooperation agreements with top manufacturers like EVE and REPT, and insists on using A+ tier One lithium iron phosphate cells for its solar batteries.
For 48V inverters, compatible brands include Victron Energy, Goodwe, Studer, Solis, LuxPower, and others. For high-voltage three-phase inverters, compatible brands include Atess, Solinteg, SAJ, Goodwe, and Solis.
EGbatt offers dealer customers a 10-year warranty and technical service for its energy storage battery products.
DoD describes how much of the battery's capacity has been used. A DoD of 100% means the battery is completely empty, while 0% means it is full.
SoC reflects the battery's charge level. A SoC of 100% means the battery is full, and 0% means it is empty.
C-rate, or power factor, indicates how quickly a battery can be charged or discharged relative to its capacity. A rating of 1C means the battery can be fully charged or discharged in one hour.
The battery uses Lithium Iron Phosphate chemistry and provides a cycle life of over 6,000 cycles at 90% Depth of Discharge, and over 10 years at one cycle per day.
kW (kilowatt) is a unit of power, measuring the rate of energy production or consumption. kWh (kilowatt-hour) is a unit of energy, measuring the total amount of work done or energy used over time.
EGbatt home batteries are suitable for both indoor and outdoor installation (depending on the model's protection level) and offer floor-standing or wall-mounted options. Common locations include garages, attics, or under eaves.
This depends on the load. As a realistic example, a 10kWh battery could run ten 100-watt light bulbs for 12 hours without recharging.
The number varies based on home size, energy consumption history, and personal goals (like which devices to run during an outage). For most systems, 2 or 3 batteries are installed. A detailed discussion of your needs is recommended for an accurate assessment.
Yes, it is possible, but it requires careful planning and significant investment. A true off-grid system needs a large enough solar array and sufficient battery storage to sustain your lifestyle. Cost and having an alternative energy source for when solar charging isn't possible are key considerations.
No. EGbatt focuses on building long-term relationships with business partners like battery distributors, solar equipment dealers, and installation contractors worldwide, not direct sales to end consumers.
