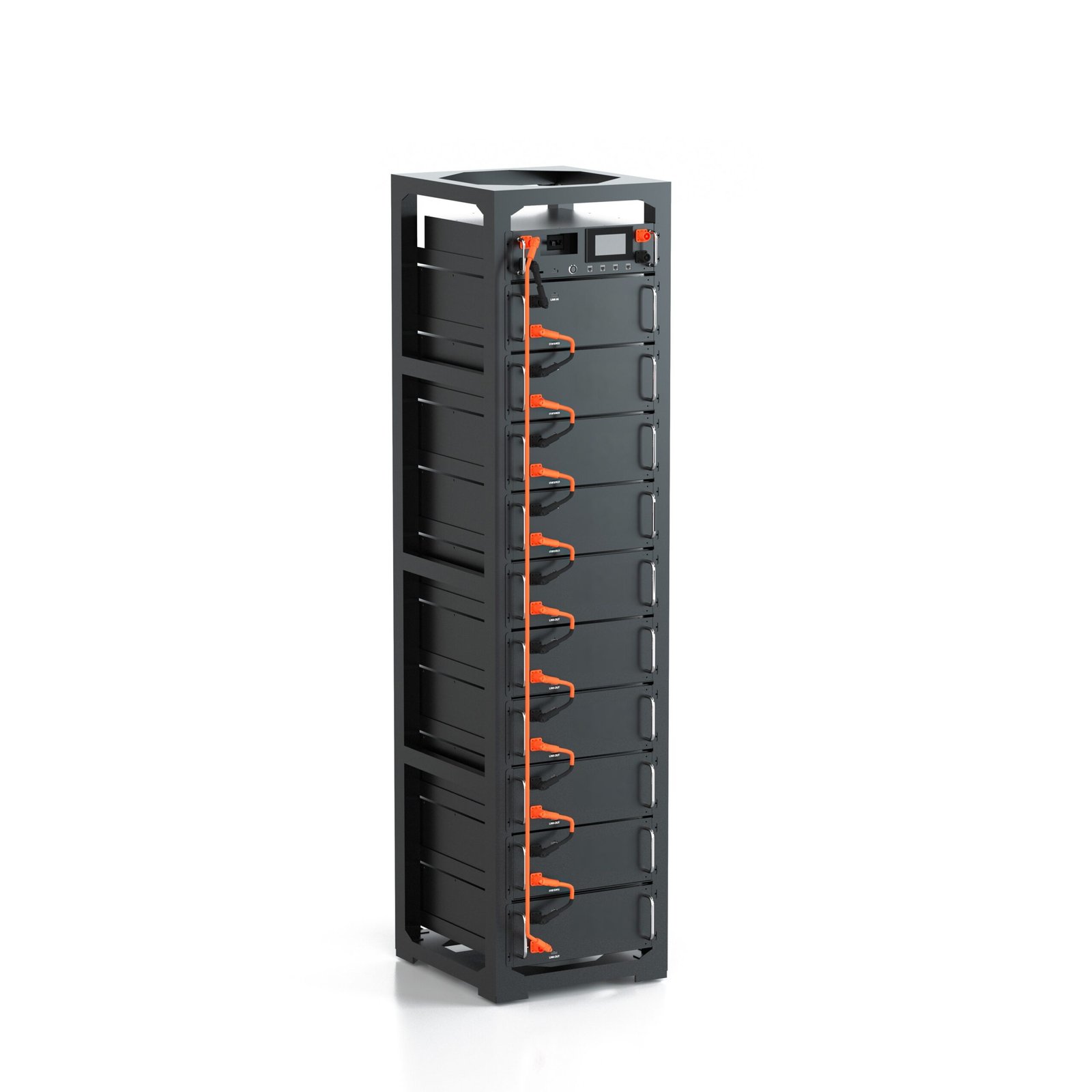

CMX 614V 100Ah 61kWh High Voltage Cabinet LiFePO4 Battery

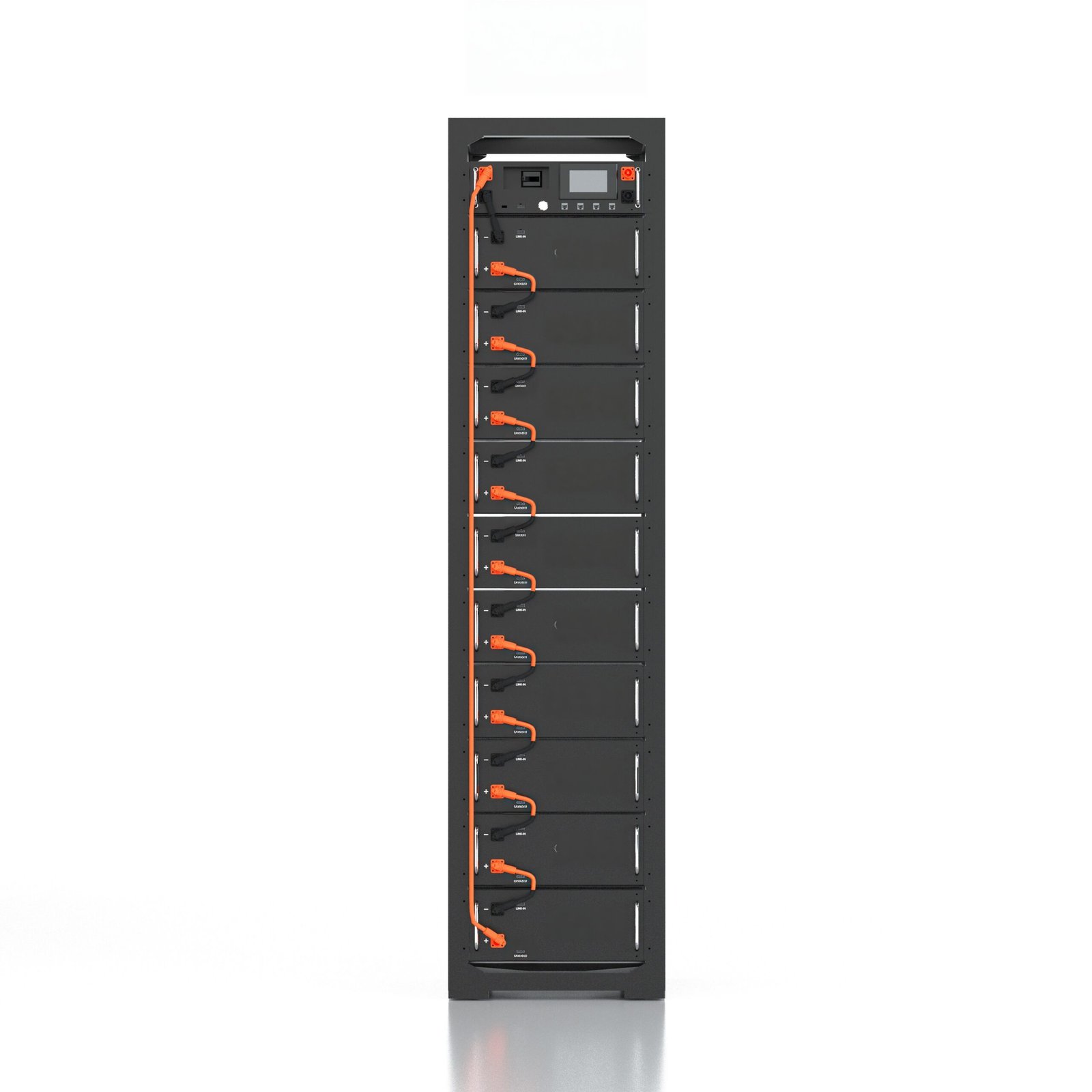

CMX 614V 100Ah 61kWh High Voltage Cabinet LiFePO4 Battery - view 2

Click to enlarge

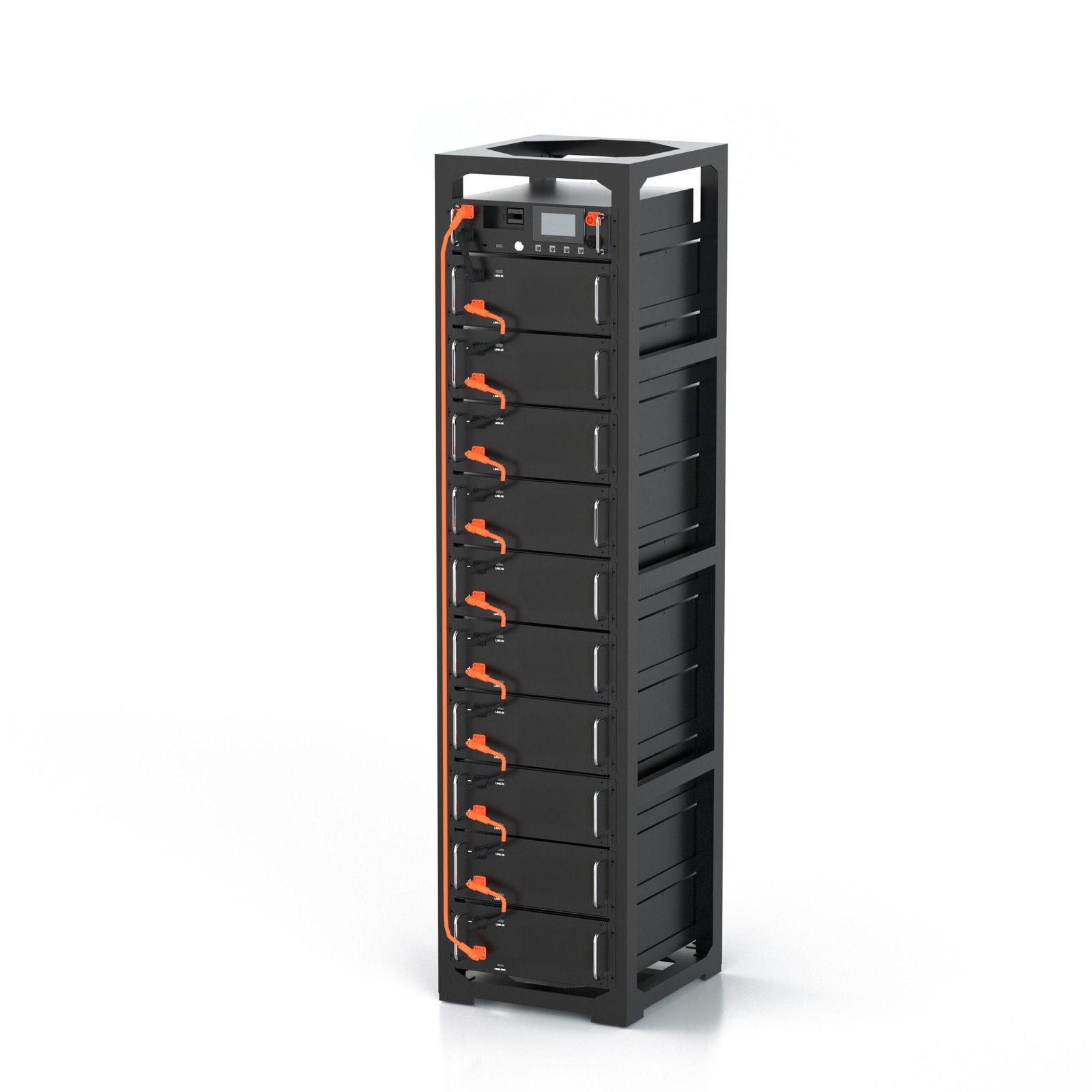

CMX 614V 100Ah 61kWh High Voltage Cabinet LiFePO4 Battery

The CMX 614V 100Ah 61kWh High Voltage Cabinet LiFePO4 Battery is a cabinet LiFePO4 battery for home and residential energy storage. Engineered for long service life, a protected smart BMS, and safe, low-maintenance operation.

614V · 100Ah · 61kWh usable
6000+ cycle life · 5-year warranty
Our high-voltage lithium battery energy storage system is compatible with systems with voltages from 96VDC to 1000VDC.
Compatible with mainstream inverter brands in the market: Deye, ATESS, GOODWE, Solis, Growatt, Megarevo, Aforce, etc.

SKU: CMX2106638FS Category: Commercial & Industrial ESS

Description

Overview

The CMX 614V 100Ah 61kWh High Voltage Cabinet LiFePO4 Battery is a cabinet LiFePO4 (lithium iron phosphate) battery built for home and residential energy storage. It delivers 61kWh of usable energy · at 614V · with a rated 100Ah capacity, combining a long cycle life, a fully protected smart BMS, and a space-saving cabinet form factor into a safe, maintenance-light energy storage solution. CMX uses automotive-grade LiFePO4 cells and a self-developed BMS so the pack stays balanced, efficient, and protected across its whole service life.

Key Features

Our high-voltage lithium battery energy storage system is compatible with systems with voltages from 96VDC to 1000VDC.
Compatible with mainstream inverter brands in the market: Deye, ATESS, GOODWE, Solis, Growatt, Megarevo, Aforce, etc.
In addition, our company’s high-voltage lithium batteries are also compatible with domestic mainline UPS brands, such as EAST, Kstar, INVT, etc. At the same time, we also have UPS high-voltage lithium battery systems with neutral lines, which can meet the domestic mainline high-voltage UPS tower machines. Follow the solution of using UPS battery with N wire.
Meets the requirement of synchronous parallell operation of 8 units, which can basically cover indoor solutions from 10KWH to 1MWH.

Technical Specifications

Nominal Voltage	614V
Nominal Capacity	100Ah
Usable Energy	61kWh
Battery Chemistry	LiFePO4 (lithium iron phosphate)
Certifications	UL 1973, IEC 62619, UN 38.3, CE, and RoHS
OEM/ODM	Custom voltage, capacity, and enclosure available

Full mechanical drawings, dimensions, weight, and discharge curves are available in the downloadable datasheet — contact CMX for the complete specification.

Application Scenarios

This cabinet LiFePO4 pack is suited to whole-home backup power, daily solar self-consumption, and off-grid cabins. It pairs with mainstream hybrid and off-grid inverters and scales from a single unit to parallel banks, making it a flexible choice for both first-time installs and capacity upgrades.

Why Choose Shenzhen CMX Battery Co., Ltd.

Shenzhen CMX Battery Co., Ltd. is a 9+ year LiFePO4 battery manufacturer with an annual cell-and-pack capacity of 5.8 GWh and an in-house factory in Tangxia, Dongguan, China. We provide OEM/ODM for voltage, capacity, BMS, and enclosure, and every pack ships with certified cells (UL 1973, IEC 62619, UN 38.3, CE, and RoHS). Our engineering team supports system sizing, standard BMS communication, and global compliance so integrators and distributors can deploy with confidence.

FAQ

Can this battery connect to my existing hybrid inverter?

Yes. CMX LiFePO4 packs communicate over CAN/RS485 and work with mainstream hybrid and off-grid inverters. Share your inverter model and we will confirm the protocol.

How many units can I connect in parallel?

Most residential wall-mounted and rack units support parallel expansion for higher capacity. The exact limit depends on the model — see the datasheet or ask our team.

What does the warranty cover?

CMX provides a 5-year factory warranty on the battery pack; cycle life is rated at 6000+ cycles under standard conditions.

Get a Quote & Datasheet

Need pricing, lead time, or the full specification for the CMX 614V 100Ah 61kWh High Voltage Cabinet LiFePO4 Battery? Our team replies with a quote, OEM/ODM options, and the downloadable datasheet. You can also reach us at sales@cmxbattery.com.
