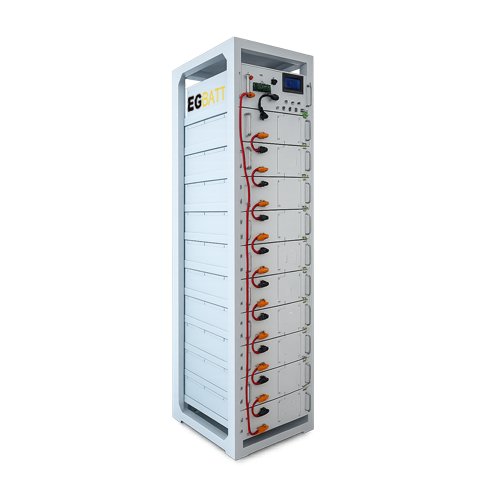

GRHV High Voltage Rack-Mount Battery System | 96.5-209kWh Modular LiFePO4 ESS
The EGBATT GRHV Rack-Mount High Voltage Battery System is a scalable lithium iron phosphate (LiFePO4) energy storage solution engineered for commercial ESS projects, industrial facilities, solar energy storage, microgrids, and backup power systems.
With configurable capacities from 96.5kWh to 209kWh and operating voltages ranging from 307.2V to 665.6V, the GRHV series delivers higher efficiency, lower current losses, simplified system integration, and exceptional long-term reliability.
Its modular 19-inch server rack architecture enables flexible deployment, easy maintenance, and future expansion, seamlessly integrating with leading hybrid inverters from Deye, Growatt, Sol-Ark, and more.
Product Overview
The GRHV Rack-Mount High Voltage Battery System is a scalable LiFePO4 energy storage solution designed for high-efficiency commercial and industrial applications.
With a high-voltage architecture ranging from 307.2V to 665.6V and system capacities from 96.5kWh to 209kWh, it delivers stronger performance, lower energy loss, and better inverter compatibility compared to traditional low-voltage systems.
Engineered for Efficiency, Safety & Reliability
Each GRHV system integrates high-quality components and advanced control technology to ensure stable long-term operation:
- Scalable capacity: 96.5kWh – 209kWh
- High-voltage design: 307.2V – 665.6V
- Premium LiFePO4 battery chemistry
- Up to 6000 cycles service life
- Intelligent cloud-based monitoring system
- Multi-layer safety protection design
- Modular rack-mounted architecture for easy deployment
- Compatible with leading hybrid inverter brands
GRHV systems are built for solar storage, C&I ESS, peak shaving, backup power, and off-grid and telecom applications

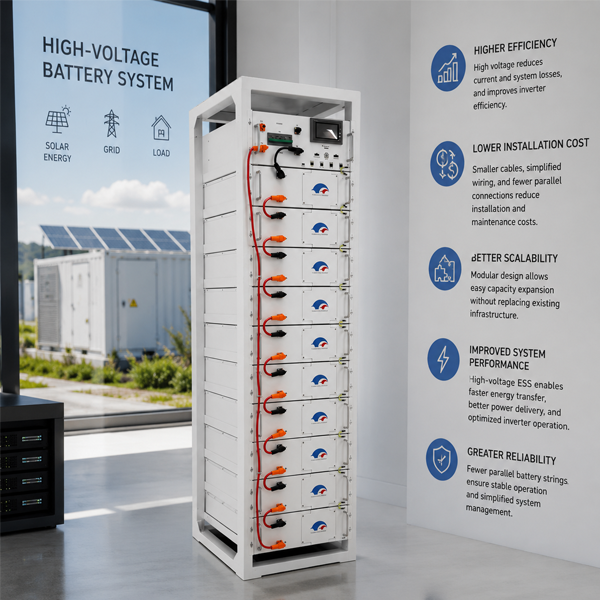

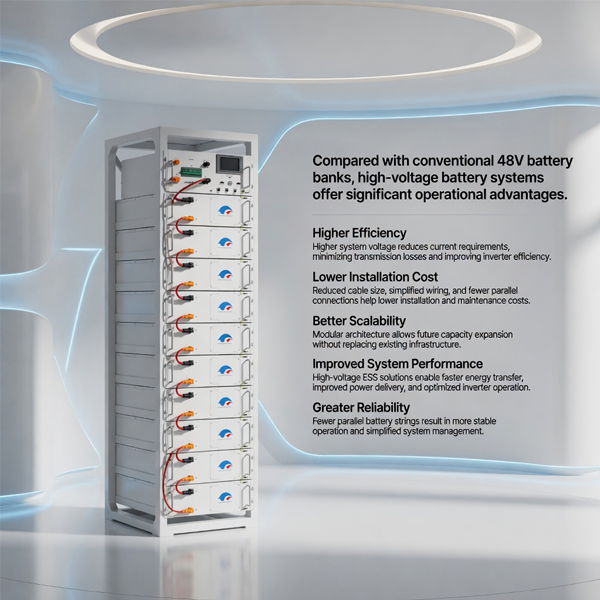

Why Choose a High Voltage Battery System?
Compared with conventional 48V battery banks, high-voltage battery systems offer significant operational advantages.
Higher Efficiency
Higher system voltage reduces current requirements, minimizing transmission losses and improving inverter efficiency.
Lower Installation Cost
Reduced cable size, simplified wiring, and fewer parallel connections help lower installation and maintenance costs.
Better Scalability
Modular architecture allows future capacity expansion without replacing existing infrastructure.
Improved System Performance
High-voltage ESS solutions enable faster energy transfer, improved power delivery, and optimized inverter operation.
Greater Reliability
Fewer parallel battery strings result in more stable operation and simplified system management

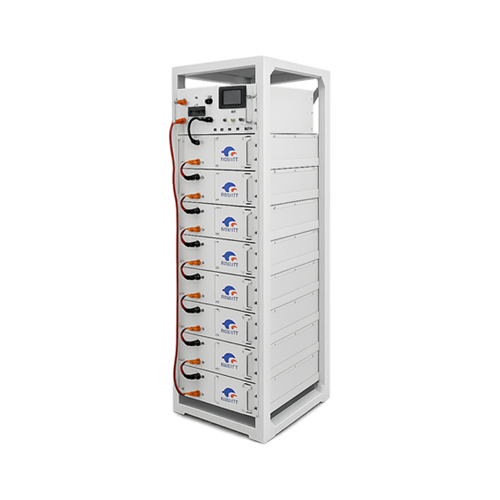

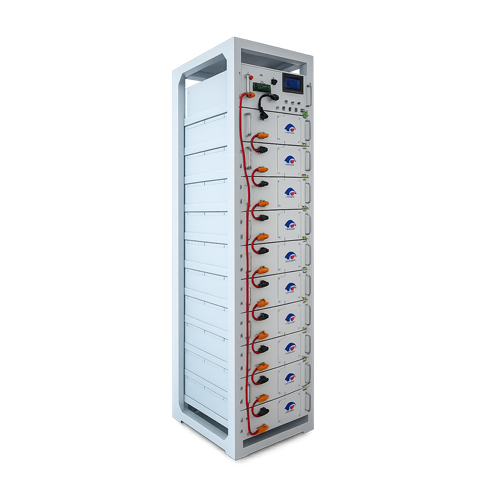

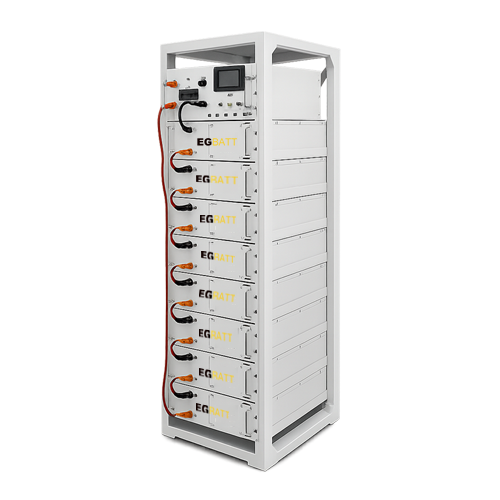

High Voltage Rack Battery Design
The GRHV series combines the advantages of a high-voltage architecture with a standard 19-inch rack-mounted battery design.
Unlike conventional cabinet ESS systems, the rack-mount structure simplifies transportation, installation, maintenance, and future expansion.
By utilizing modular lithium battery modules installed in standard racks, users can quickly scale storage capacity while maintaining a compact footprint.
This design makes the system ideal for commercial energy storage, telecom infrastructure, data centers, hybrid solar installations, and industrial backup applications.
Whether you need a reliable rack mount battery system for a server room or a scalable rack battery storage solution for a microgrid, the GRHV platform delivers a flexible, space-efficient, and easy-to-service alternative to traditional enclosures
Inverter Compatibility
The GRHV High Voltage Battery System supports integration with many leading inverter manufacturers through CAN and RS485 communication protocols.
Compatible brands commonly include: Deye, Growatt, Sol-Ark, GoodWe, Sungrow, LuxPower, Victron Energy. Compatibility verification is available before ordering
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Modular Scalable Architecture (96.5–209kWh) | Flexible system sizing from small commercial to large industrial projects. Hot-swappable modules simplify maintenance and future expansion without replacing infrastructure. |
| Premium LiFePO4 Cells with 6000 Cycles | Exceptional thermal stability, higher safety, and 10+ years of service life under daily cycling, dramatically lowering total cost of ownership. |
| Intelligent BMS with Automatic Balancing | Continuously monitors voltage, current, temperature, SOC, and SOH. Maximizes usable capacity and ensures cell consistency for reliable long-term operation. |
| Cloud-Based Remote Monitoring (WiFi, Bluetooth, CAN, RS485) | 24/7 access to real-time status, historical data, alarm notifications, and remote diagnostics from anywhere, reducing on-site maintenance costs. |
| Triple-Layer Safety Protection (Relay + Relay + Breaker) | Redundant multi-level protection against overcharge, over-discharge, overcurrent, short circuit, and overtemperature, ensuring operational safety in demanding environments. |
Technical Specifications
| Parameter | EG-HV96C | EG-HV112C | EG-HV128C | EG-HV144C | EG-HV160C | EG-HV176C | EG-HV192C | EG-HV209C |
|---|---|---|---|---|---|---|---|---|
| Battery Module Qty in Series | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
| System Nominal Voltage (V) | 307.2 | 358.4 | 409.6 | 460.8 | 512.0 | 563.2 | 614.4 | 665.6 |
| System Operating Min. Voltage (V) | 268.8 | 313.6 | 358.4 | 403.2 | 448.0 | 492.8 | 537.6 | 582.4 |
| System Operating Max. Voltage (V) | 345.6 | 403.2 | 467.2 | 518.4 | 576.0 | 633.6 | 691.2 | 748.8 |
| System Energy (kWh) | 96.5 | 112.5 | 128.6 | 144.7 | 160.8 | 176.8 | 192.9 | 209.0 |
| System Usable Energy (kWh) | 91.6 | 106.9 | 122.2 | 137.5 | 152.7 | 168.0 | 183.3 | 198.5 |
| Recommend Charge/Discharge Current (A) | 150/150 | 150/150 | 150/150 | 150/150 | 150/150 | 150/150 | 150/150 | 150/150 |
| Max Charge/Discharge Current (A) | 200/200 | 200/200 | 200/200 | 200/200 | 200/200 | 200/200 | 200/200 | 200/200 |
| Peak Discharge (3S, 25°C) (A) | 220/220 | 220/220 | 220/220 | 220/220 | 220/220 | 220/220 | 220/220 | 220/220 |
| Dimensions W×D×H (mm) | 840×590×2095 | 776×552×1282 | 776×552×1588 | 776×552×1894 | 840×1190×2095 | 776×552×1282 | 776×552×1588 | 776×552×2200 |
| Weight Approx. (kg) | 867.5 | 989.5 | 1111.5 | 1233.5 | 1355.5 | 1477.5 | 1599.5 | 1721.5 |
| Common Specifications | (All Models) |
|---|---|
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | 6000 cycles @ 25°C, 0.5C/0.5C, EOL 70% |
| Recommend Depth of Discharge | ≤95% |
| Communication Ports | RS485 / CAN / WiFi / Bluetooth |
| Installation | 19-inch Standard Rack Mounting |
| Working Temperature | Charge: 0~55°C / Discharge: -20~55°C |
| Storage Temperature | 0~35°C |
| Protection | Triple Protection (Positive Relay + Negative Relay + Breaker) |
| Cooling | Natural Cooling / Fan Cooling |
| IP Rating | System: IP22 / Module: IP20 |
| Certifications | UN38.3, CE, CE-EMC, IEC 62619 |
| Altitude | ≤3000m |
| Humidity | 5% ~ 80% RH |
| Single Cluster Rack Size (W×D×H) | 840 × 590 × 2095 mm |
| Single Cluster Rack Weight | 118 kg |
| Max Battery Units per Single Cluster | 6 |
| Max Battery Units per Two Clusters | 13 |
| Battery Pack Module: | SR-HOF16B |
|---|---|
| Battery Type | LiFePO4 |
| Battery Energy | 16.08 kWh |
| Rated Voltage | 51.2 V |
| Rated Capacity | 314 Ah |
| Recommend Charge/Discharge Current | 150A / 150A |
| Max Charge/Discharge Current | 200A / 200A |
| Peak Discharge (3S, 25°C) | 220A |
| Cycle Life | 6000 cycles @ 25°C |
| Dimensions (W×D×H) | 750 × 504 × 253 mm |
| Weight | Approx. 120 kg |
| PDU Module: | SR-PDU200C |
|---|---|
| Rated Voltage | 850 V |
| Rated Current | 250 A |
| Breaker Rating | 300 A |
| Relay Rating | 250 A |
| LCD Screen | 4.3 inch |
| Dimensions (W×D×H) | 608 × 504 × 253 mm |
| Weight | Approx. 17.5 kg |
Applications
Commercial & Industrial Rack Battery Storage
The GRHV system helps businesses reduce energy costs through peak shaving, load shifting, demand charge management, and emergency backup power. Ideal for factories, warehouses, office buildings, shopping centers, hotels, and manufacturing facilities

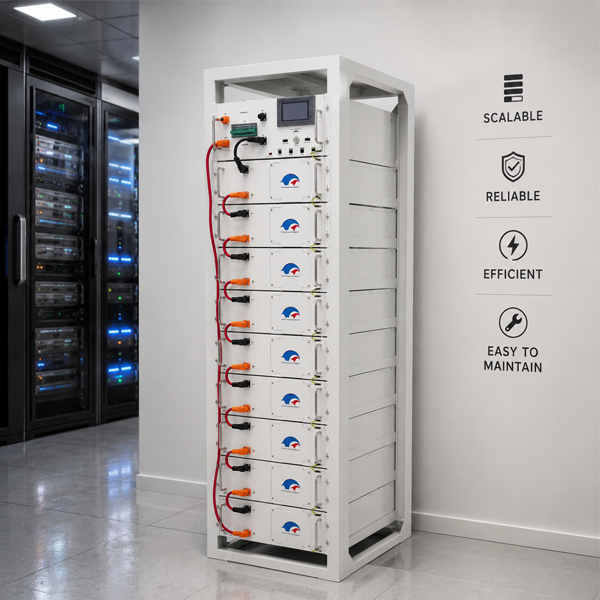

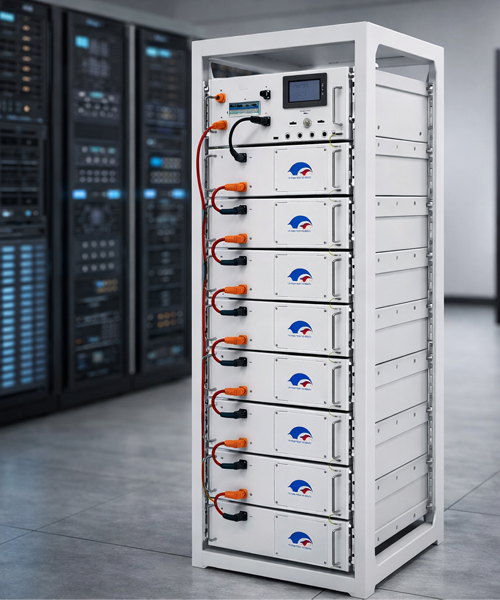

Server Rack LiFePO4 Battery Backup for Data Centers & Telecom
Leveraging the standard 19-inch rack-mount design, the system provides reliable, high-density backup power for critical IT infrastructure, data centers, telecom sites, and server rooms, ensuring uninterrupted operation during grid outages.

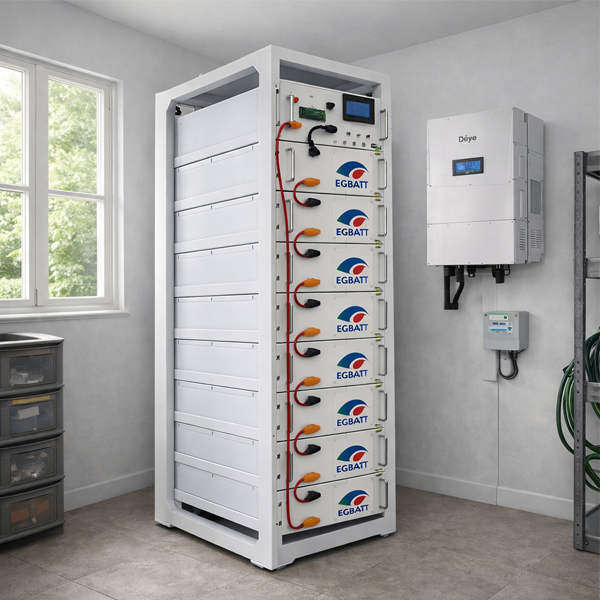

High Voltage Solar Rack Battery System for Residential & Off-Grid
The modular high-voltage architecture enhances solar ROI, reduces grid dependency, and delivers whole-home backup capability. Also perfectly suited for remote agricultural sites, mining operations, island power systems, and rural electrification projects

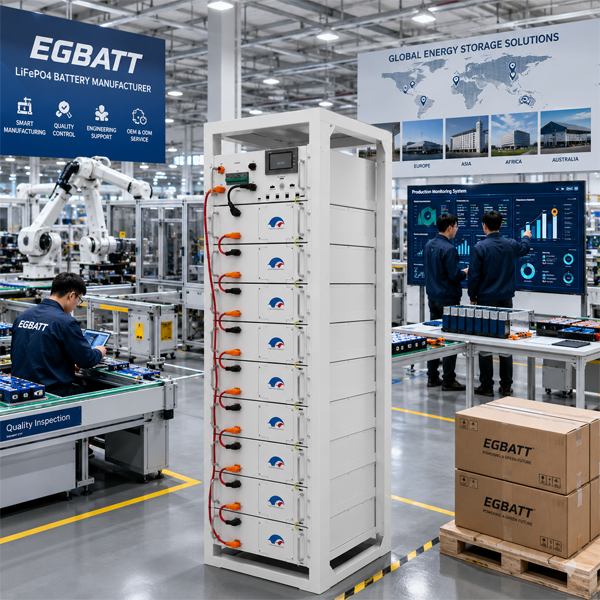

Why Choose EGBATT?
As a professional LiFePO4 battery manufacturer, EGBATT provides complete in-house design, assembly, testing, and quality control to ensure every battery system delivers outstanding safety, reliability, and long-term performance.
Key Advantages
- Factory-direct pricing
- OEM & ODM customization
- Engineering support
- Global project experience
- Strict quality inspection
- Fast delivery
- Responsive technical assistance
EGBATT works closely with EPC contractors, solar installers, distributors, and energy storage integrators around the world.
Backed by extensive project experience, our team provides technical guidance, system integration support, and customized battery solutions for residential, commercial, industrial, telecom, and utility-scale energy storage projects.
From initial design to final deployment, we help customers achieve reliable performance, seamless integration, and long-term operational value.
FAQ
A high-voltage battery system operates at elevated DC voltages, improving efficiency, reducing current losses, and simplifying system design compared with low-voltage battery banks.
High voltage rack battery systems reduce current, minimizing cable losses and heat generation. They allow for simpler, more cost-effective installation, higher inverter efficiency, and better scalability for systems above 10kWh, making them ideal for whole-home backup and commercial projects
The system is rated for up to 6000 cycles and can provide more than 10 years of service under normal operating conditions.
Yes. The modular rack-mount architecture allows future expansion as energy storage requirements increase.
Absolutely. The GRHV series is specifically designed for solar energy storage, hybrid systems, and commercial ESS deployments. It serves as an excellent high voltage solar rack battery system.
Yes. The GRHV system's 19-inch modular rack-mount design is ideal for solar server rack battery setups, commercial data center UPS backup, and any application requiring a high-density, scalable, rack-based energy storage solution.
Yes. The GRHV high voltage battery system supports CAN/RS485 communication with most leading high-voltage inverters, including Deye, Growatt, Sol-Ark, and Sungrow. Pre-sales compatibility verification is provided for a seamless setup.
The system supports CAN, RS485, WiFi, and Bluetooth communication interfaces.
Available certifications include UN38.3, CE, CE-EMC, and IEC62619
Send Inquiry:
Looking for a reliable GRHV server rack mounted high-voltage energy storage solution for your next project?
Contact EGBATT today for:
- Custom system design
- OEM & ODM solutions
- Project consultation
- Technical support
- Distributor pricing
- Bulk order quotations
Product & Packaging Details
Q: Do batteries include protection circuits（BMS) and connectors?
A:Protection: We supply batteries with BMS built in Protection Circuit Modules (PCM).
Connectors: We normally use standard like anderson,M8 lugs,Fast plugs or depends on OEM customer's demends.
Q: Are batteries Grade-A and brand new?
A: Yes, we use 100% brand new, Grade-A cells in all our batteries.
Q: Can you print our logo on the batteries?
A: Yes, we offer free custom logo printing with a minimal MOQ requirement.
Q: What is your standard packaging? Can it be customized?
A: Our standard is a white box per battery. We fully support customized packaging, including carton box and logo design.
Yes. EGbatt is a manufacturer located in Shenzhen, Guangdong, China. It designs and produces LiFePO4 battery packs for energy storage, electric forklifts, marine applications, golf carts, RVs, and UPS systems.
Based on automated production technology, the current product lead time is 15-25 days.
The company has strategic cooperation agreements with top manufacturers like EVE and REPT, and insists on using A+ tier One lithium iron phosphate cells for its solar batteries.
For 48V inverters, compatible brands include Victron Energy, Goodwe, Studer, Solis, LuxPower, and others. For high-voltage three-phase inverters, compatible brands include Atess, Solinteg, SAJ, Goodwe, and Solis.
EGbatt offers dealer customers a 10-year warranty and technical service for its energy storage battery products.
DoD describes how much of the battery's capacity has been used. A DoD of 100% means the battery is completely empty, while 0% means it is full.
SoC reflects the battery's charge level. A SoC of 100% means the battery is full, and 0% means it is empty.
C-rate, or power factor, indicates how quickly a battery can be charged or discharged relative to its capacity. A rating of 1C means the battery can be fully charged or discharged in one hour.
The battery uses Lithium Iron Phosphate chemistry and provides a cycle life of over 6,000 cycles at 90% Depth of Discharge, and over 10 years at one cycle per day.
kW (kilowatt) is a unit of power, measuring the rate of energy production or consumption. kWh (kilowatt-hour) is a unit of energy, measuring the total amount of work done or energy used over time.
EGbatt home batteries are suitable for both indoor and outdoor installation (depending on the model's protection level) and offer floor-standing or wall-mounted options. Common locations include garages, attics, or under eaves.
This depends on the load. As a realistic example, a 10kWh battery could run ten 100-watt light bulbs for 12 hours without recharging.
The number varies based on home size, energy consumption history, and personal goals (like which devices to run during an outage). For most systems, 2 or 3 batteries are installed. A detailed discussion of your needs is recommended for an accurate assessment.
Yes, it is possible, but it requires careful planning and significant investment. A true off-grid system needs a large enough solar array and sufficient battery storage to sustain your lifestyle. Cost and having an alternative energy source for when solar charging isn't possible are key considerations.
No. EGbatt focuses on building long-term relationships with business partners like battery distributors, solar equipment dealers, and installation contractors worldwide, not direct sales to end consumers.
