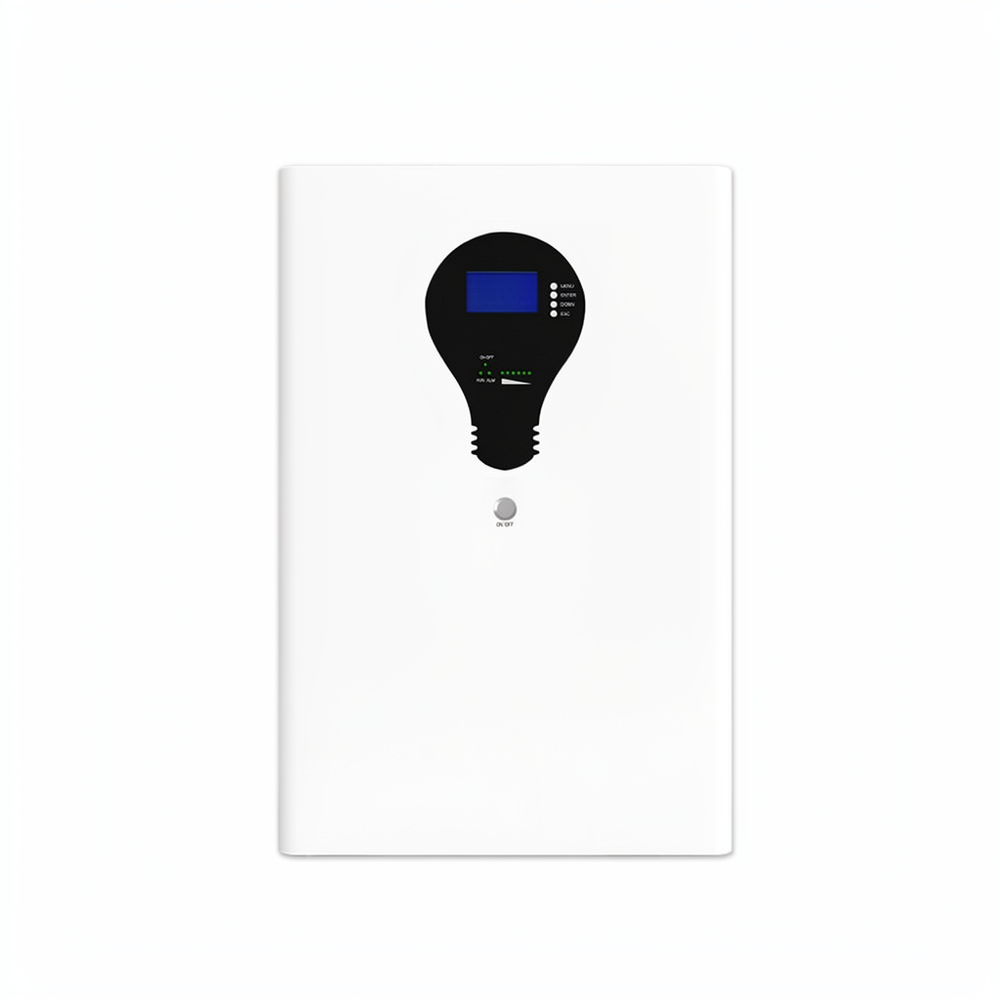

CMX 51.2V 100Ah 5kWh LiFePO4 Battery with LCD Display

The CMX 51.2V 100Ah 5kWh LiFePO4 Battery with LCD Display is a LiFePO4 battery for home and residential energy storage featuring built-in LCD monitoring. Engineered for long service life, a protected smart BMS, and safe, low-maintenance operation.

51.2V · 100Ah · 5kWh usable
6000+ cycle life · 5-year warranty
Long lifespan: 6000+ cycles with 5 years warranty
Efficient performance: 100A Smart BMS, 1C charge & discharge rate

SKU: CMX2107583FS Category: Home Lithium Battery

Description

Overview

The CMX 51.2V 100Ah 5kWh LiFePO4 Battery with LCD Display is a LiFePO4 (lithium iron phosphate) battery built for home and residential energy storage. It delivers 5kWh of usable energy · at 51.2V · with a rated 100Ah capacity, combining a long cycle life, a fully protected smart BMS, and a compact, space-saving design into a safe, maintenance-light energy storage solution. CMX uses automotive-grade LiFePO4 cells and a self-developed BMS so the pack stays balanced, efficient, and protected across its whole service life.

Key Features

Long lifespan: 6000+ cycles with 5 years warranty
Efficient performance: 100A Smart BMS, 1C charge & discharge rate
Convenient display: LCD screen for easy monitoring
Maximum usability: 100% usable energy
Expandable capacity: Connect up to 15 units in parallell
Compatibility: Works seamlessly with all mainstream inverters

Technical Specifications

Nominal Voltage	51.2V
Nominal Capacity	100Ah
Usable Energy	5kWh
Battery Chemistry	LiFePO4 (lithium iron phosphate)
Monitoring	Built-in LCD display
Cycle Life	6000+ cycles with 5 years warranty
Warranty	6000+ cycles with 5 years warranty
Certifications	UL 1973, IEC 62619, UN 38.3, CE, and RoHS
OEM/ODM	Custom voltage, capacity, and enclosure available

Full mechanical drawings, dimensions, weight, and discharge curves are available in the downloadable datasheet — contact CMX for the complete specification.

Application Scenarios

This LiFePO4 pack is suited to whole-home backup power, daily solar self-consumption, and off-grid cabins. It pairs with mainstream hybrid and off-grid inverters and scales from a single unit to parallel banks, making it a flexible choice for both first-time installs and capacity upgrades.

Why Choose Shenzhen CMX Battery Co., Ltd.

Shenzhen CMX Battery Co., Ltd. is a 9+ year LiFePO4 battery manufacturer with an annual cell-and-pack capacity of 5.8 GWh and an in-house factory in Tangxia, Dongguan, China. We provide OEM/ODM for voltage, capacity, BMS, and enclosure, and every pack ships with certified cells (UL 1973, IEC 62619, UN 38.3, CE, and RoHS). Our engineering team supports system sizing, standard BMS communication, and global compliance so integrators and distributors can deploy with confidence.

FAQ

Can this battery connect to my existing hybrid inverter?

Yes. CMX LiFePO4 packs communicate over CAN/RS485 and work with mainstream hybrid and off-grid inverters. Share your inverter model and we will confirm the protocol.

How many units can I connect in parallel?

Most residential wall-mounted and rack units support parallel expansion for higher capacity. The exact limit depends on the model — see the datasheet or ask our team.

What does the warranty cover?

CMX provides a 5-year factory warranty on the battery pack; cycle life is rated at 6000+ cycles under standard conditions.

Get a Quote & Datasheet

Need pricing, lead time, or the full specification for the CMX 51.2V 100Ah 5kWh LiFePO4 Battery with LCD Display? Our team replies with a quote, OEM/ODM options, and the downloadable datasheet. You can also reach us at sales@cmxbattery.com.

Measured on our bench: this class delivers above its label

Packs of this class are capacity-checked on our own production test bench under the plant standard procedure: charged to the constant-voltage limit, rested, then discharged at a constant current toward a 2.50 V per cell cutoff. A 51.2 V 100 Ah pack measured on this bench delivered 117.7 Ah, or 117.7% of the 100 Ah nameplate. The over-delivery is by design, not a fault: the cells installed in this build are graded above the 100 Ah rating (over-capacity cells), so real capacity runs above the label rather than below it. On all five of our platform test runs the pack’s own protection ended the discharge first, at 2.59 to 2.74 V per cell, so the bench cutoff was never reached. The amp-hours shown are the amp-hours above the protection threshold.

See our capacity verification guide for the full method, the cross-pack table, and how to read a capacity rating before you commit.
