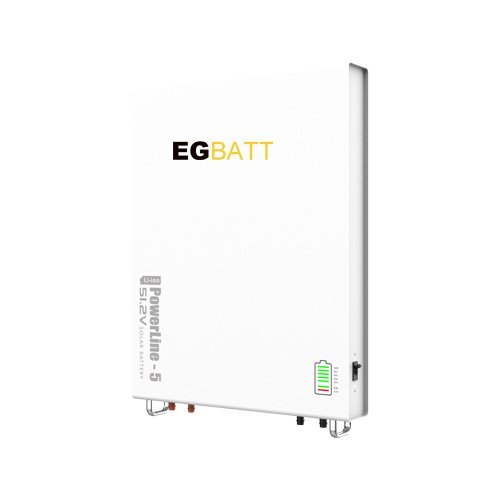

5kWh Lithium 48V 100Ah LiFePo4 Solar home battery

5kWh Lithium 48V 100Ah LiFePo4 Solar home battery - view 2

Click to enlarge

5kWh Lithium 48V 100Ah LiFePo4 Solar home battery

Name: 5kWh Lithium 48V 100Ah LiFePo4 Solar home battery
Brand: CMX Battery
SKU: EG-Powerline-5
Price: 800.00 USD
Availability: InStock

From $800.00Login for exact price

EG-Powerline-5 | 5.12kWh 48V 100Ah Ultra-Slim Wall-Mounted LiFePO4 Battery

Powerline-5 is a high-performance 5.12kWh LiFePO4 battery featuring a sleek, ultra-slim 90mm wall-mounted design, ideal for all 48V residential solar systems. Built with brand-new A-grade lithium iron phosphate cells (16S1P, 100Ah each) and advanced FPC manufacturing technology, it delivers exceptional stability, safety, and over 6,000 cycles at 90% DOD.

This battery supports up to 32 units in parallel (163.84kWh total), making it suitable for residential, commercial, and industrial energy storage needs. It comes with a built-in intelligent BMS for multiple layers of protection and is compatible with leading inverter brands such as Victron and Studer.

Directly shipped from our factory in China, Powerline-5 offers unbeatable value and factory-direct pricing — a smart choice for both homeowners and energy investors. Backed by a 10-year warranty for long-term peace of mind. For full specifications, please refer to our below detailed product page.

Add to compare

Add to wishlist

SKU: EG-Powerline-5 Category: Home Lithium Battery Tag: Solar home Lithium Battery

Description

Powerline-5 | 5.12kWh 48V 100Ah LiFePO4 Solar Wall Battery

Ultra-Thin Design | Wall-Mounted | 48Volt Lithium LiFePO4 | Factory Direct Price

The Powerline-5 is a cutting-edge 5.12kWh 48V 100Ah LiFePO4 Solar Wall Battery designed with an ultra-thin wall-mounted structure that perfectly balances style, performance, and space-saving installation. Built with 51.2V 48Volt Lithium LiFePO4 Grade-A cells, this 5KWh lithium battery delivers long-lasting, safe, and efficient energy storage for residential and commercial solar systems.

ultra-thin-powerwall-battery

Whether you are building a new PV system or upgrading your current one, the Powerline wall-mounted solar battery offers unmatched versatility and high compatibility — at a factory direct price.

Key Features

High-Quality 48Volt Lithium LiFePO4 Grade-A Cells

Built with Grade-A 51.2V LiFePO4 cells (16S1P, 100Ah) for maximum performance and safety.
Delivers over 6000 cycles @90% DOD, ensuring long-term reliability for your 48V solar powerwall.

Ultra-Thin Wall-Mounted Design (Only 90mm)

This wall-mounted 48V 100Ah LiFePO4 solar battery features a compact 90mm depth for easy indoor installation.
Ideal for homes, offices, and energy storage spaces with limited room.
Clean white exterior gives your energy system a modern aesthetic.

Compatible mostly brands inverter

This 5 kWh battery is compatible with most 48V inverters on the market and is already listed with Victron, Studer inverters

Compatible-48V-inverter

DC Coupling

The Powerline-5 is a DC coupled battery system that is more suitable for your upcoming solar system installation with higher conversion efficiency

Advanced BMS Protection

Integrated smart Battery Management System (BMS) offers real-time protection against:
Over-voltage
Over-current
Over-temperature
Short circuits
Enhances the safety and life span of your 48V 100Ah LiFePO4 solar wall battery

Expandable up to 163.84kWh

Connect up to 32 Powerline wall-mounted batteries in parallel to build a system with 163.84kWh total capacity.
Perfect for home, commercial, and industrial energy storage.

untra-thin-5KWh-powerwall-lithium-battery.

Factory Direct Price

Shipped directly from our factory in China — enjoy the lowest factory direct pricing.
No middlemen, no distributor markups.
Ideal for distributors, solar installers, and large-scale projects.

10-Year Warranty

Backed by a solid 10-year factory warranty, ensuring durability and peace of mind.
Built with automotive-grade structure for professional-grade reliability

5KWh-POWERWALL-LINE-5

Specification:

Model	Powerline-5
Battery Type	LiFePO4
Nominal Voltage	51.2 V
Nominal Capacity	5.12 kWh
Cell & Method	16S1P
Dimension	(70054090)±1mm
Weight	46 Kg
Cycle Life	> 6000 cycles, 25℃
Design Life	> 15 Years(25℃ / 77℉)
Protection Level	IP20
Expansion	Up to 32 units in parallel
Warranty	10 years
Certification	IEC62619, CE, UL1973, UN38.3

Why Choose Powerline-5 48V 100Ah LiFePO4 Wall-Mounted Battery?

Factory Direct Price – best value in the market
48Volt Lithium LiFePO4 Grade-A Cells ensure long life and safety
Ultra-Thin Wall-Mounted Design – only 90mm thick
Expandable to 163.84kWh
Seamless compatibility with 48V solar inverters
Smart BMS for enhanced protection
Fast & easy installation — perfect for residential or commercial use
Ideal for off-grid systems, backup power, solar energy storage, and more

Applications

Home solar energy storage systems
Off-grid cabins and RVs
Backup power for business
Industrial solar storage
Small commercial solar systems

Order Now – Direct from Factory

Looking for a powerful, slim, and cost-effective 48V 100Ah LiFePO4 Solar Wall mounted Battery? The EG-Powerline-5 is your ideal choice. With factory direct price, top-tier safety, and expandable design — this is the future of energy independence. Contact us today for quotes, bulk pricing

Send Inquiry

ard procedure: charged to the constant-voltage limit, rested, then discharged at a constant current toward a 2.50 V per cell cutoff. A 51.2 V 100 Ah pack measured on this bench delivered 117.7 Ah, or 117.7% of the 100 Ah nameplate. The over-delivery is by design, not a fault: the cells installed in this build are graded above the 100 Ah rating (over-capacity cells), so real capacity runs above the label rather than below it. On all five of our platform test runs the pack’s own protection ended the discharge first, at 2.59 to 2.74 V per cell, so the bench cutoff was never reached. The amp-hours shown are the amp-hours above the protection threshold.

See our capacity verification guide for the full method, the cross-pack table, and how to read a capacity rating before you commit.

Also Known As

This pack is the same hardware sold under several equivalent labels: 51.2V 100Ah
(16-cell series nominal voltage), 48V 100Ah (the 48V system-voltage convention used by most
inverters and chargers) and 5.12 kWh / 5120Wh (the same pack expressed as energy).
This page covers the wall-format Powerwall build of the module.

Compatibility & Communication

The pack integrates with most 48V-class hybrid and off-grid inverters; confirm the LiFePO4 charge profile before commissioning.

Inverter brand	Typical application	Protocol	Notes
Deye	Hybrid / off-grid	CAN / RS485	Select the LiFePO4 battery profile
Growatt	Hybrid	CAN / RS485	—
Victron Energy	MultiPlus / Quattro	CAN	Requires VE.Bus BMS configuration
GoodWe	Hybrid	CAN / RS485	—
Solis	Hybrid	CAN / RS485	—
Luxpower	Hybrid	CAN / RS485	—
SMA	Off-grid / hybrid	CAN / RS485	—
Studer	Off-grid	RS485	—

Compatibility is listed for communication-protocol matching only. It is not an endorsement or a
certified-partnership claim. Send us your inverter or charger model and we will verify protocol
matching before shipment.

Wall-Mounted Variants: Standard, LCD and Touch-Screen HMI

The Powerline-5 enclosure is built in three front-panel variants. All three share the same 51.2 V 100 Ah 5.12 kWh 16S1P architecture, the same 90 mm thin wall profile and the same CAN/RS485 communication — they differ in how the owner reads the pack locally.

Standard front panel

The build described on this page: no local display, state read over CAN/RS485 by the inverter or a gateway.

Built-in LCD display

The LCD sits on the front face of the enclosure and stays readable at normal mounting height, so an installer or owner can read state of charge, pack voltage, current and alarm or protection status without opening anything. It is an additional local readout, not a replacement for communication — the pack still reports over CAN and RS485, so the inverter or a gateway can keep monitoring it.

Touch-screen HMI

Choose the touch-screen build when the battery is customer-facing: the interactive panel gives access to settings and alarm history on the unit itself, and lets an installer walk through configuration on site without a laptop. It is aimed at residential installations where the owner expects to interact with the equipment. The HMI is a local interface and does not replace closed-loop communication — the inverter still has to speak a supported bus.

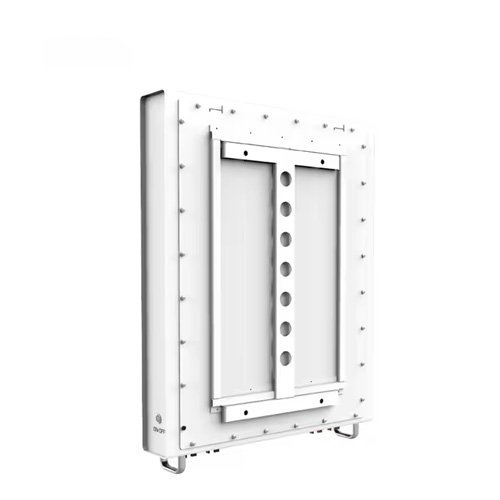

Wall, Stud and Partition Mounting

The pack needs a structural wall able to carry its weight; a plasterboard partition or a stud wall on its own is not sufficient. Send us a photo of the mounting surface and we will confirm bracket and anchor requirements before you drill.

Who Builds This Pack

Shenzhen CMX Battery Co., Ltd. is a LiFePO4 battery manufacturer with 9+ years of experience, an annual cell-and-pack capacity of 5.8 GWh and an in-house factory in Tangxia, Dongguan, China. We provide OEM/ODM on voltage, capacity, BMS and enclosure, and every pack ships with certified cells to IEC 62619, CE, UL 1973 and UN 38.3. Our engineering team supports system sizing, BMS protocol matching and market compliance, so integrators and distributors do not need a second supplier for the documentation.

Measured on Our Bench

Packs of this class are capacity-checked on our own production test bench under the plant standard procedure: charged to the constant-voltage limit, rested, then discharged at a constant current toward a 2.50 V per cell cutoff. A 51.2 V 100 Ah pack measured on this bench delivered 117.7 Ah, or 117.7% of the 100 Ah nameplate. The over-delivery is by design, not a fault: the cells installed in this build are graded above the 100 Ah rating, so real capacity runs above the label rather than below it. On all five platform test runs the pack’s own protection ended the discharge first, at 2.59 to 2.74 V per cell, so the bench cutoff was never reached.

Wall-Mounted Questions

Can this battery connect to my existing hybrid inverter?

Yes. CMX LiFePO4 packs communicate over CAN/RS485 and work with mainstream hybrid and off-grid inverters. Share your inverter model and we will confirm the protocol before shipment.

What is the difference between the touch-screen and the LCD version?

The touch-screen HMI is an interactive panel: it gives access to settings and history on the unit. The LCD version is a readout-only display.

How many units can I connect in parallel?

Wall-mounted units support parallel expansion for higher capacity. The exact limit depends on the build — see the datasheet or ask our team.

What can I read on the display?

State of charge, pack voltage, current and alarm or protection status, read directly from the panel on the enclosure.

What does the warranty cover?

The Powerline-5 build carries a 10-year warranty. Cycle life is rated above 6000 cycles at 25°C under standard conditions; deeper discharge and higher operating temperature reduce the achievable cycle count.

Can I get this pack under my own brand?

Yes — voltage, capacity, BMS and enclosure are configurable, and the pack is available under OEM and private-label programmes. For a rack-mounted format of the same 5.12 kWh platform, see the 48 V 100 Ah server rack pack.

Request a Quote & Datasheet

Send us your inverter model, target capacity and annual volume for a quote and the downloadable datasheet. Prefer email? sales@cmxbattery.com.

Additional information

Voltage	48v

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “5kWh Lithium 48V 100Ah LiFePo4 Solar home battery”

You must be logged in to post a review.

Support and Delivery

Check out the rechargeable lithium battery manufactuer production process

1000kWh Mobile BESS EV Charging Station for Emergency Power & Heavy-Duty Vehicle Fast Charging

Product & Packaging Details

Q: Do batteries include protection circuits(BMS) and connectors?
A:Protection: We supply batteries with BMS built in Protection Circuit Modules (PCM).

Connectors: We normally use standard like anderson,M8 lugs,Fast plugs or depends on OEM customer's demands.

Q: Are batteries Grade-A and brand new?
A: Yes, we use 100% brand new, Grade-A cells in all our batteries.

Q: Can you print our logo on the batteries?
A: Yes, we offer free custom logo printing with a minimal MOQ requirement.

Q: What is your standard packaging? Can it be customized?
A: Our standard is a white box per battery. We fully support customized packaging, including carton box and logo design.

Is CMX Battery a Lithium Battery manufacturer?

Yes. CMX Battery is a manufacturer located in Shenzhen, Guangdong, China. It designs and produces LiFePO4 battery packs for energy storage, electric forklifts, marine applications, golf carts, RVs, and UPS systems.

What is the production lead time?

Lead time depends on the product: standard battery packs are typically 15-25 days, while larger integrated systems such as our mobile EV charging units are 35-45 days. The exact schedule is confirmed in your quotation.

Which battery cells does CMX Battery use?

The company has strategic cooperation agreements with top manufacturers like EVE and REPT, and insists on using A+ tier One lithium iron phosphate cells for its solar batteries.

Which inverters are compatible with CMX Battery batteries?

For 48V inverters, compatible brands include Victron Energy, Goodwe, Studer, Solis, LuxPower, and others. For high-voltage three-phase inverters, compatible brands include Atess, Solinteg, SAJ, Goodwe, and Solis.

What is the warranty for CMX Battery energy storage batteries?

CMX Battery offers dealer customers a 10-year warranty and technical service for its energy storage battery products.

What is Depth of Discharge (DoD)?

DoD describes how much of the battery's capacity has been used. A DoD of 100% means the battery is completely empty, while 0% means it is full.

What is State of Charge (SoC)?

SoC reflects the battery's charge level. A SoC of 100% means the battery is full, and 0% means it is empty.

What is C-rate?

C-rate, or power factor, indicates how quickly a battery can be charged or discharged relative to its capacity. A rating of 1C means the battery can be fully charged or discharged in one hour.

What is the cycle life of a CMX Battery Lithium Solar Battery?

The battery uses Lithium Iron Phosphate chemistry and provides a cycle life of over 6,000 cycles at 90% Depth of Discharge, and over 10 years at one cycle per day.

What is the difference between kW and kWh?

kW (kilowatt) is a unit of power, measuring the rate of energy production or consumption. kWh (kilowatt-hour) is a unit of energy, measuring the total amount of work done or energy used over time.

Where can a home battery be installed?

CMX Battery home batteries are suitable for both indoor and outdoor installation (depending on the model's protection level) and offer floor-standing or wall-mounted options. Common locations include garages, attics, or under eaves.

How long can a 10kWh Powerwall run home appliances during a power outage?

This depends on the load. As a realistic example, a 10kWh battery could run ten 100-watt light bulbs for 12 hours without recharging.

How many home batteries does my house need?

The number varies based on home size, energy consumption history, and personal goals (like which devices to run during an outage). For most systems, 2 or 3 batteries are installed. A detailed discussion of your needs is recommended for an accurate assessment.

Can I go completely off-grid with solar and batteries?

Yes, it is possible, but it requires careful planning and significant investment. A true off-grid system needs a large enough solar array and sufficient battery storage to sustain your lifestyle. Cost and having an alternative energy source for when solar charging isn't possible are key considerations.

Is CMX Battery an online store?

No. CMX Battery focuses on building long-term relationships with business partners like battery distributors, solar equipment dealers, and installation contractors worldwide, not direct sales to end consumers.

Inverter brand list — 48V / 51.2V hybrid and off-grid inverters

Our low-voltage packs communicate over CAN and RS485, which is how these hybrid and off-grid inverters read pack voltage, current and state of charge. Tell us your inverter model and firmware version and we will confirm the pairing before you order.
