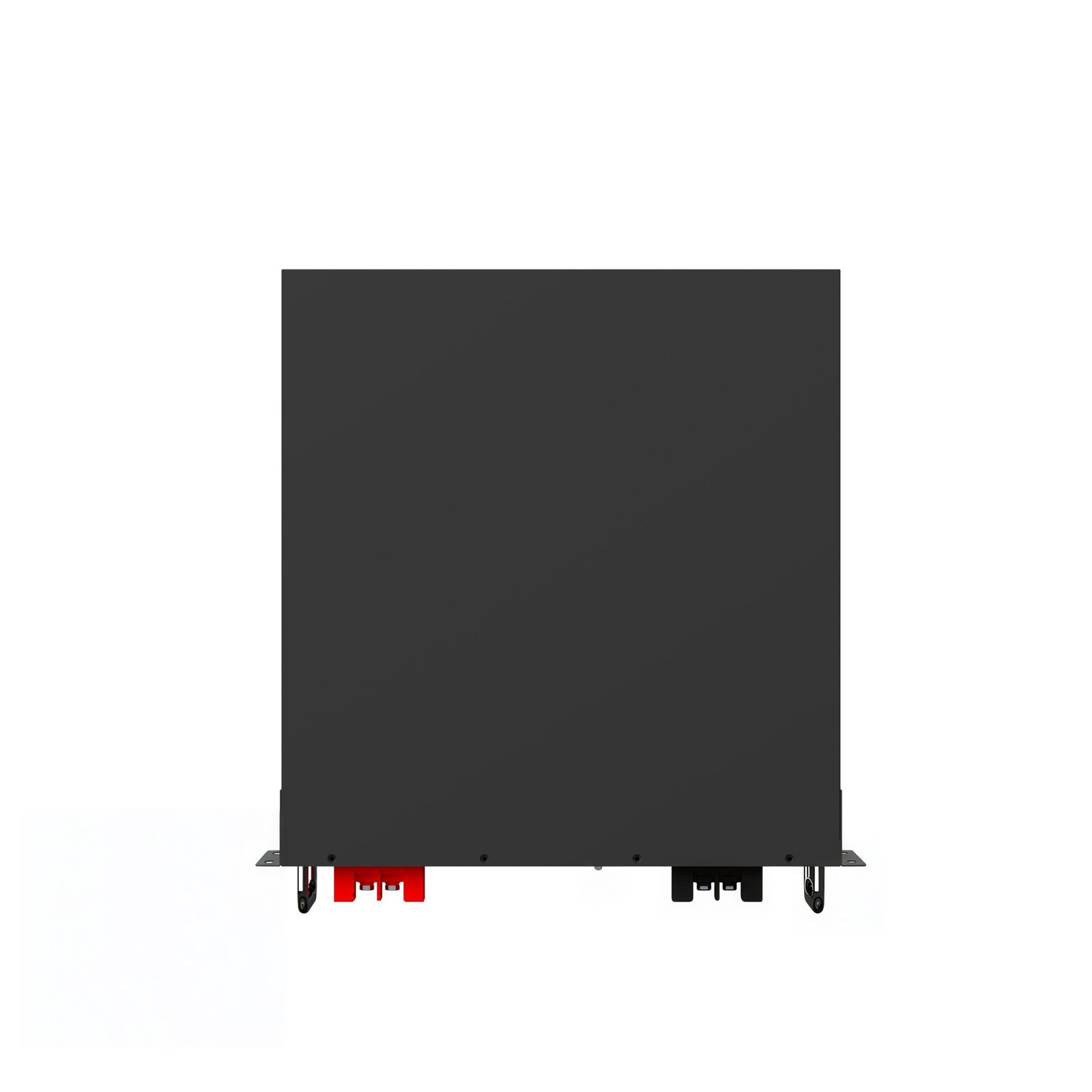

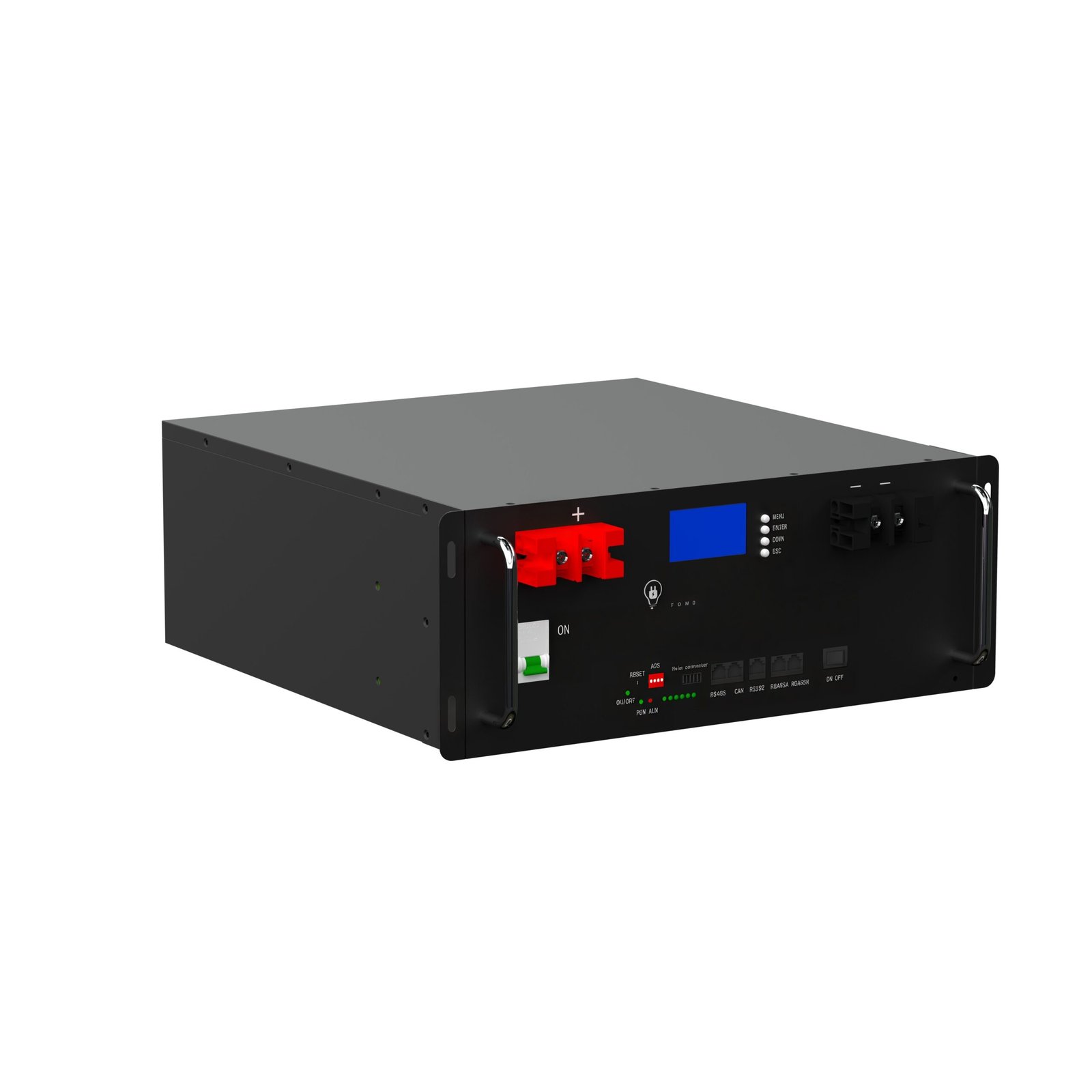

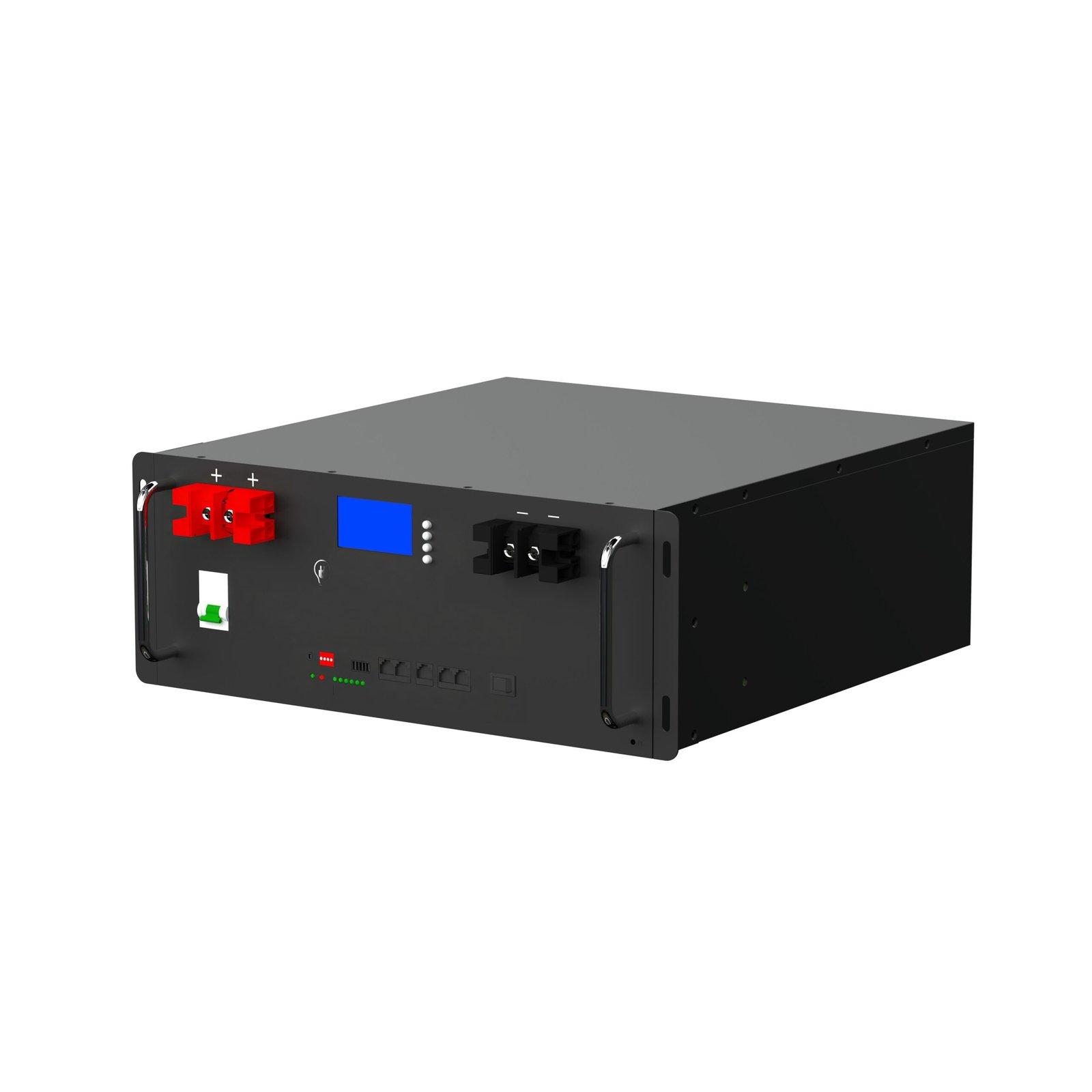

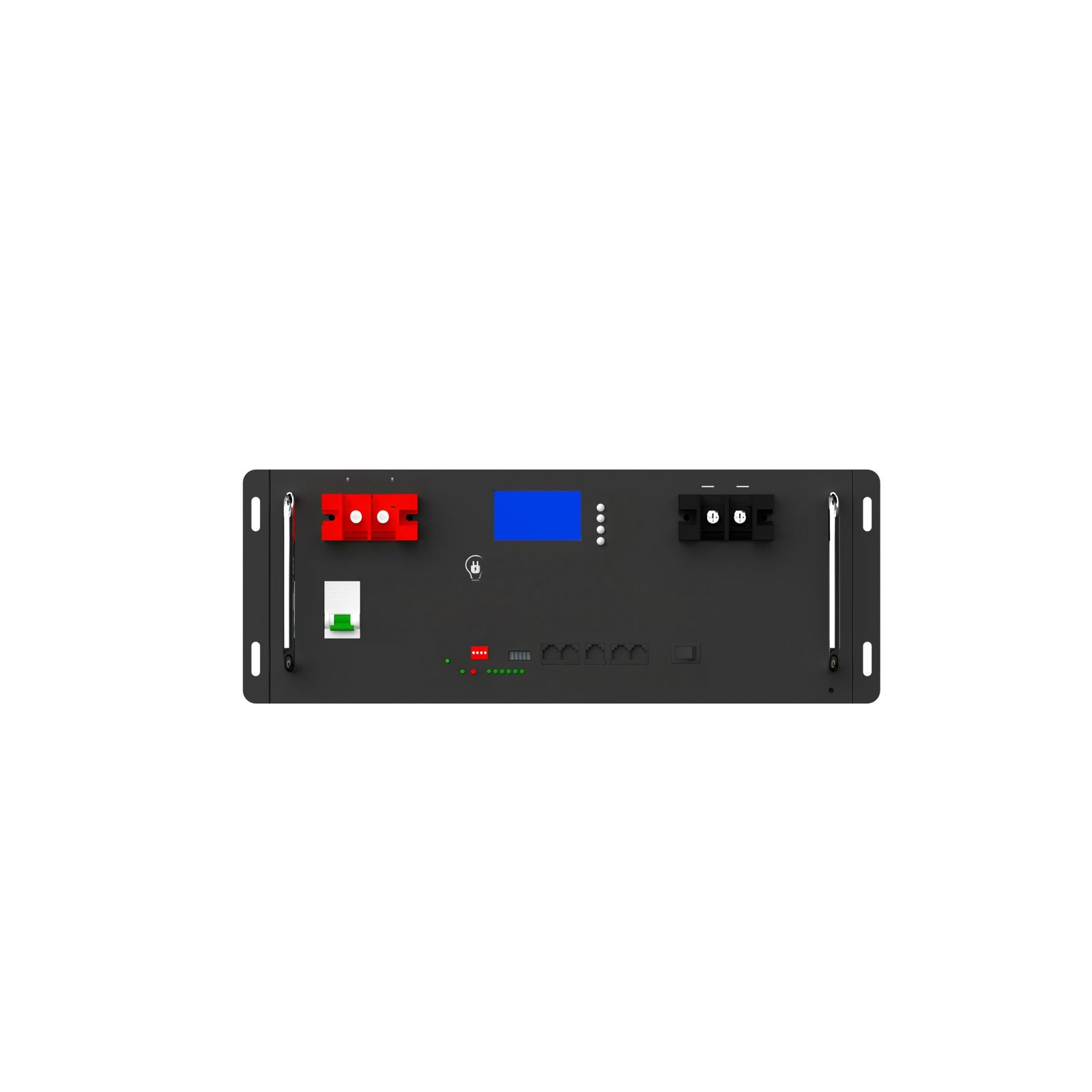

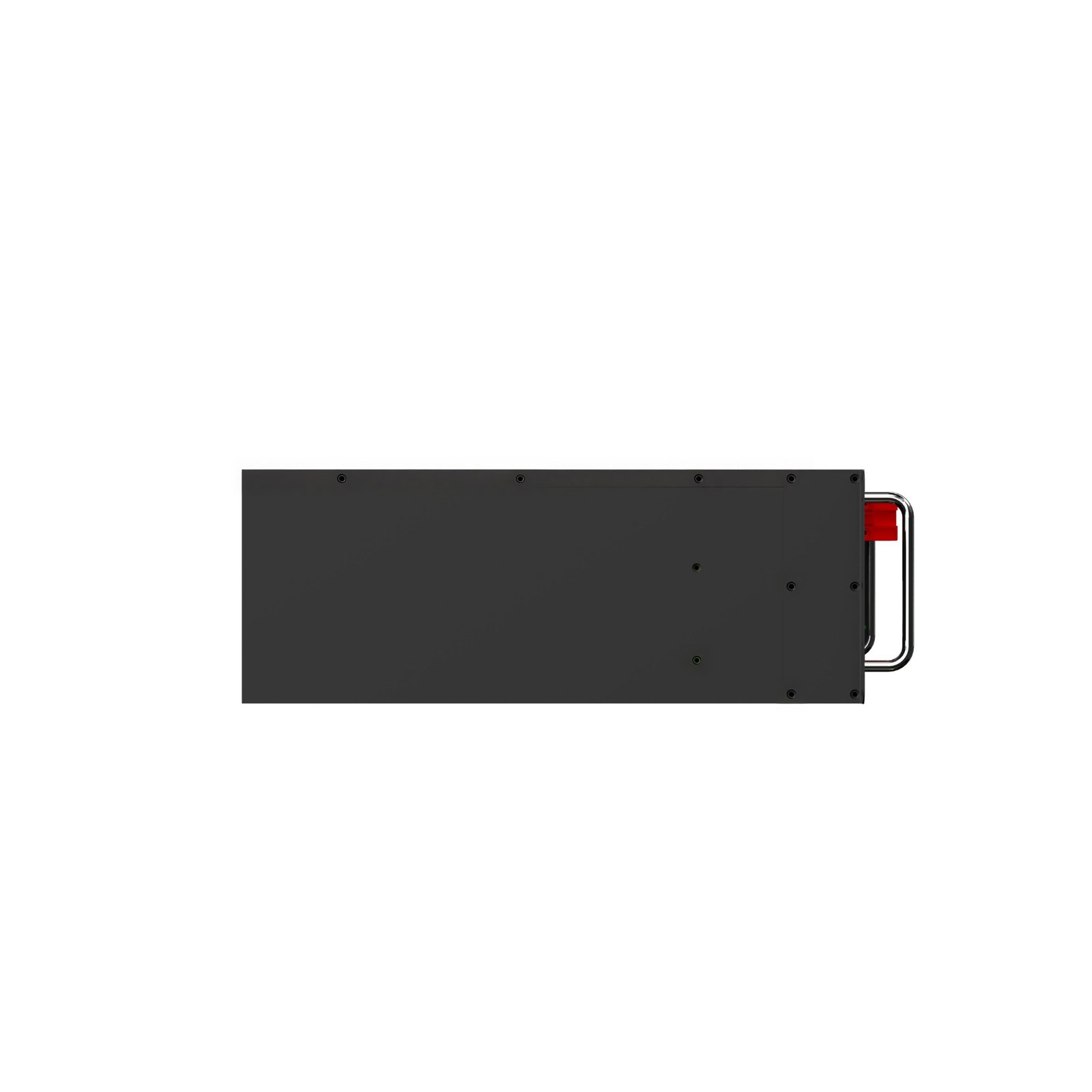

CMX 51.2V 100Ah 5kWh Rack-Mounted LiFePO4 Solar Battery
The CMX 51.2V 100Ah 5kWh Rack-Mounted LiFePO4 Solar Battery is a rack-mounted LiFePO4 battery for home and residential energy storage. Engineered for long service life, a protected smart BMS, and safe, low-maintenance operation.
- 51.2V · 100Ah · 5kWh usable
- 6000+ cycle life · 5-year warranty
- Long lifespan: 6000+ cycles with a 5/10years warranty
- Efficient performance: 100A Smart BMS, 1C charge & discharge rate
Overview
The CMX 51.2V 100Ah 5kWh Rack-Mounted LiFePO4 Solar Battery is a rack-mounted LiFePO4 (lithium iron phosphate) battery built for home and residential energy storage. It delivers 5kWh of usable energy · at 51.2V · with a rated 100Ah capacity, combining a long cycle life, a fully protected smart BMS, and a space-saving rack-mounted form factor into a safe, maintenance-light energy storage solution. CMX uses automotive-grade LiFePO4 cells and a self-developed BMS so the pack stays balanced, efficient, and protected across its whole service life.
Key Features
- Long lifespan: 6000+ cycles with a 5/10years warranty
- Efficient performance: 100A Smart BMS, 1C charge & discharge rate
- Convenient display: LCD screen for easy monitoring
- Maximum usability: 100% usable energy with 5.12KWh capacity
- Expandable capacity: Connect up to 15 units in parallell, expandable up to 76.8kWh
- Compatibility: Works seamlessly with all mainstream inverters
- Optional with anti-theft function
Technical Specifications
| Nominal Voltage | 51.2V |
|---|---|
| Nominal Capacity | 100Ah |
| Usable Energy | 5kWh |
| Battery Chemistry | LiFePO4 (lithium iron phosphate) |
| Cycle Life | 6000+ cycles with a 5/10years warranty |
| Warranty | 6000+ cycles with a 5/10years warranty |
| Certifications | UL 1973, IEC 62619, UN 38.3, CE, and RoHS |
| OEM/ODM | Custom voltage, capacity, and enclosure available |
Full mechanical drawings, dimensions, weight, and discharge curves are available in the downloadable datasheet — contact CMX for the complete specification.
Application Scenarios
This rack-mounted LiFePO4 pack is suited to whole-home backup power, daily solar self-consumption, and off-grid cabins. It pairs with mainstream hybrid and off-grid inverters and scales from a single unit to parallel banks, making it a flexible choice for both first-time installs and capacity upgrades.
Why Choose Shenzhen CMX Battery Co., Ltd.
Shenzhen CMX Battery Co., Ltd. is a 9+ year LiFePO4 battery manufacturer with an annual cell-and-pack capacity of 5.8 GWh and an in-house factory in Tangxia, Dongguan, China. We provide OEM/ODM for voltage, capacity, BMS, and enclosure, and every pack ships with certified cells (UL 1973, IEC 62619, UN 38.3, CE, and RoHS). Our engineering team supports system sizing, standard BMS communication, and global compliance so integrators and distributors can deploy with confidence.
FAQ
Can this battery connect to my existing hybrid inverter?
Yes. CMX LiFePO4 packs communicate over CAN/RS485 and work with mainstream hybrid and off-grid inverters. Share your inverter model and we will confirm the protocol.
How many units can I connect in parallel?
Most residential wall-mounted and rack units support parallel expansion for higher capacity. The exact limit depends on the model — see the datasheet or ask our team.
What does the warranty cover?
CMX provides a 5-year factory warranty on the battery pack; cycle life is rated at 6000+ cycles under standard conditions.
Get a Quote & Datasheet
Need pricing, lead time, or the full specification for the CMX 51.2V 100Ah 5kWh Rack-Mounted LiFePO4 Solar Battery? Our team replies with a quote, OEM/ODM options, and the downloadable datasheet. You can also reach us at sales@cmxbattery.com.
>
Measured on our bench: this class delivers above its label
Packs of this class are capacity-checked on our own production test bench under the plant standard procedure: charged to the constant-voltage limit, rested, then discharged at a constant current toward a 2.50 V per cell cutoff. A 51.2 V 100 Ah pack measured on this bench delivered 117.7 Ah, or 117.7% of the 100 Ah nameplate. The over-delivery is by design, not a fault: the cells installed in this build are graded above the 100 Ah rating (over-capacity cells), so real capacity runs above the label rather than below it. On all five of our platform test runs the pack’s own protection ended the discharge first, at 2.59 to 2.74 V per cell, so the bench cutoff was never reached. The amp-hours shown are the amp-hours above the protection threshold.
See our capacity verification guide for the full method, the cross-pack table, and how to read a capacity rating before you commit.
You must be logged in to post a review.
Product & Packaging Details
Q: Do batteries include protection circuits(BMS) and connectors?
A:Protection: We supply batteries with BMS built in Protection Circuit Modules (PCM).
Connectors: We normally use standard like anderson,M8 lugs,Fast plugs or depends on OEM customer's demends.
Q: Are batteries Grade-A and brand new?
A: Yes, we use 100% brand new, Grade-A cells in all our batteries.
Q: Can you print our logo on the batteries?
A: Yes, we offer free custom logo printing with a minimal MOQ requirement.
Q: What is your standard packaging? Can it be customized?
A: Our standard is a white box per battery. We fully support customized packaging, including carton box and logo design.
Yes. CMX Battery is a manufacturer located in Shenzhen, Guangdong, China. It designs and produces LiFePO4 battery packs for energy storage, electric forklifts, marine applications, golf carts, RVs, and UPS systems.
Based on automated production technology, the current product lead time is 15-25 days.
The company has strategic cooperation agreements with top manufacturers like EVE and REPT, and insists on using A+ tier One lithium iron phosphate cells for its solar batteries.
For 48V inverters, compatible brands include Victron Energy, Goodwe, Studer, Solis, LuxPower, and others. For high-voltage three-phase inverters, compatible brands include Atess, Solinteg, SAJ, Goodwe, and Solis.
CMX Battery offers dealer customers a 10-year warranty and technical service for its energy storage battery products.
DoD describes how much of the battery's capacity has been used. A DoD of 100% means the battery is completely empty, while 0% means it is full.
SoC reflects the battery's charge level. A SoC of 100% means the battery is full, and 0% means it is empty.
C-rate, or power factor, indicates how quickly a battery can be charged or discharged relative to its capacity. A rating of 1C means the battery can be fully charged or discharged in one hour.
The battery uses Lithium Iron Phosphate chemistry and provides a cycle life of over 6,000 cycles at 90% Depth of Discharge, and over 10 years at one cycle per day.
kW (kilowatt) is a unit of power, measuring the rate of energy production or consumption. kWh (kilowatt-hour) is a unit of energy, measuring the total amount of work done or energy used over time.
CMX Battery home batteries are suitable for both indoor and outdoor installation (depending on the model's protection level) and offer floor-standing or wall-mounted options. Common locations include garages, attics, or under eaves.
This depends on the load. As a realistic example, a 10kWh battery could run ten 100-watt light bulbs for 12 hours without recharging.
The number varies based on home size, energy consumption history, and personal goals (like which devices to run during an outage). For most systems, 2 or 3 batteries are installed. A detailed discussion of your needs is recommended for an accurate assessment.
Yes, it is possible, but it requires careful planning and significant investment. A true off-grid system needs a large enough solar array and sufficient battery storage to sustain your lifestyle. Cost and having an alternative energy source for when solar charging isn't possible are key considerations.
No. CMX Battery focuses on building long-term relationships with business partners like battery distributors, solar equipment dealers, and installation contractors worldwide, not direct sales to end consumers.
