105kW/232kWh Liquid Cooling outdoor ESS | Factory Peak Shaving
From $30,600.00Login for exact price
Next-Gen Outdoor PV Energy Storage Solutions engineered for factories that demand more.
This 105kW+232kWh all-in-one New liquid-cooled design is the ultimate outdoor ESS built for industrial and commercial energy storage systems. With second-generation liquid cooling, IP65 protection, and 8000+ cycle life, it delivers unmatched efficiency, safety, and ROI.
Whether you’re targeting Factory Peak Shaving, renewable integration, or VPP participation, this system turns expensive peak power into affordable stored energy. Compact, weatherproof, and ready for plug-and-play deployment — it’s the smart upgrade your factory needs.
Product Overview
CMX Battery 105kW/232kWh liquid-cooled outdoor ESS is purpose-built for factories and commercial facilities dealing with rising demand charges and fluctuating electricity prices.
By integrating the battery system, PCS, EMS, and advanced liquid cooling into a single weatherproof cabinet, it delivers a compact and highly efficient solution for modern C&I energy storage applications.
Designed for peak shaving, backup power, and VPP participation, this all-in-one system simplifies outdoor deployment with no need for additional infrastructure.
While rated at 105kW, it is widely recognized as a 100kW-class system in the market, offering additional power margin for handling sudden load fluctuations and heavy machinery startup.

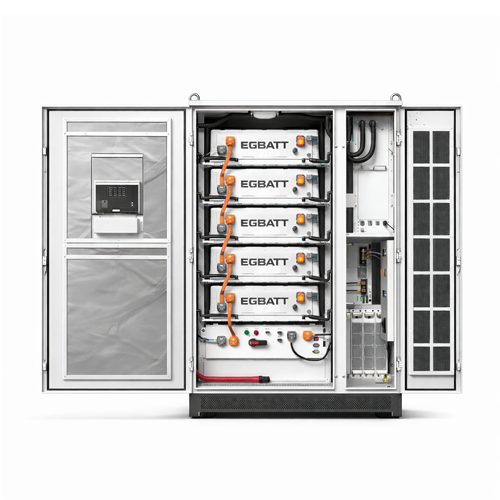

Its liquid cooling architecture maintains optimal cell temperature, improving system stability, extending battery life, and ensuring consistent performance even under high-load conditions.

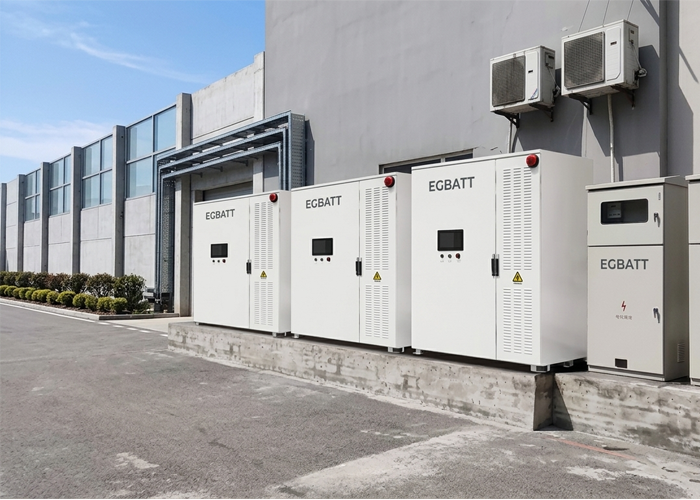

By storing energy during off-peak hours and discharging during peak periods, the system helps factories significantly reduce electricity costs. Whether integrated with rooftop solar or operated independently, it provides reliable power, supports carbon reduction goals, and enables a smarter, more resilient energy strategy.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| 2nd-gen liquid cooling (<3°C cell temp difference) | Extends battery life 20% vs air-cooled; keeps high-power output even in hot conditions |
| 100kW rated / 110kW continuous (130kW short-term) | Instantly handles factory peaks without straining the grid |
| 95% round-trip efficiency, 232.96kWh usable (95% DoD), 8000 cycles | Maximizes energy use, lowers bills, fast ROI, reliable for peak shaving & backup |
| Integrated BMS + PV input module | Real-time cloud monitoring & seamless solar integration for hybrid PV storage |

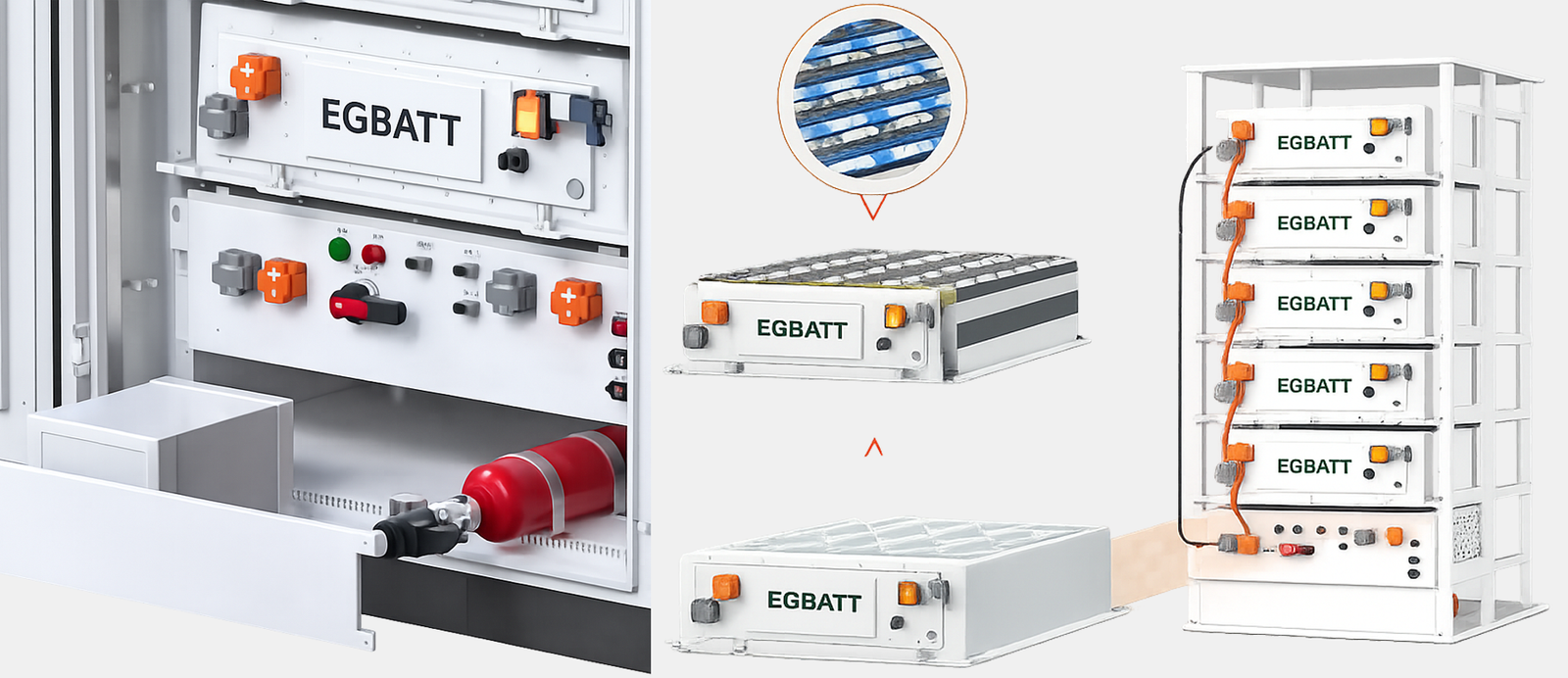

| IP65 outdoor cabinet + pack-level fire suppression | Safe, low-maintenance installation; protected from dust, rain, and fire |
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | EG-232KWh |
| Rated Power | 105kW (market also recognized as 100kW-class) |
| Rated Energy Capacity | 232.96kWh |
| Battery Chemistry | LiFePO4 (LFP) 280Ah cells |
| Max Charge/Discharge Current | 220A |
| Depth of Discharge (DoD) | 95% |
| Cycle Life | 8000 cycles (100% DoD to 70% capacity at 25°C) |
| Round-Trip Efficiency | ≥90% (system) / ≥96% charge & discharge |
| Cooling Method | Second-generation liquid cooling |
| Protection Rating | IP65 |
| Grid Voltage | AC380V (-15%~+10%), 50/60Hz |
| Max Output Power | 110kW continuous / 120kW (1min) / 130kW (1s) |
| PV Input | Customized PV input module available |
| STS Module | Equipped with STS switch for seamless on/off-grid switching |
| Communication | CANBUS / RS485 / Ethernet |
| Operating Temperature | -20°C to 55°C (derating above 45°C) |
| Dimensions (W×D×H) | 1400×1250×2000mm |
| Weight | Approx. 3000kg |
| Warranty | 5 years standard (performance & product) |
| Certifications | CE / UN38.3 / IEC62619 (available) |
Applications
- Peak Shaving & Energy Arbitrage
Automatically discharge during high-tariff periods to cut demand charges. Factories with heavy CNC or HVAC loads can reduce peak bills by 30–50%, and charging at night when rates are low maximizes savings.
- Microgrid & VPP Participation
Enable your own microgrid or join virtual power plants to gain energy independence and generate potential revenue from grid services
- Backup Power & Uninterrupted Production
<10ms seamless switch to island mode protects critical processes, ensuring continuous operation for food processing, pharmaceuticals, and data centers.
- Renewable Integration & Self-Consumption
Pair with rooftop solar for 150kW/232kWh PV storage. Store excess daytime generation for use at night or during cloudy periods, boosting self-consumption and energy independence.
Installation & Compatibility
Easy Outdoor Installation

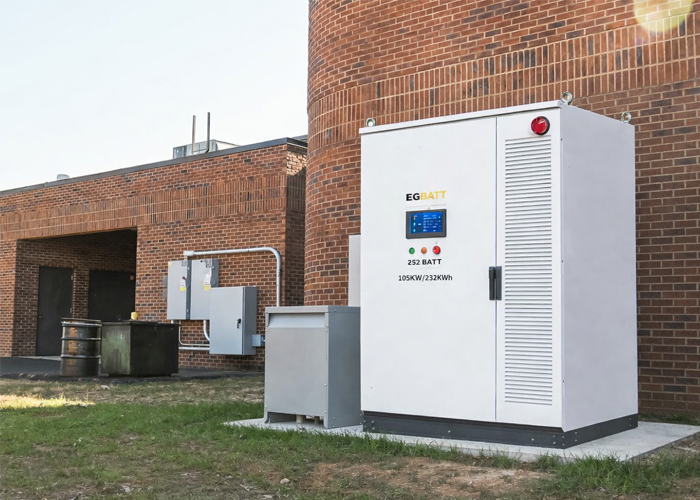

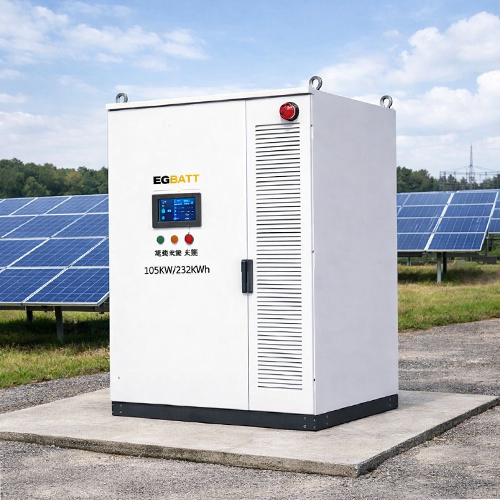

IP65 cabinet installs directly on concrete pad or steel base — no additional shelter required.
Dimensions fit standard shipping containers for global delivery.
Plug-and-play design: connect grid, PV, and load cables in under 2 days.
Inverter & System Compatibility
Built-in PCS supports most mainstream inverters and hybrid systems.
Customized PV input module works with string or centralized inverters from Sungrow, Huawei, GoodWe, SMA, etc.
EMS cloud platform integrates with SCADA, Modbus, and major BMS software.
Compatible with diesel generators and existing microgrids.
Environmental Requirements
Operating altitude up to 3000m (full AC output)
Temperature range -20°C to 55°C
Low noise (<70dB) — suitable for urban or factory-adjacent site
Why choose CMX Battery?
- 9+ years specializing in C&I liquid-cooled ESS with hundreds of global deployments.
- Factory-direct pricing and fast lead time (standard models in stock).
- Full technical support: pre-sales design, on-site commissioning, and 24/7 remote monitoring.
- Commitment to quality — every cabinet is factory-tested and ships with complete documentation.
- Ongoing R&D keeps your investment future-proof for evolving grid codes and VPP requirements.
Frequently Asked Questions (FAQ)
Q1: Is this the same as a 100kW/232kWh system?
Yes — the system is rated at 105kW but widely recognized in the market as (100kW/232kWh) liquid-cooled All-in-One cabinet. Actual output is stronger at 105kW.
Q2: What is the warranty?
5 years standard product and performance warranty. Extended options available.
Q3: How does liquid cooling compare to air cooling?
20% longer battery life, <3°C temperature difference, lower auxiliary power consumption, and quieter operation
Q4: Can it work with my existing solar system?
Absolutely. Customized PV input module makes integration simple with most inverters.
Q5: What is the expected payback period for factory peak shaving?
Typically 2.5–4 years depending on local peak/off-peak price difference and load profile.
Q6: Is the system suitable for hot climates?
Yes — liquid cooling maintains optimal battery temperature up to 55°C ambient
Q7: How is safety ensured?
Pack-level immersion fire protection, multi-level BMS, and comprehensive electrical protections.
Q8: Do you provide on-site installation support?
Yes — we offer remote guidance, detailed drawings, and optional on-site commissioning worldwide.
Request a Quote
Ready to reduce your factory energy costs with the 105kW/232kWh Liquid Cooling outdoor ESS? Fill in the form below:
Product & Packaging Details
Q: Do batteries include protection circuits(BMS) and connectors?
A:Protection: We supply batteries with BMS built in Protection Circuit Modules (PCM).
Connectors: We normally use standard like anderson,M8 lugs,Fast plugs or depends on OEM customer's demands.
Q: Are batteries Grade-A and brand new?
A: Yes, we use 100% brand new, Grade-A cells in all our batteries.
Q: Can you print our logo on the batteries?
A: Yes, we offer free custom logo printing with a minimal MOQ requirement.
Q: What is your standard packaging? Can it be customized?
A: Our standard is a white box per battery. We fully support customized packaging, including carton box and logo design.
Yes. CMX Battery is a manufacturer located in Shenzhen, Guangdong, China. It designs and produces LiFePO4 battery packs for energy storage, electric forklifts, marine applications, golf carts, RVs, and UPS systems.
Lead time depends on the product: standard battery packs are typically 15-25 days, while larger integrated systems such as our mobile EV charging units are 35-45 days. The exact schedule is confirmed in your quotation.
The company has strategic cooperation agreements with top manufacturers like EVE and REPT, and insists on using A+ tier One lithium iron phosphate cells for its solar batteries.
For 48V inverters, compatible brands include Victron Energy, Goodwe, Studer, Solis, LuxPower, and others. For high-voltage three-phase inverters, compatible brands include Atess, Solinteg, SAJ, Goodwe, and Solis.
CMX Battery offers dealer customers a 10-year warranty and technical service for its energy storage battery products.
DoD describes how much of the battery's capacity has been used. A DoD of 100% means the battery is completely empty, while 0% means it is full.
SoC reflects the battery's charge level. A SoC of 100% means the battery is full, and 0% means it is empty.
C-rate, or power factor, indicates how quickly a battery can be charged or discharged relative to its capacity. A rating of 1C means the battery can be fully charged or discharged in one hour.
The battery uses Lithium Iron Phosphate chemistry and provides a cycle life of over 6,000 cycles at 90% Depth of Discharge, and over 10 years at one cycle per day.
kW (kilowatt) is a unit of power, measuring the rate of energy production or consumption. kWh (kilowatt-hour) is a unit of energy, measuring the total amount of work done or energy used over time.
CMX Battery home batteries are suitable for both indoor and outdoor installation (depending on the model's protection level) and offer floor-standing or wall-mounted options. Common locations include garages, attics, or under eaves.
This depends on the load. As a realistic example, a 10kWh battery could run ten 100-watt light bulbs for 12 hours without recharging.
The number varies based on home size, energy consumption history, and personal goals (like which devices to run during an outage). For most systems, 2 or 3 batteries are installed. A detailed discussion of your needs is recommended for an accurate assessment.
Yes, it is possible, but it requires careful planning and significant investment. A true off-grid system needs a large enough solar array and sufficient battery storage to sustain your lifestyle. Cost and having an alternative energy source for when solar charging isn't possible are key considerations.
No. CMX Battery focuses on building long-term relationships with business partners like battery distributors, solar equipment dealers, and installation contractors worldwide, not direct sales to end consumers.
