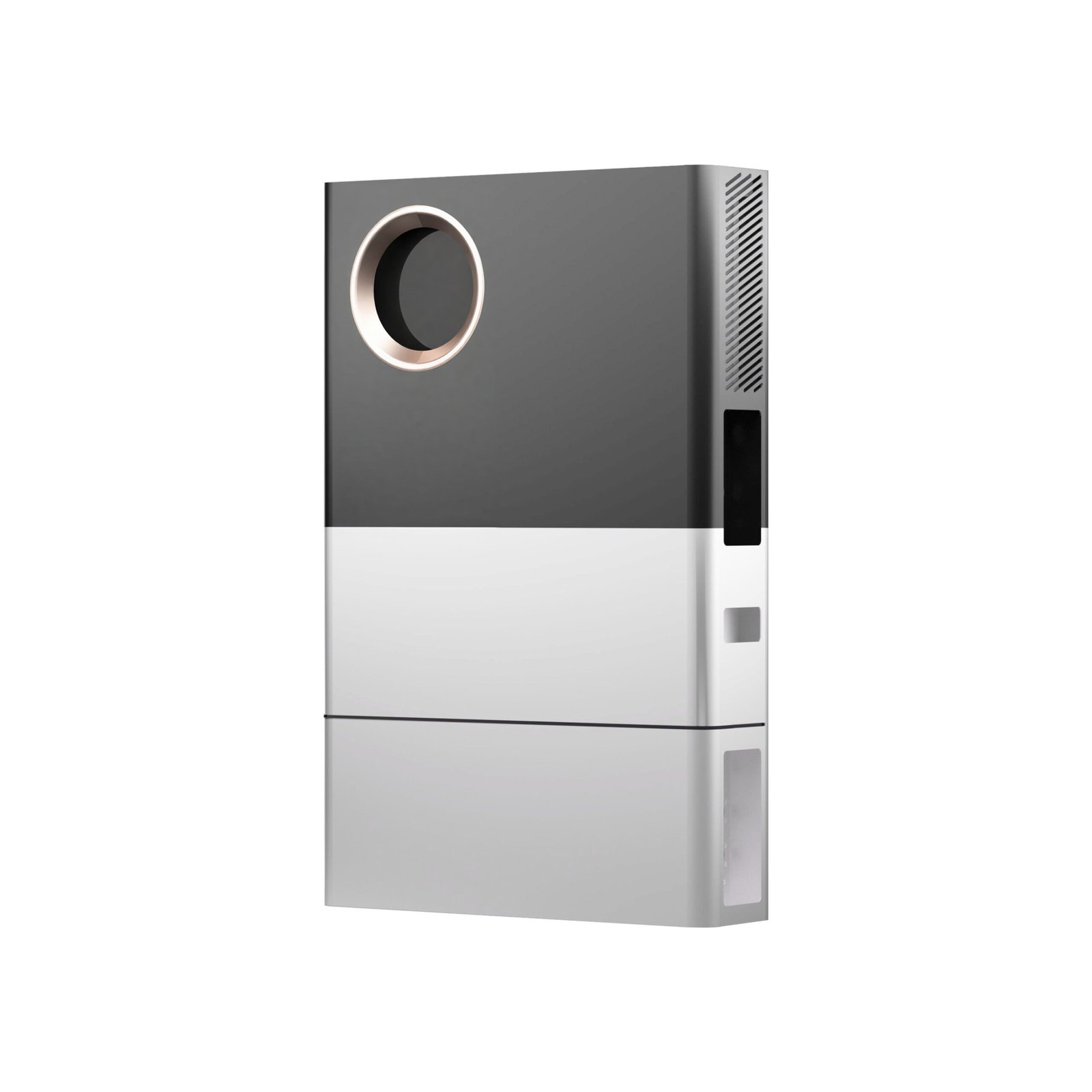

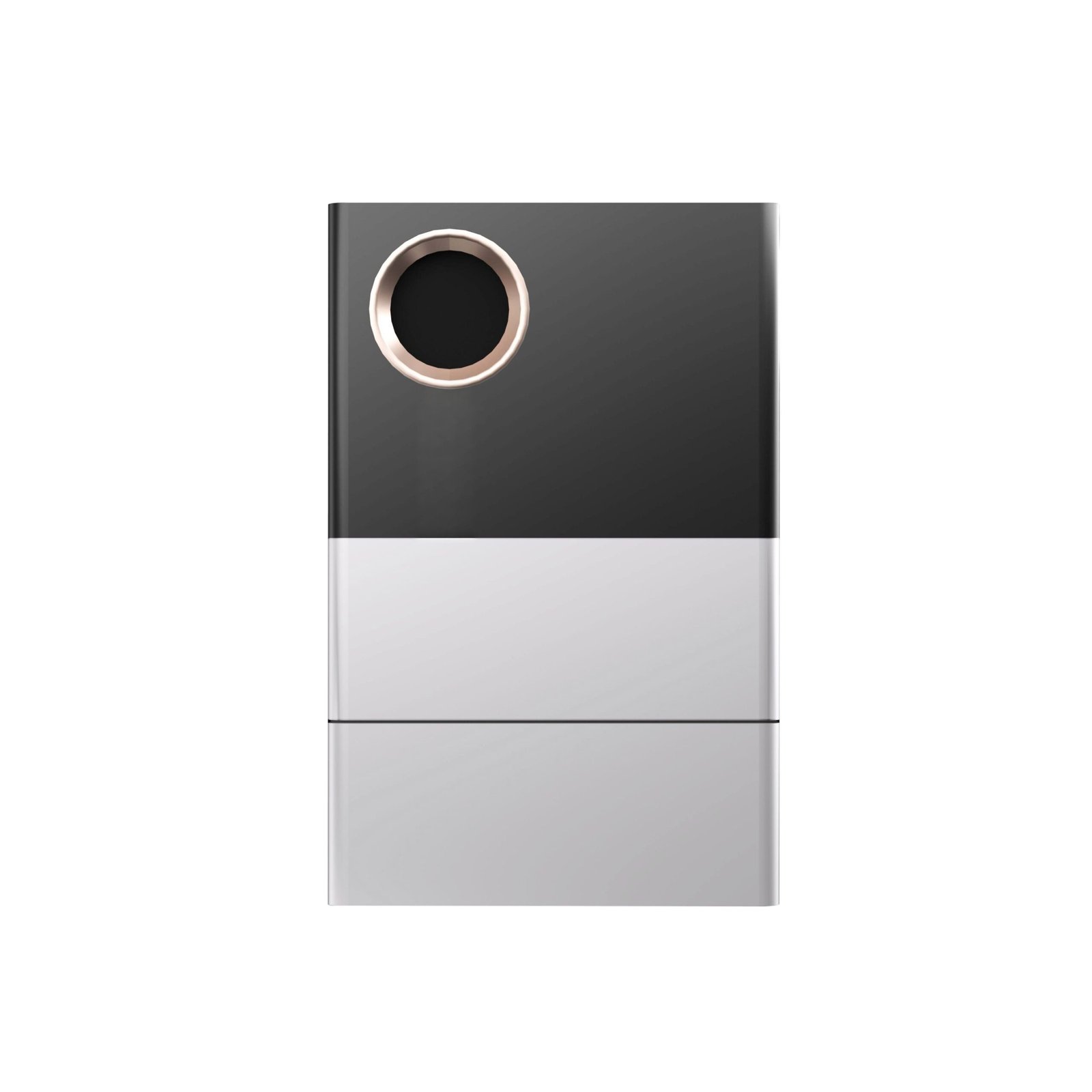

CMX 5kW 5kWh All-in-One Solar Battery with Inverter and Touch Screen
The CMX 5kW 5kWh All-in-One Solar Battery with Inverter and Touch Screen is a all-in-one LiFePO4 battery for energy storage featuring touch-screen control, integrated inverter. Engineered for long service life, a protected smart BMS, and safe, low-maintenance operation.
- 5kWh usable
- 6000+ cycle life · 5-year warranty
- Integrated Design: Combines a 5.12 kWh battery with a 5 kW inverter, offering a seamless all-in-one solution.
- Space saving Compact Design: With a slim body measuring only 150mm in thickness, it efficiently utilizes limited space.
Overview
The CMX 5kW 5kWh All-in-One Solar Battery with Inverter and Touch Screen is a all-in-one LiFePO4 (lithium iron phosphate) battery built for energy storage. It delivers 5kWh of usable energy, combining a long cycle life, a fully protected smart BMS, and a space-saving all-in-one form factor into a safe, maintenance-light energy storage solution. CMX uses automotive-grade LiFePO4 cells and a self-developed BMS so the pack stays balanced, efficient, and protected across its whole service life.
Key Features
- Integrated Design: Combines a 5.12 kWh battery with a 5 kW inverter, offering a seamless all-in-one solution.
- Space saving Compact Design: With a slim body measuring only 150mm in thickness, it efficiently utilizes limited space.
- Easy Plug and Play Installation: Reduces installation and commissioning costs by eliminating complex setup processes.
- Intelligent Energy Management: Enables scheduled charging during times of low electricity tariff rates and discharging during peak tariff periods.
- User-Friendly Interface: Features an advanced touch screen interface for easy operation and monitoring.
- Scalable Capacity: Supports the expansion of both battery and inverter capacity, making it suitable for larger residential properties.
- WiFi monitoring: the system status can be monitored through App by WiFi
Technical Specifications
| Usable Energy | 5kWh |
|---|---|
| Battery Chemistry | LiFePO4 (lithium iron phosphate) |
| Monitoring | Touch-screen HMI |
| Integrated Inverter | On-board inverter (see title rating) |
| Certifications | UL 1973, IEC 62619, UN 38.3, CE, and RoHS |
| OEM/ODM | Custom voltage, capacity, and enclosure available |
Full mechanical drawings, dimensions, weight, and discharge curves are available in the downloadable datasheet — contact CMX for the complete specification.
Application Scenarios
This all-in-one LiFePO4 pack is suited to residential and commercial backup power. It pairs with mainstream hybrid and off-grid inverters and scales from a single unit to parallel banks, making it a flexible choice for both first-time installs and capacity upgrades.
Why Choose Shenzhen CMX Battery Co., Ltd.
Shenzhen CMX Battery Co., Ltd. is a 9+ year LiFePO4 battery manufacturer with an annual cell-and-pack capacity of 5.8 GWh and an in-house factory in Tangxia, Dongguan, China. We provide OEM/ODM for voltage, capacity, BMS, and enclosure, and every pack ships with certified cells (UL 1973, IEC 62619, UN 38.3, CE, and RoHS). Our engineering team supports system sizing, standard BMS communication, and global compliance so integrators and distributors can deploy with confidence.
FAQ
Is it scalable?
Yes — single units parallel for higher capacity; confirm the model limit with our team.
What certifications apply?
Cells are certified to UL 1973, IEC 62619, UN 38.3, CE, and RoHS.
Get a Quote & Datasheet
Need pricing, lead time, or the full specification for the CMX 5kW 5kWh All-in-One Solar Battery with Inverter and Touch Screen? Our team replies with a quote, OEM/ODM options, and the downloadable datasheet. You can also reach us at sales@cmxbattery.com.
>
You must be logged in to post a review.
Product & Packaging Details
Q: Do batteries include protection circuits(BMS) and connectors?
A:Protection: We supply batteries with BMS built in Protection Circuit Modules (PCM).
Connectors: We normally use standard like anderson,M8 lugs,Fast plugs or depends on OEM customer's demands.
Q: Are batteries Grade-A and brand new?
A: Yes, we use 100% brand new, Grade-A cells in all our batteries.
Q: Can you print our logo on the batteries?
A: Yes, we offer free custom logo printing with a minimal MOQ requirement.
Q: What is your standard packaging? Can it be customized?
A: Our standard is a white box per battery. We fully support customized packaging, including carton box and logo design.
Yes. CMX Battery is a manufacturer located in Shenzhen, Guangdong, China. It designs and produces LiFePO4 battery packs for energy storage, electric forklifts, marine applications, golf carts, RVs, and UPS systems.
Lead time depends on the product: standard battery packs are typically 15-25 days, while larger integrated systems such as our mobile EV charging units are 35-45 days. The exact schedule is confirmed in your quotation.
The company has strategic cooperation agreements with top manufacturers like EVE and REPT, and insists on using A+ tier One lithium iron phosphate cells for its solar batteries.
For 48V inverters, compatible brands include Victron Energy, Goodwe, Studer, Solis, LuxPower, and others. For high-voltage three-phase inverters, compatible brands include Atess, Solinteg, SAJ, Goodwe, and Solis.
CMX Battery offers dealer customers a 10-year warranty and technical service for its energy storage battery products.
DoD describes how much of the battery's capacity has been used. A DoD of 100% means the battery is completely empty, while 0% means it is full.
SoC reflects the battery's charge level. A SoC of 100% means the battery is full, and 0% means it is empty.
C-rate, or power factor, indicates how quickly a battery can be charged or discharged relative to its capacity. A rating of 1C means the battery can be fully charged or discharged in one hour.
The battery uses Lithium Iron Phosphate chemistry and provides a cycle life of over 6,000 cycles at 90% Depth of Discharge, and over 10 years at one cycle per day.
kW (kilowatt) is a unit of power, measuring the rate of energy production or consumption. kWh (kilowatt-hour) is a unit of energy, measuring the total amount of work done or energy used over time.
CMX Battery home batteries are suitable for both indoor and outdoor installation (depending on the model's protection level) and offer floor-standing or wall-mounted options. Common locations include garages, attics, or under eaves.
This depends on the load. As a realistic example, a 10kWh battery could run ten 100-watt light bulbs for 12 hours without recharging.
The number varies based on home size, energy consumption history, and personal goals (like which devices to run during an outage). For most systems, 2 or 3 batteries are installed. A detailed discussion of your needs is recommended for an accurate assessment.
Yes, it is possible, but it requires careful planning and significant investment. A true off-grid system needs a large enough solar array and sufficient battery storage to sustain your lifestyle. Cost and having an alternative energy source for when solar charging isn't possible are key considerations.
No. CMX Battery focuses on building long-term relationships with business partners like battery distributors, solar equipment dealers, and installation contractors worldwide, not direct sales to end consumers.
