80kW Dual Gun DC Fast Charger | 1000V Public EV Charging Equipment
From $14,800.00Login for exact price

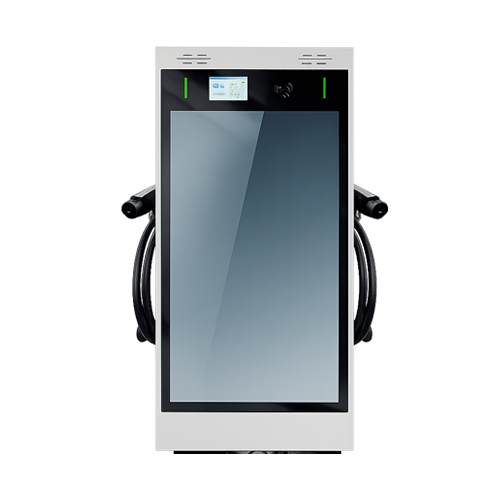

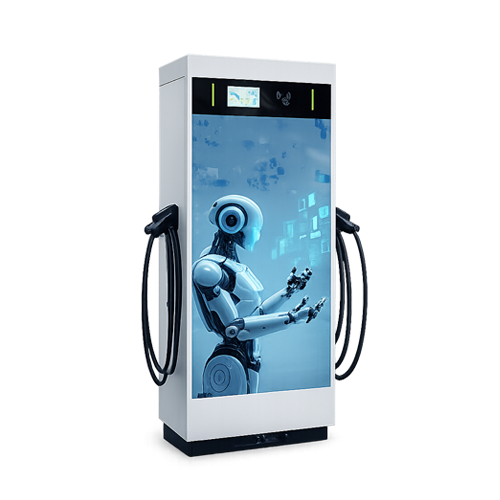

CMX Battery 80kW Dual Gun DC Fast Charger delivers 80kW power across a 150-1000V output range (200A max current). Powered by a 1000V constant power module, it maintains full output from 300V to 1000V, supporting both 400V and 800V electric vehicles.
IP55-rated enclosure operates from -40°C to +75°C. Dual-gun configuration with dynamic load balancing enables simultaneous charging of two vehicles. OCPP 1.6J compliant with ISO 15118 for Plug & Charge. Designed for highway service areas, retail hubs, and fleet depots.
Product Overview

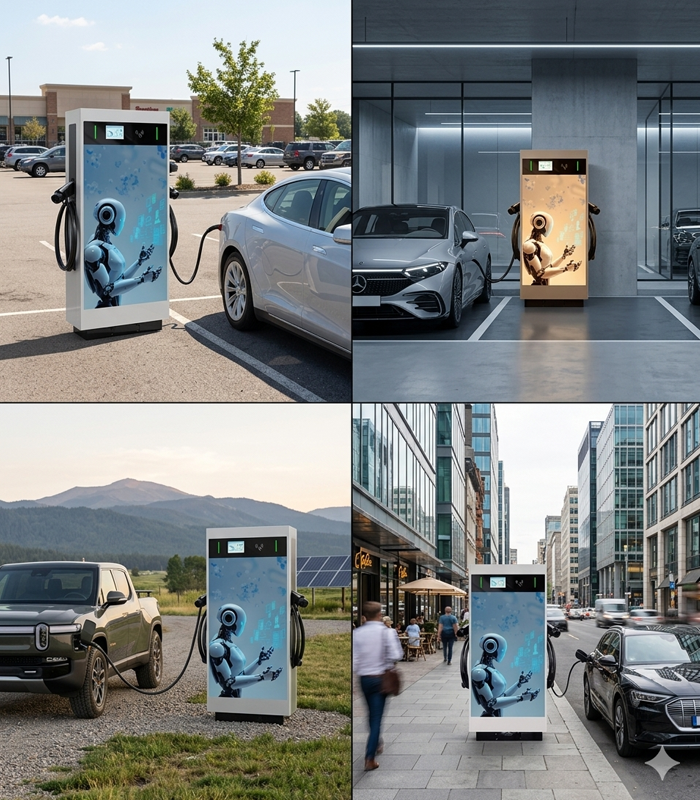

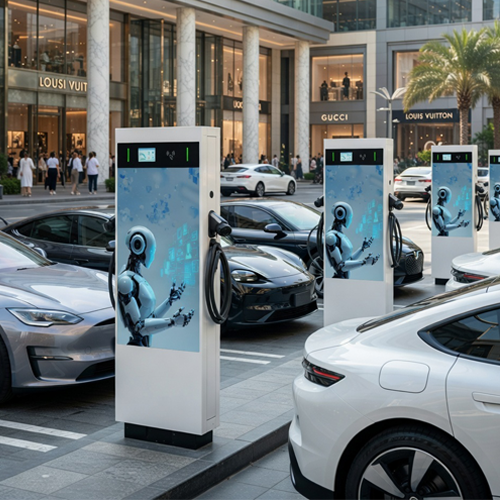

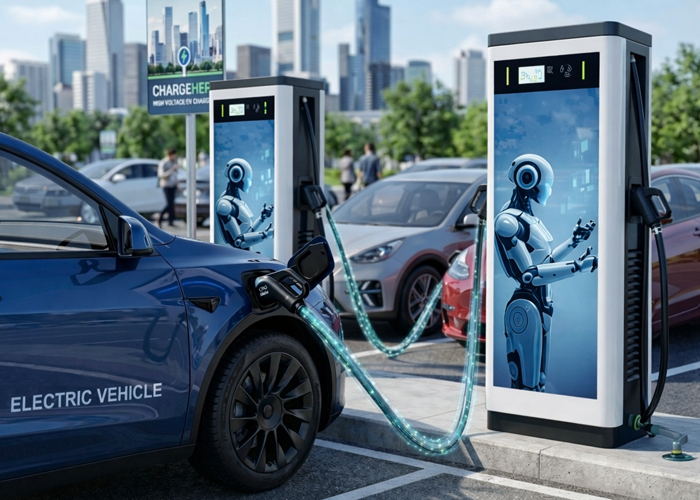

The 80kW Dual Gun DC Fast Charger is built for highway service areas, retail centers, urban charging hubs, and fleet depots. It supports all electric vehicle architectures—400V platforms and next-generation 800V vehicles—with compatibility across CCS1, CCS2, GB/T, and CHAdeMO connectors.
Powered by a 1000V constant power module, it delivers full 80kW output from 300V to 1000V, with an ultra-wide voltage range of 150V to 1000V and 200A max current. This ensures optimal charging speeds for both mainstream EVs and high-performance 800V models such as the Porsche Taycan, Hyundai Ioniq 5, and Kia EV6.
The dual-gun configuration with dynamic load balancing enables simultaneous charging of two vehicles, maximizing site throughput. The unit is OCPP 1.6J compliant (OCPP 2.0.1 ready) with ISO 15118 Plug & Charge, supporting remote monitoring, smart billing, and OTA updates.

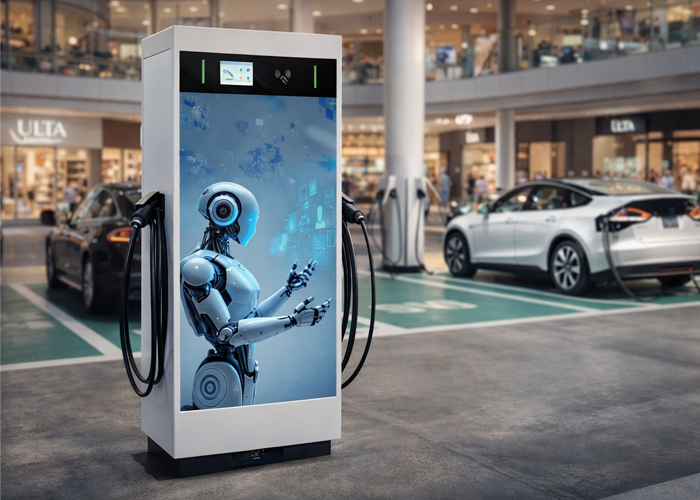

With an IP55-rated enclosure and -40°C to +75°C operating range, it is built for outdoor installation in all climates. Manufactured by a specialized China EV Charger manufacturer , this unit offers fixed competitive pricing for operators seeking reliable fast charging solutions with future-proof high-voltage capability.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| 1000V constant power module | Delivers full 80kW from 300V to 1000V; supports both 400V and 800V vehicles with optimal charging speeds |
| Dual-gun with dynamic load balancing | Two vehicles charge simultaneously; reduces wait times; maximizes revenue per parking space |
| OCPP 1.6J & ISO 15118 | Seamless backend integration; remote monitoring; Plug & Charge functionality for user convenience |
| IP55 weatherproof enclosure | Dust-tight and water-jet resistant; operates from -40°C to +75°C; reliable in all climates |
| Integrated LED advertising screen | 640*960 mm display for digital content; creates additional revenue stream beyond charging fees |
| Comprehensive safety suite | Emergency stop, over/under voltage, over current, short circuit, ground fault, lightning protection |
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Power | Rated Output | 80 kW (Dynamic Sharing) |
| Input Voltage | AC 380V ± 15% (3P+N+PE), 50/60Hz | |
| Output Voltage | 150V – 1000V DC | |
| Constant Power Range | 300V – 1000V DC | |
| Max Output Current | 200A (Per Gun Max 130A) | |
| Peak Efficiency | ≥96% | |
| Connectivity | Protocols | OCPP 1.6J / OCPP 2.0.1 Ready / ISO 15118 |
| Communication | 4G / LAN / Wi-Fi | |
| Connectors | CCS1, CCS2, GB/T, CHAdeMO (Configurable) | |
| Authentication | RFID, QR Code, Plug & Charge | |
| Environmental | Operating Temp | -40°C to +75°C |
| Protection | IP55 | |
| Cooling | Intelligent fan cooling | |
| Physical | Dimensions (WDH) | 690 * 365 * 1504 mm |
| Display | 7-inch LCD touchscreen | |
| LED Art Size | 640 * 960 mm | |
| Weight | Approx. 237 kg |
Applications
- Highway Service Areas
Deploy along major transit corridors for rapid en-route charging. The dual-gun design serves two vehicles simultaneously, minimizing wait times for travelers. - Urban Public Charging Hubs
Install in city centers, municipal lots, and transportation hubs. IP55 weather protection and wide temperature range ensure reliable operation in all conditions. - Retail Shopping Centers
Attract EV-driving customers. The integrated LED screen displays tenant promotions, turning the charger into a marketing asset for the property. - Fleet Depots
Charge delivery vans, taxis, and ride-sharing vehicles efficiently. Two vehicles can charge at once, maximizing fleet uptime. - Workplace Campuses
Support employee and visitor EV charging while meeting corporate sustainability goals.
Compatibility
- Vehicle Compatibility
Supports all electric vehicles with CCS1, CCS2, GB/T, or CHAdeMO connectors. Optimized for 800V EVs requiring high-voltage output for maximum charging speed. - Network Compatibility
OCPP 1.6J compliance ensures seamless integration with major Charging Station Management Systems (CSMS) globally. OCPP 2.0.1 ready for future smart charging features.
Installation
Electrical Requirements
*AC 380V, 160A, 3-phase power supply
*Upstream circuit breaker: 160A 4P
*Cable recommendation: ≥3×50+2×25 mm²
Site Preparation
*Level, reinforced concrete foundation
*Pre-installed conduits: Φ80mm minimum for power and data
*Outdoor installation supported (IP55 rated)
Installation Steps
- Prepare foundation with pre-installed conduits
- Position and secure unit with expansion anchors
- Connect power and communication cables
- Certified electrician performs final inspection and commissioning
PDF Download
Frequently Asked Questions (FAQ)
Q1:Why is 1000V output important for an 80kW charger?
A: A 1000V DC output allows the charger to support high-voltage EVs (800V systems) like the Porsche Taycan or Hyundai Ioniq 5. Without 1000V capability, these modern cars cannot reach their full charging potential, making the station less attractive to premium EV drivers.
Q2: Can the EV Ultra DC fast chargers charger work with two cars simultaneously?
A: Yes. This is a Dual Gun DC Fast Charger. It is designed to charge two vehicles at once, either by splitting the 80kW power or through dynamic load balancing, ensuring the most efficient energy distribution for your customers.
Q3: Is the LED screen weather-proof?
A: Yes, the 640*960 mm LED Art display is fully integrated into the IP55-rated housing. It is designed for outdoor visibility and can withstand rain, dust, and direct sunlight while remaining bright and clear.
Q4: Does it support my local charging network?
A: Since 1000V EVSE station uses the OCPP 1.6 (JSON) protocol, it is compatible with almost all major charging network software platforms worldwide. You can connect it to your preferred backend for billing and monitoring.
Q5: What safety certifications and protections are included?
A: The station includes a full suite of protections: emergency stop, over-voltage, under-voltage, over-current, short-circuit, grounding monitoring, and insulation testing. It is built to meet international safety standards for Public EV Infrastructure.
Q6: What is the typical charging time for a vehicle at 80kW?
A: For a standard passenger EV with a 60-70kWh battery, an 80kW charger can provide a 20% to 80% charge in approximately 30-45 minutes, depending on the vehicle’s onboard charging limits and battery temperature.
Inquiry here:
Contact CMX Battery today for a technical consultation or to receive a competitive quote on your next high-voltage EV charging project
| Voltage |
|---|
Product & Packaging Details
Q: Do batteries include protection circuits(BMS) and connectors?
A:Protection: We supply batteries with BMS built in Protection Circuit Modules (PCM).
Connectors: We normally use standard like anderson,M8 lugs,Fast plugs or depends on OEM customer's demends.
Q: Are batteries Grade-A and brand new?
A: Yes, we use 100% brand new, Grade-A cells in all our batteries.
Q: Can you print our logo on the batteries?
A: Yes, we offer free custom logo printing with a minimal MOQ requirement.
Q: What is your standard packaging? Can it be customized?
A: Our standard is a white box per battery. We fully support customized packaging, including carton box and logo design.
Yes. CMX Battery is a manufacturer located in Shenzhen, Guangdong, China. It designs and produces LiFePO4 battery packs for energy storage, electric forklifts, marine applications, golf carts, RVs, and UPS systems.
Based on automated production technology, the current product lead time is 15-25 days.
The company has strategic cooperation agreements with top manufacturers like EVE and REPT, and insists on using A+ tier One lithium iron phosphate cells for its solar batteries.
For 48V inverters, compatible brands include Victron Energy, Goodwe, Studer, Solis, LuxPower, and others. For high-voltage three-phase inverters, compatible brands include Atess, Solinteg, SAJ, Goodwe, and Solis.
CMX Battery offers dealer customers a 10-year warranty and technical service for its energy storage battery products.
DoD describes how much of the battery's capacity has been used. A DoD of 100% means the battery is completely empty, while 0% means it is full.
SoC reflects the battery's charge level. A SoC of 100% means the battery is full, and 0% means it is empty.
C-rate, or power factor, indicates how quickly a battery can be charged or discharged relative to its capacity. A rating of 1C means the battery can be fully charged or discharged in one hour.
The battery uses Lithium Iron Phosphate chemistry and provides a cycle life of over 6,000 cycles at 90% Depth of Discharge, and over 10 years at one cycle per day.
kW (kilowatt) is a unit of power, measuring the rate of energy production or consumption. kWh (kilowatt-hour) is a unit of energy, measuring the total amount of work done or energy used over time.
CMX Battery home batteries are suitable for both indoor and outdoor installation (depending on the model's protection level) and offer floor-standing or wall-mounted options. Common locations include garages, attics, or under eaves.
This depends on the load. As a realistic example, a 10kWh battery could run ten 100-watt light bulbs for 12 hours without recharging.
The number varies based on home size, energy consumption history, and personal goals (like which devices to run during an outage). For most systems, 2 or 3 batteries are installed. A detailed discussion of your needs is recommended for an accurate assessment.
Yes, it is possible, but it requires careful planning and significant investment. A true off-grid system needs a large enough solar array and sufficient battery storage to sustain your lifestyle. Cost and having an alternative energy source for when solar charging isn't possible are key considerations.
No. CMX Battery focuses on building long-term relationships with business partners like battery distributors, solar equipment dealers, and installation contractors worldwide, not direct sales to end consumers.
Related products
1000kWh Mobile BESS EV Charging Station for Emergency Power & Heavy-Duty Vehicle Fast Charging
CMX 1000kWh mobile BESS EV charging station — a 1 MWh LiFePO4 bank and a 480kW DC fast charger on a heavy-duty truck platform, for fleets with no grid connection. Factory-direct with OEM/ODM options.
- Performance: 480kW DC fast charging, 6,000+ cycles @ 80% DoD, Grade A automotive cells and smart BMS.
- Compliance: CE, RoHS, UN38.3 and IEC62619 (UL available); CAN / RS485 / RS232.
- Best for: Heavy-duty truck, bus and fleet charging; emergency, construction, mining, port and highway sites with no grid.
120kW Split DC Fast Charger for Commercial EV Charging Stations
- Charger Type: Split DC Fast Charger (Power Cabinet + Dispensing Terminals)
- Total Output Power: 120 kW, dynamically allocated across 4 charging points
- Voltage Range: 200–1000 V ultra-wide output, compatible with all EVs
- Efficiency: ≥ 96% high-efficiency DC conversion
- Power Management: Intelligent load allocation & dynamic load balancing
- Applications: Commercial charging stations, fleet depots, public EV networks
- Operational Savings: Up to 25% lower electricity costs via smart load distribution
- Future-Proof: Designed for current and next-generation electric vehicles
160kW 4-Gun DC Fast Charging Point | Dynamic Load Balancing for EV Fleets
300kW Heavy-Duty DC Fast Charger | Outdoor Fleet & Bus/Truck EV Solution
Outdoor EV Charging Solution for Bus, Truck & Fleet Operations
The 300kW DC fast charger is built for commercial EV operations where reliability, compatibility, and predictable performance matter more than theoretical peak numbers.With up to 300kW output and a wide 150–1000VDC range, it supports both current 400V vehicles and newer 800V platforms — making it suitable for mixed fleets and future expansion.
416kWh Mobile Electric Charging Station with 240kW EV Battery Fast Charging System
CMX 416kWh mobile electric charging station — 416kWh of LiFePO4 storage with a 240kW EV fast-charging system (CCS1 / CCS2 / GB/T) for outdoor and remote charging. Factory-direct with OEM/ODM options.
- Performance: 240kW EV fast charging from a 416kWh LiFePO4 bank; integrated AC emergency output.
- Compliance: CE, RoHS, UN38.3 and IEC62619 (UL available); CCS1 / CCS2 / GB/T; CAN / RS485 / RS232.
- Best for: Outdoor, remote and temporary EV charging where grid capacity is limited.

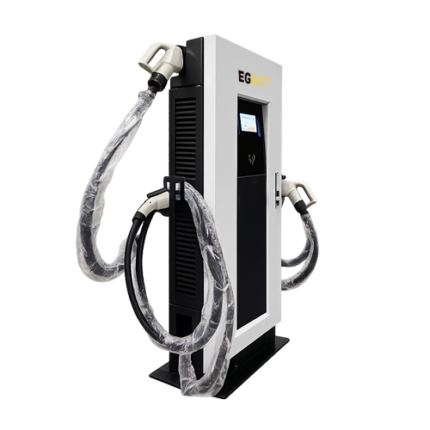

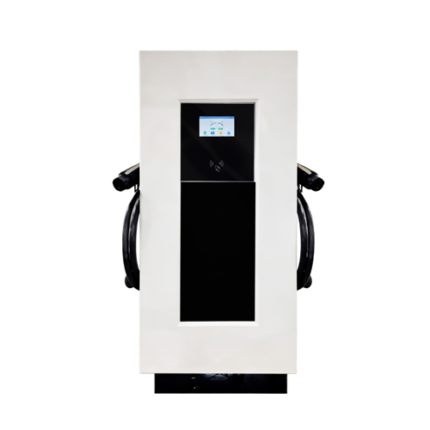

60kw Rapid DC Charger | Standalone EV station for Commercial & Passenger EVs
