16kWh 48V 320Ah Lithium Battery for Solar Home Energy Storage

16kWh 48V 320Ah Lithium Battery for Solar Home Energy Storage

The 16kWh 48V 320Ah Solar home lithium battery is a premium and modern residential energy storage solution designed for both grid-connected hybrid systems and off-grid solar systems.

Featuring a stylish appearance and an easy-to-move caster-mounted design, this 48V 320Ah 16kWh solar home energy storage system is built with original CATL / EVE Grade A lithium iron phosphate cells.

It delivers outstanding performance in capacity, safety, and service life, providing stable and reliable power support for residential, commercial, and off-grid applications.

This (51.2V) 48V 320Ah 16KWh Solar home energy storage battery provides a true usable capacity of 16.38kWh when fully charged.

To meet the diverse energy storage requirements of different households, multiple battery units can be connected in parallel to flexibly expand the total system capacity.

Currently, configurations with two units in parallel delivering approximately 32kWh, or four units in parallel delivering approximately 64kWh, are especially popular.

The system can serve as the primary power source for daily household use and automatically switch to backup power during grid outages, continuously supplying stable and reliable electricity to the entire home.

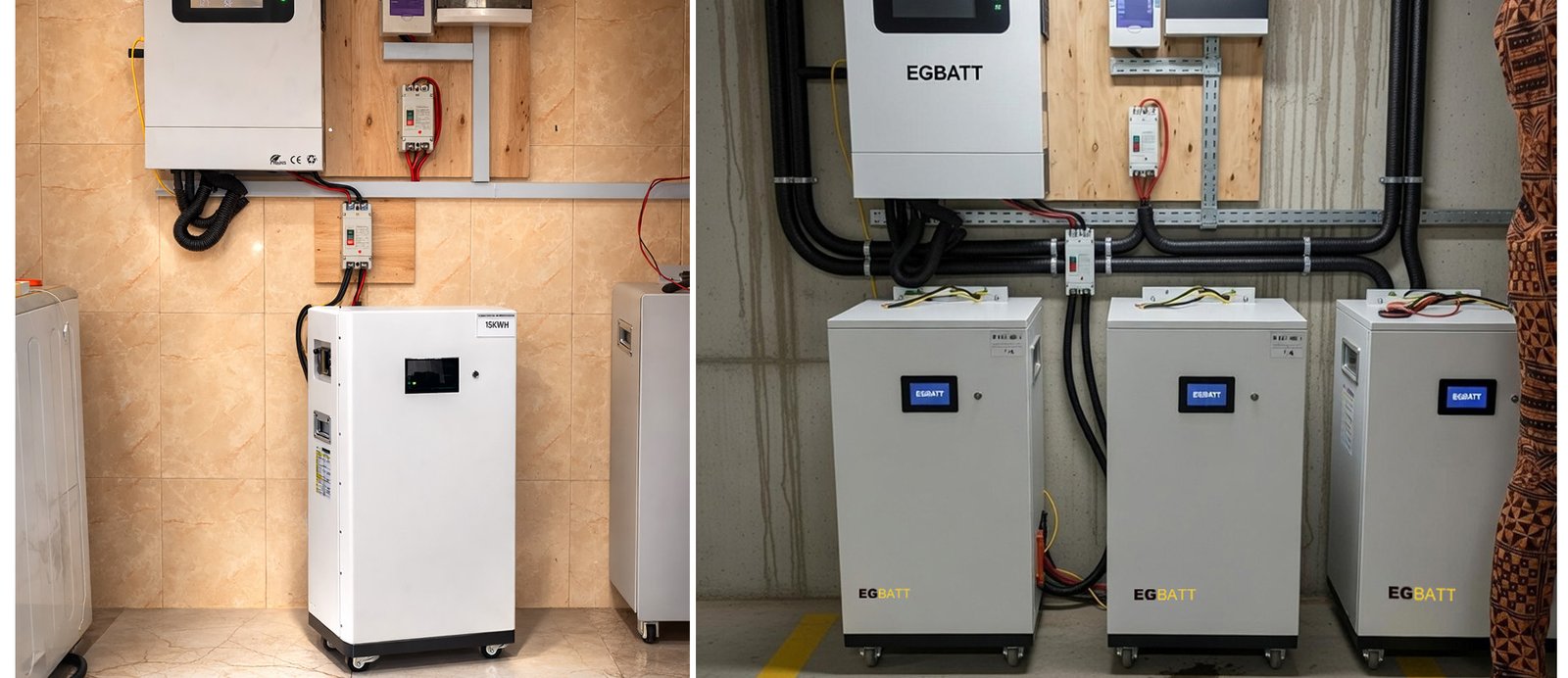

The 16KWh Solar Home Lithium battery features a floor-standing design with a built-in touchscreen, allowing battery status and operating modes to be clearly visible at a glance.

Output settings and mode switching can be easily adjusted with a simple touch, making operation intuitive and user-friendly.

Important information is clearly displayed on the screen and remains easy to read even under changing outdoor lighting conditions, simplifying power management and improving efficiency.

With an IP65-rated steel enclosure and industrial-grade casters, the system combines rugged durability with convenient mobility, achieving an ideal balance between performance and practicality.

Key Features

1. Brand-New Grade A LiFePO4 Cells

This 16kWh Solar home energy storage lithium battery system uses brand-new Grade A lithium iron phosphate cells arranged in a 16S1P architecture, meaning sixteen 320Ah high-capacity cells are directly connected in series to form a single battery module.

Core advantages of this architecture include:

• Simplified and reliable system:

Compared with traditional designs that use multiple small cells connected in parallel and then in series, the parallel cell connections are eliminated. This significantly reduces internal connection points and fundamentally lowers the risk of failures caused by uneven impedance, circulating currents, and related issues, greatly improving overall safety and reliability.

• Balanced performance and longer lifespan:

All cells operate in a pure series configuration with a consistent current path, eliminating imbalance issues within parallel groups. The Battery Management System (BMS) independently and accurately monitors and balances the voltage of each 320Ah cell, ensuring synchronous aging and maximizing the overall cycle life of the battery system.

• High energy density and easy maintenance:

The use of single high-capacity cells results in a more compact structure and higher energy density for the same total energy. Fewer cells and connectors also simplify maintenance and diagnostics over the system’s lifetime.

By combining the inherent safety and long lifespan of LiFePO4 chemistry with a simple and efficient circuit structure, this 16KWh 48V 320Ah home energy storage lithium battery delivers a stable and durable solution from cell level to system level.

Under normal operating conditions, it supports up to 9,500 deep cycles and is designed for more than 10 years of stable operation.

2. Intelligent Battery Management System (BMS) with 2A Active Balancing

This system is equipped with an intelligent BMS featuring 2A active balancing, providing comprehensive battery protection and lifespan optimization.

• Intelligent monitoring:

Real-time monitoring of each cell’s voltage, current, and temperature with an accuracy of ±0.5%.

• 2A active balancing:

Balancing current up to 2A, significantly reducing cell discrepancies. Automatic balancing throughout the entire charge and discharge process with efficiency greater than 85%, improving overall pack consistency.

• Four-level safety protection:

Comprehensive protection against overcharge, over-discharge, short circuit, and high/low temperature conditions.

3. LCD Touchscreen Display

The high-resolution LCD touchscreen displays key operating parameters in real time, including SOC, voltage, current, individual cell and ambient temperature, and cycle count, allowing you to monitor and maintain the system locally with ease.

The touchscreen integrates fully with the BMS and supports multiple mainstream communication protocols (CAN / RS485). You can select and switch protocols via the on-screen menu, ensuring stable communication and compatibility with major inverter brands such as Victron, Growatt, Sofar, Solis, and GoodWe.

4. Industrial-Grade Caster Design

High load-bearing industrial-grade casters let you move the system easily without forklifts or additional equipment, significantly reducing installation and maintenance effort.

This design suits applications that require frequent repositioning, temporary on-site deployment, or future capacity expansion.

The locking function keeps the system stable and safe during fixed installation, balancing flexibility with security.

5. Parallel Expansion Support

As your electricity demand increases, you can connect multiple battery units in parallel without replacing the entire system, flexibly expanding total capacity to hundreds of kilowatt-hours.

This feature makes the system ideal for residential and commercial energy storage projects that start small and grow gradually, helping you reduce upfront investment and avoid repeated installations.

6. IP65 Protection Rating + Self-Heating Function

The fully sealed enclosure effectively resists dust, rain, and humid environments, supporting both indoor and semi-outdoor installations.

A built-in self-heating system automatically activates in low-temperature conditions, ensuring safe charging and stable operation at temperatures as low as -20°C, reducing winter downtime and performance degradation.

7. Plug & Play Design

Standard RS485 and CAN communication interfaces enable direct connection to mainstream inverters without complex wiring or secondary development.

This significantly shortens installation and commissioning time, allowing faster system deployment while simplifying long-term monitoring and maintenance.

8. Quality Commitment

Each 16kWh 48V 320Ah LiFePO4 Solar home energy storage battery system is assembled using brand-new Grade A lithium iron phosphate cells, ensuring consistency and long service life from the source.

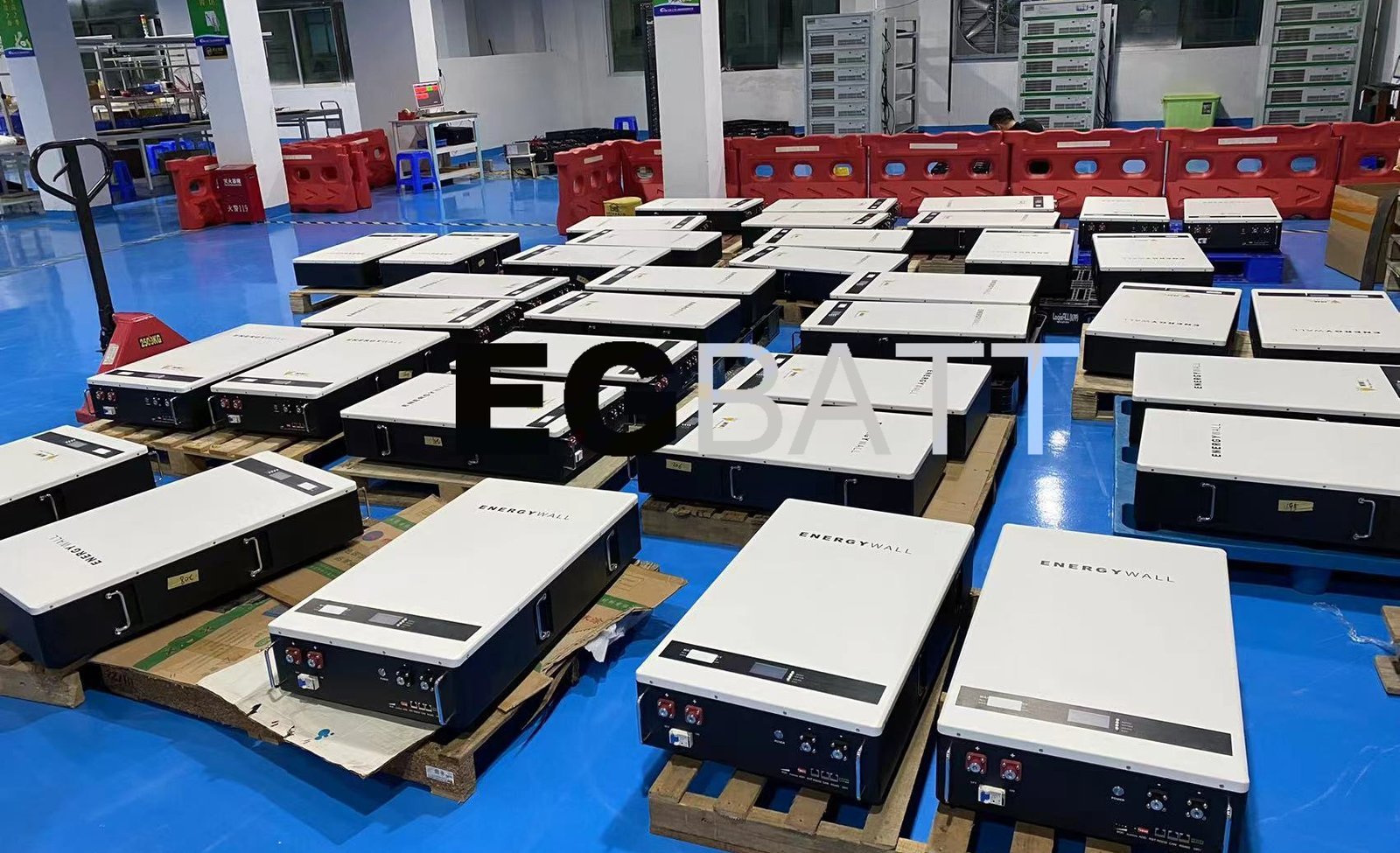

Before leaving the factory, every battery undergoes capacity testing, charge/discharge performance testing, vibration testing, and multiple safety tests to verify stability and reliability during long-term operation and transportation.

Based on the use of high-quality Grade A LiFePO4 cells and a rigorous, systematic factory testing process, we are able to offer a 10-year warranty on this 16kWh 48V 320Ah Solar home energy storage battery system

FAQ:

Q1: Can you clarify the standard warranty for these batteries?

The 16kWh 48V 320Ah home solar battery system comes standard with brand-new Grade A LiFePO4 cells and includes a 10-year factory warranty.

All issues under normal use, including parts replacement, are fully covered by our factory. With proper use, the battery system typically lasts 15–20 years. LiFePO4 batteries offer a significantly longer lifespan compared to traditional lead-acid batteries.

Q2: After payment, how long does delivery take?

Under normal conditions, shipment is arranged within approximately 20 days after receiving payment. For urgent requirements, please inform our sales staff so the order can be marked as urgent.

For expedited energy storage systems, we will make every effort to arrange shipment within 15 days. Sea freight typically takes 20–25 days, resulting in a total delivery time of approximately 40–45 days after payment. Full logistics and tracking information will be provided throughout the process.

Q3: Why the 16KWh solar battery competitively priced while maintaining quality?

Our ability to maintain competitive pricing while ensuring quality is based on over 13 years of supply chain optimization. Long-term partnerships with raw material suppliers and a large network of wholesalers, distributors, and end customers allow us to achieve strong cost control from source to delivery, with savings passed directly to customers.

Q4: How long can this battery power my household appliances?

The backup duration depends on your total load. For example, if you run air conditioning, lighting, a washing machine, and an electric kettle together consuming 5,000W, this 16kWh battery provides about 3.2 hours of continuous power.

To extend backup time, you can connect two batteries in parallel, increasing the total capacity to 32kWh. We recommend choosing the configuration based on your actual household power needs

Q5: Is the battery system compatible with my inverter? Do you offer compatible inverters?

This 16kWh 48V 320Ah LiFePO4 home energy storage battery works with most mainstream 48V inverters on the market.

If your current inverter doesn’t meet your needs or you plan to upgrade, we also offer our own 10kW, 12kW, and 16kW hybrid inverters.

We sell these inverters at factory cost to support our energy storage battery customers and just contact our sales team for detailed specifications and a quotation.

Q6: How many solar panels do you need for this 16kWh battery?

Assuming 4 hours of effective sunlight per day, each 550W solar panel generates about 2.2kWh daily. You need approximately 8 panels to fully charge a 16kWh battery. Actual requirements may vary depending on installation conditions, season, weather, and charging efficiency.

Q7: How is shipping calculated?

We typically ship our solar home energy storage batteries via DDP (Delivered Duty Paid) sea freight directly to your address. Our door-to-door price includes all customs duties and related fees, so you will not need to pay any additional charges.

Specification:

PDF Download

Application:

This 16KWh 48V energy storage battery delivers stable, reliable power for residential backup systems during outages or peak demand. It also supports commercial and critical applications, including supermarkets, medical facilities, and communication base stations.

As a source manufacturer, we offer factory-direct pricing and professional technical support. For project requirements or bulk purchasing inquiries, please contact us for detailed information and customized quotations.

After receiving your inquiry, our sales team will contact you within 12 hours. Please ensure the accuracy of your email address so we can follow up promptly.
