Wall-mount 10KWh 51.2V 200Ah Lithium LiFePO4 solar home battery

Description

EG-Wall-mount 10KWh Lithium Powerwall Energy Storage System

The EG-wall-mount 10KWh is a 51.2V 200Ah wall-mounted Li-ion battery with a total capacity of 10.24kWh. It supports up to 32 modules in parallel with a maximum capacity of 327.68kwh and is designed for residential and commercial energy storage. It seamlessly integrates with existing home solar panel systems, storing excess power during the day and discharging it at night for energy self-sufficiency.

This 10 kWh powerwall battery is IP65-rated for use in harsh environments such as outdoor solar energy storage systems, telecommunication sites, construction sites, and industrial facilities. The protection ensures the stable operation of the battery regardless of heavy rain, snow, or dusty environments and meets the needs of home, commercial, and industrial energy storage.

Key Features

10KWh High-Efficiency Energy Storage

This 10kWh wall-mount power wall stores energy from your solar panels during the day and discharges it at night, allowing households to optimize their power usage and reduce reliance on the grid.

Nominal Voltage: 51.2V
Capacity: 200Ah
Energy: 5.12 kWh
Chemistry: Lithium Iron Phosphate (LiFePO4)

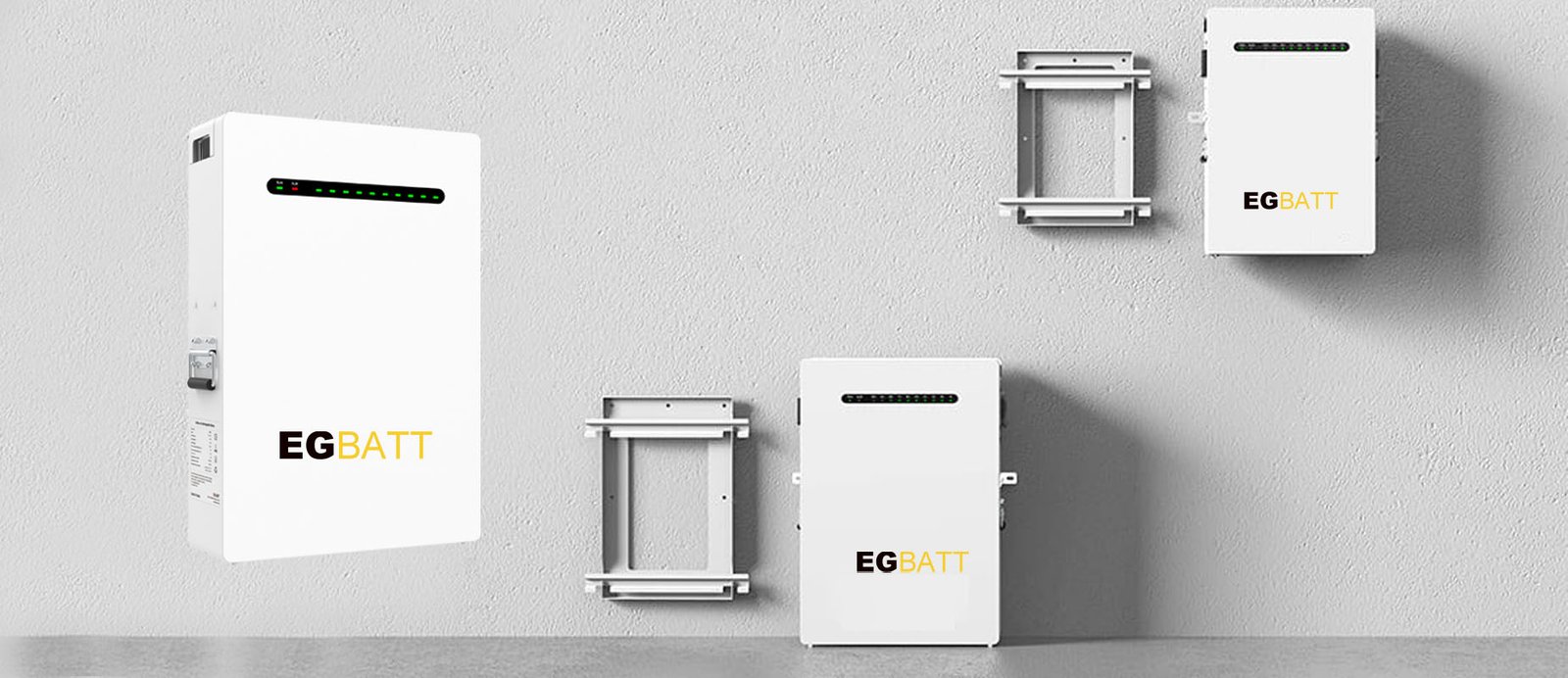

Wall-Mounted Design with Hidden Wiring

The EG 10.24KWh powerwall features a wall-mounted installation with a rear-concealed wiring layout that enhances the overall look and improves safety by reducing exposed cables. It also supports floor mounting for added flexibility.

Dimensions: 760*530*190 mm; Weight: 90kg；Installation: Wall-mounted or floor-mounted

Built for Residential Solar Storage

Seamless Integration with Household Solar Systems

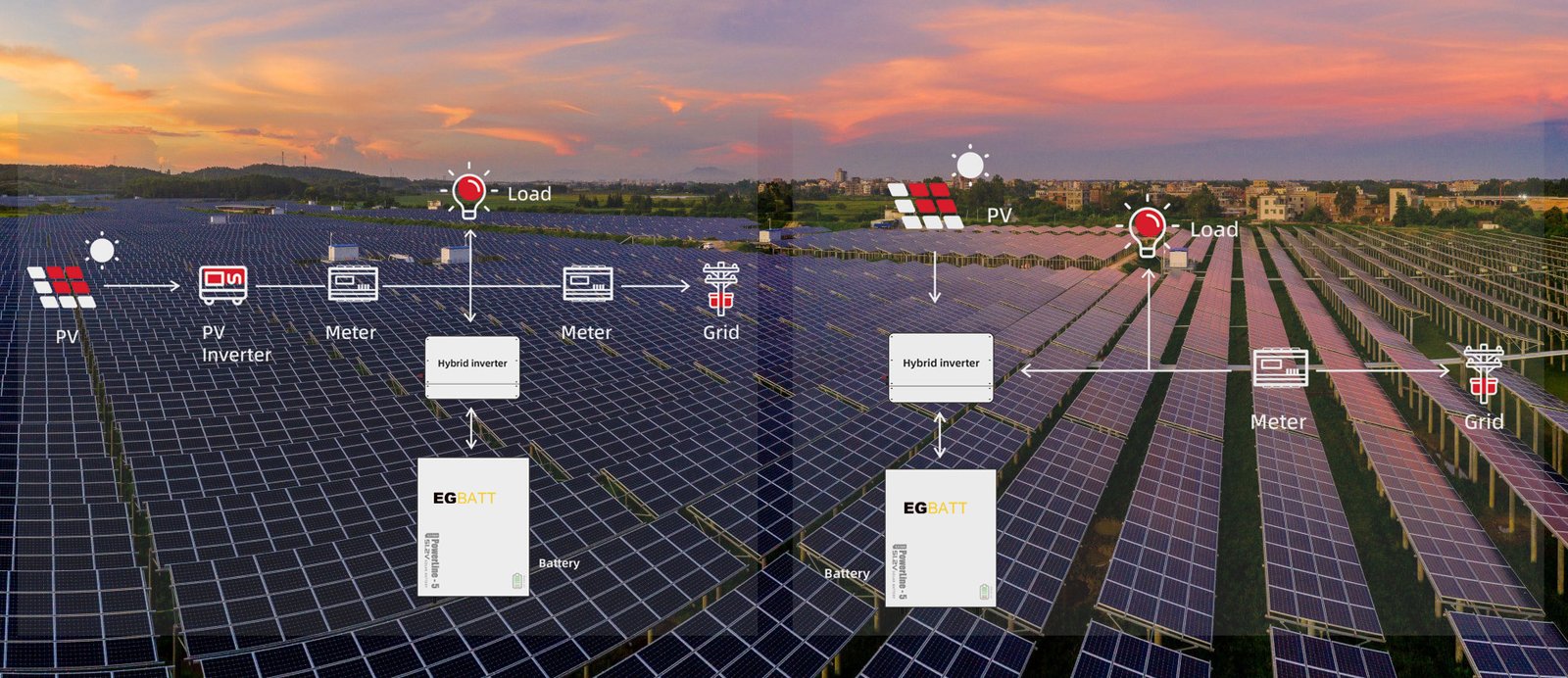

Whether your home uses DC-coupled or AC-coupled solar setups, this lithium wall-mounted energy storage system connects effortlessly. It’s compatible with newly installed systems and retrofitted solar applications alike.

Perfect for Household Energy StorageEngineered to meet residential power demands, the 10KWh system ensures homes have reliable access to clean energy—even during outages or nighttime use. It’s ideal for:

Daily self-consumption of solar power
Emergency power backup
Load shifting and peak shaving

Smart, Safe & Scalable

LiFePO4 Safety and Longevity
Built with high-quality LiFePO4 lithium cells, this wall-mounted battery provides:

Over 6000 life cycles at 25°C
A design life of over 15 years
High thermal and chemical stability
IP65-rated protection for indoor and outdoor environments

Wi-Fi Monitoring

Built-in Wi-Fi connectivity and user-friendly app setup allow easy monitoring and control of your 10KWh wall-mounted lithium battery, giving homeowners full visibility into energy storage status.

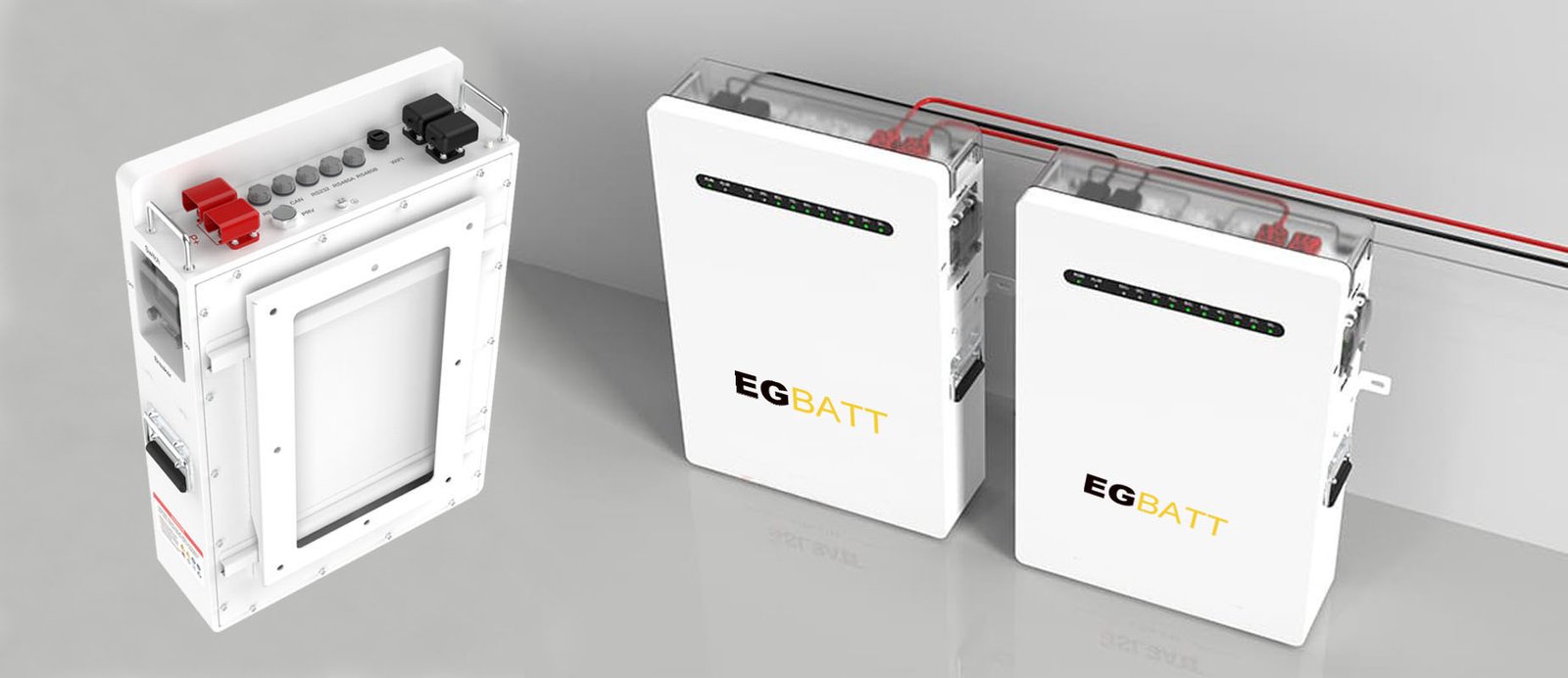

Future-Proof Modular Design

Expandable up to 163.84 kWh
As your energy needs grow, the EG wall-mounted lithium powerwall can scale with you. Up to 32 units can be connected in parallel, supporting both household and light commercial applications.

Parallel Expansion: Up to 32 modules
Maximum Capacity: 327.68 kWh

Energy-Dense, Space-Saving Solution

With an energy density of 106Wh/kg, the compact design ensures that more power is delivered in less space—perfect for homes with limited installation areas.

Compatible with most brands of inverters

Designed for seamless integration, this battery is compatible with most 48V hybrid inverter brands, ensuring wide system compatibility and easy installation.

Specifications:

Send Inquiry:

If you’re looking for a 48V 200Ah wall-mounted home energy storage system with an actual capacity of 10.24kWh — lightweight easy to install and maintain, and with a sleek design the Wall-mount 10KWH Solar power system is the ideal choice.

Whether for personal use or wholesale, its outstanding quality and factory-direct pricing make it a smart investment. Don’t hesitate to send us an inquiry, our sales team will get back to you promptly.
