Description

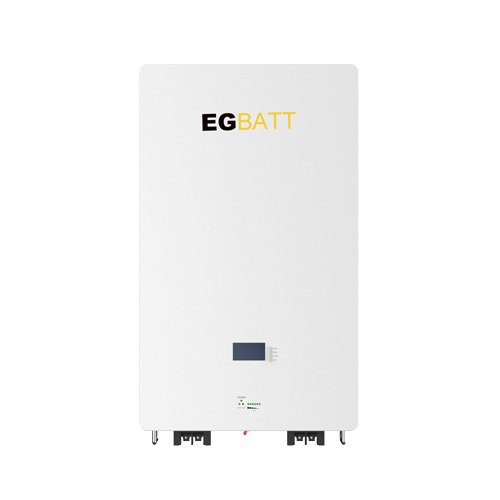

10KWh Lithium LiFePO4 Powerwall Battery for Residential Use
Upgrade your home energy system with our 10.24KWh Powerwall — a wall-mounted 48V 200Ah lithium LiFePO4 battery designed for superior performance, long life, and seamless integration into any solar energy storage system.
Whether you’re building a new DC-coupled solar setup or upgrading an existing AC-coupled system, this smart and versatile energy storage solution delivers reliability, efficiency, and long-term savings.
Key Features of the EG-48-200PW Powerwall
Long Cycle Life & Durability
This 48V 200Ah lithium LiFePO4 battery provides over 6000 cycles at 80% DOD, ensuring more than 10 years of performance without significant capacity degradation. Thanks to its high-grade lithium LiFePO4 battery cells, the Powerwall is more stable, safer, and thermally efficient compared to traditional lithium-ion chemistries.
High Compatibility with Inverters
The EG-48-200PW Powerwall is built with advanced BMS (Battery Management System) technology and supports communication with up to mostly popular inverter brands.
Expandable for Larger Systems
Need more energy? No problem. This 10KWh Powerwall can be connected in parallel with up to 32 units, reaching a total capacity of 327.68KWh — ideal for both residential and small commercial applications.
Intelligent BMS Protection
The integrated smart BMS monitors cell voltage, temperature, current, and overall battery health in real-time, offering:
Over-voltage protection
Under-voltage protection
Over-current protection
Temperature control
This system helps prevent potential hazards and extends battery life.
Compact Wall-Mounted Design
The Powerwall 10.24KWh battery comes in a sleek, compact, and wall-mountable design. It saves space and adds a modern aesthetic to your energy setup, perfect for home garages, utility rooms, or energy closets.
DC-Coupled System for Higher Efficiency
As a DC-coupled 48V battery, this Powerwall minimizes energy conversion losses, making it an excellent match for new solar installations. It delivers higher system efficiency and faster ROI.
Certified for Safety and Reliability
This 10KWh Powerwall lithium LiFePO4 battery meets the highest industry safety standards, including the UL 1973 certification, making it safe and reliable for indoor residential use.
10-Year Warranty & Ongoing Support
We stand behind our product with a full 10-year warranty and lifetime technical support. Our team is always available to assist with installation, system configuration, and after-sales service to ensure a smooth experience.
Technical Specifications
| Item | | Wall-Mounted 10KWh powerwall Energy Storage |
|---|
| Model | | EG-48200PW |
| Battery Type | | LiFePO4 |
| Nominal Voltage (V) | | 51.2 |
| Nominal Capacity (wh) | | 10240 |
| Usable Capacity (wh) | | 9216 |
| Cell ＆ Method | | 16S2P |
| Dimension(mm)(W*H*D) | | 820*490*147 |
| Weight(Kg) | | 95 |
| Discharge Voltage (V) | | 47 |
| Charge Voltage (V) | | 55 |
| Charge | Rate. Current / Power | 100A / 5.12kW |
| Max. Current / Power | 160A / 8.192kW |
| Peak Current / Power | 210A / 10.752kW |
| Discharging | Rate. Current / Power | 200A / 10.24kW |
| Max. Current / Power | 220A / 11.264kW, 1s |
| Peak Current / Power | 250A / 12.80kW, 1s |
| Communication | | RS232, RS485, CAN, WIFI(Optional), Bluetooth(Optional) |
| Depth Of Discharge(%) | | 90% |
| Expansion | | up to 32 units in parallel |
| Working Temperature | Charge | 0~55℃ |
| Discharge | -20~55℃ |
| Storage Temperature | | 0~35℃ |
| Short Circuit Current /Duration Time | | 350A, Delay time 500μs |
| Cooling Type | | Nature |
| Protection Level | | IP20 |
| Altitude(m) | | ＜ 4000 |
| Warranty | | 10 Years |
| Design Life | | ＞ 15 Years（25℃ / 77℉） |
| Cycle Life | | ＞ 6000 cycles, 25℃ |
| Certification & Safety Standard | | UN38.3, UL1973, IEC62619, CEC |
Request a Quote or More Information
Interested in learning more about our 10.24KWh Powerwall? Contact us now for pricing, shipping options, and installation support. Our team is ready to help you build a smarter, greener home energy system with the best LiFePO4 solar battery technology available today.
Invest in your energy future — choose our 48V 200Ah LiFePO4 Powerwall.
