35kWh High Voltage LiFePO4 Home Battery | All-in-One Scalable Solar Backup for Whole House
- 35.84 kWh usable capacity – powers 1,500–2,500 sq ft homes for 12–24 hours
- Built-in 15 kVA hybrid inverter + MPPT efficiency ≥99.5%
- 6,000 cycles at 80% DOD – 15–20 year lifespan
- Modular, floor-standing high voltage LiFePO4 stack – expand with custom 100Ah HV lithium battery modules
- IP55 protection, natural cooling – -20°C to 60°C operation
Introcuding the 35kWh HV LiFePO4 Solar Battery
Designed for modern homeowners seeking complete energy autonomy, EGBATT 35kWh High Voltage LiFePO4 Home Battery is a fully integrated energy storage system.

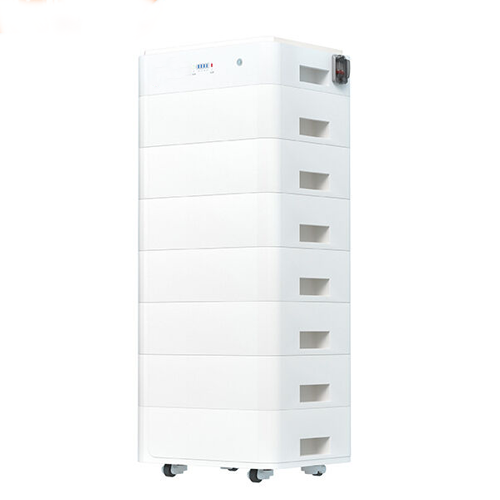

This scalable high-voltage battery storage module 35kWh combines seven premium 51.2V 100Ah LiFePO4 modules to deliver 358V and 35.84 kWh of usable energy—the ideal capacity for whole‑house self‑consumption, peak shaving, and backup power.
Store excess solar energy during the day and automatically power your home at night, during high‑tariff periods, or grid outages. The built‑in smart BMS (CAN/RS485) and hybrid inverter make this 35kWh battery energy storage systems BESS a true “set‑and‑forget” solution.
As your energy needs grow, simply add more custom 100Ah HV lithium battery modules. Whether for daily load shifting, off‑grid cabins, or commercial backup, this high voltage lithium photovoltaic battery delivers the safety, efficiency, and longevity of Grade A LiFePO4 chemistry

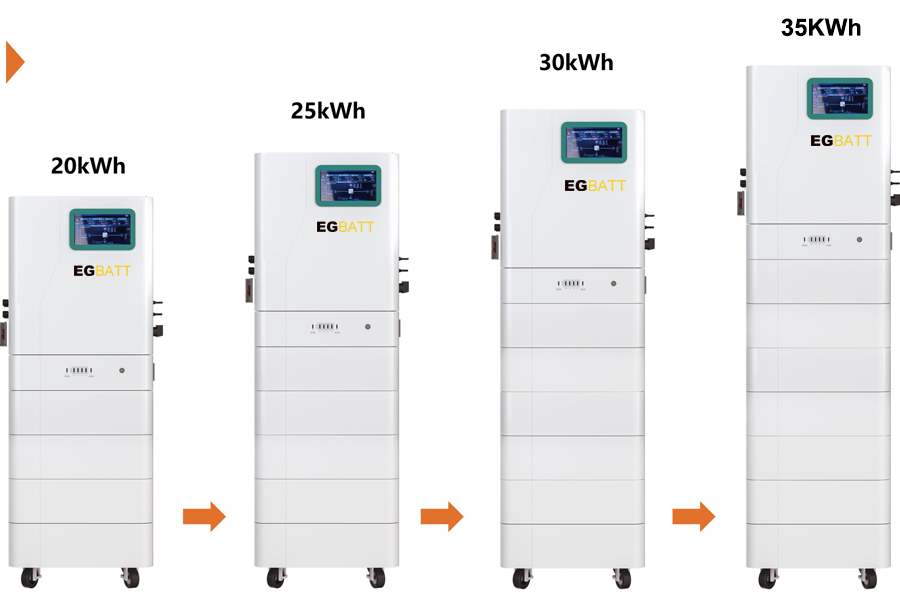

Easily expand capacity by stacking modules or units, with flexible configurations from 20kWh to 35kWh, suitable for residential and small commercial applications
Key Features & Benefits
| Feature | Benefit for Homeowners |
|---|---|
| High voltage 358.4V architecture (112S1P) | 5–10% higher round‑trip efficiency than 48V systems, lower cable losses, supports high‑power appliances like heat pumps & EV chargers. |
| Built-in 15 kVA hybrid inverter + ≥99.5% MPPT | Maximizes solar harvest, seamless grid‑tied / off‑grid switching. Ideal for all in one 358V 112S1P integration. |
| Grade A LiFePO4 cells (EVE, CATL, Hithium, REPT, Gotion) | >6,000 cycles at 80% DOD, thermal runaway >270°C, non‑flammable. The high voltage LiFePO4 battery pack storage system lasts 15–20 years. |
| Modular stackable design – 7 × 51.2V 100Ah modules | Start with 35kWh, expand later with custom 100Ah HV lithium battery modules. Future‑proof your investment. |
| Smart BMS with CAN/RS485 + optional 4G/Wi-Fi | Real‑time monitoring, automatic cell balancing, multi‑layer protection (over‑voltage, over‑current, temperature). |
| IP55 & natural cooling | Works indoors or outdoors, -20°C to 60°C, maintenance‑free operation. Perfect for high-voltage lithium storage battery HVS applications |
Technical Specifications
| Parameter | Specification |
|---|---|
| Battery Chemistry | LiFePO4 (Grade A cells: EVE, CATL, Hithium, REPT, GOTION) |
| Nominal Voltage | 358.4 V (7 modules × 51.2 V) |
| System Capacity | 35.84 kWh (100 Ah per module) |
| Configuration | 112S1P total / 1P16S per module |
| Max Charge/Discharge Current | 100 A continuous |
| PV Input Power | 22.5 kW |
| MPPT Voltage Range | 450–850 V |
| MPPT Efficiency | ≥99.5 % |
| Integrated Inverter Rated Power | 15 kVA (grid & off-grid) |
| Grid Voltage / Frequency | 380–400 V / 50/60 Hz |
| Round-Trip Efficiency | 97.8 % (battery) / 98.5 % max system |
| Cycle Life | >6,000 cycles @ 80 % DOD |
| Protection Rating | IP55 |
| Operating Temperature | –20 °C to 60 °C |

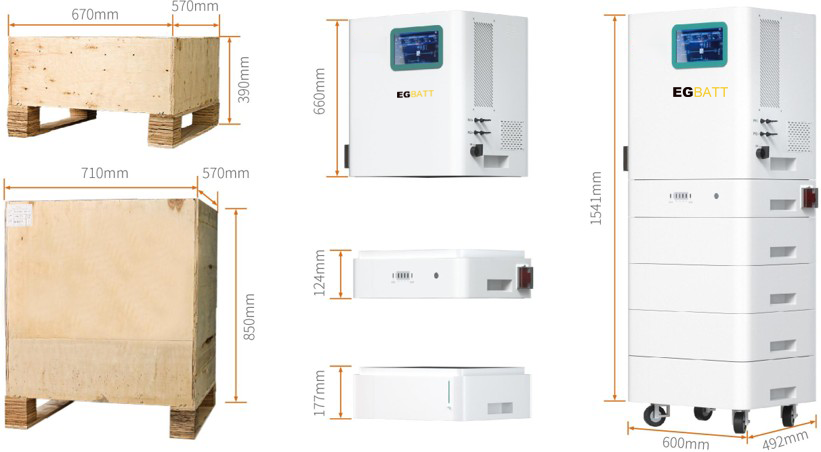

| Dimensions (W×D×H) | 600 × 492 × 2072 mm |
| Weight | 470.8 kg |
| Installation | Floor-standing stacked |
| Communication | CAN (BMS), RS485/CAN (EMS), 4G/Wi-Fi optional |
| Certifications | TÜV, CE, UN38.3, MSDS, IEC62619, IEC62109, EN50549, VDE-AR-N 4105, G98/G99, NRS097-2-1 |
Applications
- Whole-House Solar Self-Consumption
Store daytime solar energy, use at night. Reduce electricity bills by 60–80% with the 35KWh high-voltage 358V LFP stacked solar renewable energy storage.
- Backup Power for Outages
Keep HVAC, refrigerators, lights, and medical devices running during storms or blackouts. This rack-mounted LiFePO4 batteries system switches instantly.
- Peak Shaving & Demand Charge Management
Shift heavy loads from peak hours to low‑cost periods. Ideal for homes with time‑of‑use tariffs.
- Off-Grid Homes & Remote Cabins
Reliable 24/7 energy without diesel generators. The 358V high voltage lithium batteries ensure stable power in isolated locations.
Installation & Compatibility
Installation: Place the floor‑standing tower on a level concrete surface. Stack modules, connect DC busbars and BMS cables, then link to your PV array and grid. Natural cooling eliminates fan noise and maintenance.
Built-in Inverter: The 15 kVA hybrid inverter supports both grid‑tied and off‑grid modes. Compatible with standard 3‑phase 400V/50‑60Hz grids (Europe, Asia, Africa, Australia). No external inverter needed.
Environmental Requirements: IP55 protection allows indoor or sheltered outdoor installation. Altitude <2000 m, humidity ≤95%, temperature range -20°C to 60°C. The high voltage LiFePO4 Grade A lithium ion storage battery performs reliably in harsh climates.
Compatibility: Works with all major PV modules (mono/poly) and AC generators. CAN/RS485 interface allows seamless integration with smart home energy management systems (EMS). Optional 4G/Wi‑Fi for remote monitoring.
Why Choose EGBATT 35KWh HV LiFePO4 battery?
As a leading Wholesale High Voltage Battery Manufacturer and Supplier, EGBATT controls the full supply chain from Grade A cell selection (EVE, CATL, Hithium) to ISO‑certified factory assembly.
Every high-voltage lithium storage battery HVS undergoes full capacity testing, 48‑hour burn‑in, and traceability.
10-year performance warranty (≥70% capacity retention)
Free lifetime firmware updates for the BMS and inverter
24/7 English technical support with remote diagnostics
Factory-direct pricing and fast global shipping by sea to door
Customization available: logos, communication protocols, and capacity expansion
Frequently Asked Questions (FAQ)
The 35kWh high voltage LiFePO4 home battery delivers >6,000 cycles at 80% depth of discharge (DOD). Under daily cycling, this translates to 15–20 years of useful life before reaching 70% of original capacity. Grade A cells and the integrated smart BMS ensure long‑term reliability.
A typical 2,000‑2,500 sq ft home consumes 25–35 kWh per day. The 35kWh battery energy storage systems BESS provides 12–24 hours of whole‑house backup, or 2–3 days for essential loads (lights, fridge, Wi‑Fi).
The modular scalable high-voltage battery storage module from 20KWh to 35kWh. No need to replace the existing inverter or BMS
Absolutely. 358V high voltage lithium batteries offer 5–10% higher round‑trip efficiency, 70% lower cable losses, and better support for high‑power appliances like air conditioners and EV chargers. They also enable simpler, more compact wiring
No. This all in one 358V 112S1P unit includes a fully certified 15 kVA hybrid inverter with dual MPPT, grid‑tie and off‑grid capability, and EPS backup output
We provide a 10‑year full system warranty that guarantees ≥70% capacity retention under normal use (≤6,000 cycles, 80% DOD, ambient -10°C to 40°C). The warranty covers parts, labor, and technical support.
The high voltage LiFePO4 battery pack storage system is certified to IEC62619, IEC62109, CE, TÜV, UN38.3, MSDS, EN50549, VDE-AR-N 4105, G98/G99, and NRS097-2-1. Safe for global shipping and grid connection
Contact us
Ready to power your whole house with EGBATT 35kWh high voltage LiFePO4 home battery? Fill out the form below to receive lowest factory pricing!
Product & Packaging Details
Q: Do batteries include protection circuits（BMS) and connectors?
A:Protection: We supply batteries with BMS built in Protection Circuit Modules (PCM).
Connectors: We normally use standard like anderson,M8 lugs,Fast plugs or depends on OEM customer's demends.
Q: Are batteries Grade-A and brand new?
A: Yes, we use 100% brand new, Grade-A cells in all our batteries.
Q: Can you print our logo on the batteries?
A: Yes, we offer free custom logo printing with a minimal MOQ requirement.
Q: What is your standard packaging? Can it be customized?
A: Our standard is a white box per battery. We fully support customized packaging, including carton box and logo design.
Yes. EGbatt is a manufacturer located in Shenzhen, Guangdong, China. It designs and produces LiFePO4 battery packs for energy storage, electric forklifts, marine applications, golf carts, RVs, and UPS systems.
Based on automated production technology, the current product lead time is 15-25 days.
The company has strategic cooperation agreements with top manufacturers like EVE and REPT, and insists on using A+ tier One lithium iron phosphate cells for its solar batteries.
For 48V inverters, compatible brands include Victron Energy, Goodwe, Studer, Solis, LuxPower, and others. For high-voltage three-phase inverters, compatible brands include Atess, Solinteg, SAJ, Goodwe, and Solis.
EGbatt offers dealer customers a 10-year warranty and technical service for its energy storage battery products.
DoD describes how much of the battery's capacity has been used. A DoD of 100% means the battery is completely empty, while 0% means it is full.
SoC reflects the battery's charge level. A SoC of 100% means the battery is full, and 0% means it is empty.
C-rate, or power factor, indicates how quickly a battery can be charged or discharged relative to its capacity. A rating of 1C means the battery can be fully charged or discharged in one hour.
The battery uses Lithium Iron Phosphate chemistry and provides a cycle life of over 6,000 cycles at 90% Depth of Discharge, and over 10 years at one cycle per day.
kW (kilowatt) is a unit of power, measuring the rate of energy production or consumption. kWh (kilowatt-hour) is a unit of energy, measuring the total amount of work done or energy used over time.
EGbatt home batteries are suitable for both indoor and outdoor installation (depending on the model's protection level) and offer floor-standing or wall-mounted options. Common locations include garages, attics, or under eaves.
This depends on the load. As a realistic example, a 10kWh battery could run ten 100-watt light bulbs for 12 hours without recharging.
The number varies based on home size, energy consumption history, and personal goals (like which devices to run during an outage). For most systems, 2 or 3 batteries are installed. A detailed discussion of your needs is recommended for an accurate assessment.
Yes, it is possible, but it requires careful planning and significant investment. A true off-grid system needs a large enough solar array and sufficient battery storage to sustain your lifestyle. Cost and having an alternative energy source for when solar charging isn't possible are key considerations.
No. EGbatt focuses on building long-term relationships with business partners like battery distributors, solar equipment dealers, and installation contractors worldwide, not direct sales to end consumers.
EGBATT Battery Compatibility with Inverters
Perfect Matching with Mainstream Hybrid and On-grid Inverters
EGBATT lithium battery systems are tested for seamless compatibility with a wide range of inverter brands across global markets. Whether for residential, commercial, or utility-scale applications, our batteries support multiple communication protocols (CAN/RS485) and work with both low-voltage (40–60V) and high-voltage (100–1500V) inverter platforms.
- Low-Voltage System Compatibility (40–60V)
Low-voltage systems typically operate in the 48V-60V range and are widely used in home off/grid-connected solar systems. EGBATT lithium batteries offer seamless compatibility with a wide range of leading inverter brands in this range, including:
Deye, Growatt, GoodWe, ZZPower, Solis, Sinexcel, SRNE, Schneider Electric, Megarevo, AISWEI, SMA, Luxpower, Victron Energy, Afore, Hoymiles, INVT, Sofar, OutBack Power, SolaX Power, tbbpower, Sacolar, Sunsynk, Sosen, SMD Solar, Must, SOROTEC, Sunman, Voltronic Power, SAJ, and more. - High-Voltage System Compatibility (100–1500V)
High-voltage energy storage systems generally operate in the voltage range of 150V-1000V and are adapted to high-power inverters for commercial and industrial energy storage systems (80kWh-200kWh and above). EGBATT high-voltage lithium battery systems are fully compatible with leading inverter brands within this range, including:
Sol-Ark, INVT, Sinexcel, Luxpower, SClinTeg, Shanghai Nenergy, Deye, Growatt, Xina Electric, Hoymiles, Sunsynk, Hopewind, Solis, SOSEN, Megarevo, EcoCod, GoodWe, Sunways, Jingshi Technology, Kehua Tech, AISWEI, KOYOE, Sermatec, Afore, and more.
We offer integration support and testing for most mainstream hybrid and on-grid inverters. Contact EGBATT for compatibility details and custom solutions.
