60kw Rapid DC Charger | Standalone EV station for Commercial & Passenger EVs
EGBATT 60kW All-in-One Standalone DC Fast Charger | Dual-Gun Rapid EV Station Power: 60kW DC with dual-gun dynamic output (up to 200A combined); Voltage: 150V – 1000V DC, compatible with 400V passenger EVs and 800V commercial vehicles
This all-in-one standalone DC fast charger supports OCPP 1.6J, ISO 15118, and multiple connector options (CCS2/GB/T/CHAdeMO). Rated IP55 for outdoor installation, it operates reliably from -40°C to 75°C. Floor-mounted design requires no external cabinet—ideal for malls, fleet depots, and highway charging stations

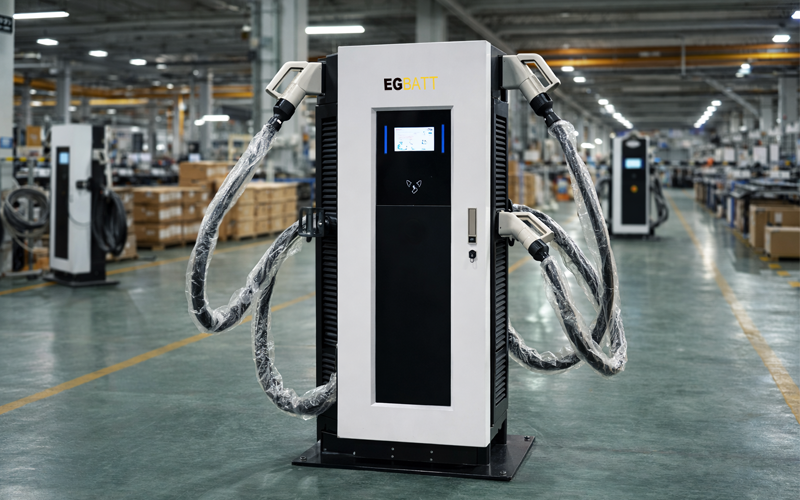

Introducing EGBATT 60KW DC fast charger
The 60kW Standalone DC Charger is a high-performance Level 3 DC fast charger engineered to meet the growing demand for electric car rapid charging stations worldwide.
As a fully integrated all-in-one charging station, it combines power modules, charging control, and user interface into a single free-standing EV charger, eliminating the need for external cabinets.
Designed for dc fast charger locations such as commercial parking lots, highway service areas, and logistics hubs, this 60kW DC fast charging station delivers fast, stable, and efficient charging for passenger EVs, buses, and trucks.
With support for simultaneous dual charging, operators can maximize utilization and revenue per station.
Whether you are building a public charging network or deploying a level 3 dc fast charger for home (shared/private use scenarios), this system offers flexibility, scalability, and strong return on investment.
Manufactured with China customize capabilities, it ensures competitive 60kW DC fast charger price while meeting international standards.
Key Features & Benefits
High-Speed 60kW Charging Performance
Delivers rapid DC charging for fast EV turnaround
Ideal 60kW charger for fast EVs including 400V & 800V platforms
Reduces charging time by up to 70% compared to AC chargers
- Benefit: More vehicles served per day = higher station revenue
All-in-One Standalone Design
DC Fast Charger is an all-in-one charging station
No separate power cabinet required
Plug-and-play deployment
- Benefit: Lower installation cost & faster project rollout
Dual Gun Simultaneous Charging
Supports simultaneous DC charging for two vehicles
Smart power distribution
- Benefit: Double utilization for high-traffic charging locations
Smart OCPP Network Integration
Supports OCPP 1.6J / ISO15118
Remote monitoring, billing, and user management
Compatible with major charging platforms
- Benefit: Easy operation of large-scale dc fast charging stations 60kW
Industrial-Grade Reliability
IP55 outdoor protection
Operates from -40°C to +75°C
Stable in harsh environments
- Benefit: Long lifespan, reduced maintenance cost
Flexible Global Customization
CCS1 / CCS2 / GB/T / CHAdeMO available
Branding, cable length, software customization
Designed for global markets
- Benefit: Perfect for distributors & EPC contractors
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Power | 60kW |
| Input Voltage | AC 380V ±15% |
| Output Voltage | 150V – 1000V DC |
| Max Output Current | 200A |
| Connector Types | CCS1 / CCS2 / GB/T / CHAdeMO |
| Charging Protocol | OCPP 1.6J / ISO15118 / DIN70121 |
| Charging Modes | RFID / APP / Plug & Charge / Standalone |
| Network | LAN / 4G / WiFi |
| Protection Level | IP55 |
| Operating Temperature | -40°C to +75°C |
| Humidity | 5% – 95% RH |
| Display | 5-inch Touchscreen |
| Cable Length | 5m (Customizable) |
| Dimensions | 690 × 1504 × 346 mm |
Applications
Commercial Parking & Retail
Perfect for malls and office buildings with high EV traffic
- Fleet & Logistics Charging
Designed for bus, truck & car charging in depots
- Highway Charging Stations
Key solution for electric car rapid charging stations
- Semi-Private Charging
Suitable for villas, apartments, and shared level 3 dc fast charger for home use
- Auto Dealerships
Enhance customer experience with fast EV charging

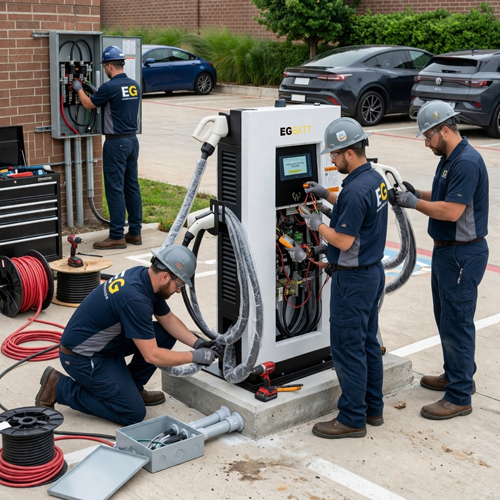

Installation & Compatibility
Easy Installation
- 3-phase AC 380V input
Floor-mounted standalone design
Fast deployment in dc fast charger locations
Electrical Requirements
- Recommended cable: ≥3×25mm² + 2×16mm²
Industrial-grade circuit protection
Wide EV Compatibility
- Works with global EV standards
Supports both passenger EVs and commercial vehicles
Smart System Integration
- OCPP platform integration
Supports standalone mode + network mode
Charging Station Profitability
A 60kW DC fast charging station is not just equipment — it's a revenue-generating asset that supports scalable EV infrastructure growth.
Typical Revenue Model:
- Average charge session values vary by market, site type, and pricing strategy
- Daily utilization depends on location, traffic volume, and charger availability
- Revenue potential scales with site selection and operational efficiency
ROI Advantage:
- Lower upfront investment compared to 120kW+ chargers
- Shorter payback period due to balanced equipment cost and utilization potential
- Ideal entry point for commercial EV charging operations seeking predictable returns
Why 60kW?
- Optimal balance between equipment cost, grid infrastructure requirements, and charging speed
- Sufficient for most passenger EVs and light commercial vehicles during typical dwell times
- Enables network expansion without heavy utility upgrades
FAQ
The 60kW DC fast charger price varies depending on connectors, customization, and quantity. EGBATT China manufacturing offers highly competitive pricing
Common dc fast charger locations include highways, malls, fleet depots, and commercial parking areas.
Yes. A 60kW charger for fast EVs is ideal for medium-traffic stations and offers excellent ROI.
Yes, it is designed for bus, truck & car, supporting high-voltage commercial EVs.
Yes, dual-gun design enables simultaneous DC charging.
It can be used in shared residential or private high-end homes needing level 3 dc fast charger for home.
Supports CCS1, CCS2, GB/T, and CHAdeMO
Yes, including branding, connectors, and software under China EGBATT factory customize services.
Inquiry Here:
Ready to deploy your 60kW DC fast charging station? Submit the form below to get pricing and customization options”
Product & Packaging Details
Q: Do batteries include protection circuits（BMS) and connectors?
A:Protection: We supply batteries with BMS built in Protection Circuit Modules (PCM).
Connectors: We normally use standard like anderson,M8 lugs,Fast plugs or depends on OEM customer's demends.
Q: Are batteries Grade-A and brand new?
A: Yes, we use 100% brand new, Grade-A cells in all our batteries.
Q: Can you print our logo on the batteries?
A: Yes, we offer free custom logo printing with a minimal MOQ requirement.
Q: What is your standard packaging? Can it be customized?
A: Our standard is a white box per battery. We fully support customized packaging, including carton box and logo design.
Yes. EGbatt is a manufacturer located in Shenzhen, Guangdong, China. It designs and produces LiFePO4 battery packs for energy storage, electric forklifts, marine applications, golf carts, RVs, and UPS systems.
Based on automated production technology, the current product lead time is 15-25 days.
The company has strategic cooperation agreements with top manufacturers like EVE and REPT, and insists on using A+ tier One lithium iron phosphate cells for its solar batteries.
For 48V inverters, compatible brands include Victron Energy, Goodwe, Studer, Solis, LuxPower, and others. For high-voltage three-phase inverters, compatible brands include Atess, Solinteg, SAJ, Goodwe, and Solis.
EGbatt offers dealer customers a 10-year warranty and technical service for its energy storage battery products.
DoD describes how much of the battery's capacity has been used. A DoD of 100% means the battery is completely empty, while 0% means it is full.
SoC reflects the battery's charge level. A SoC of 100% means the battery is full, and 0% means it is empty.
C-rate, or power factor, indicates how quickly a battery can be charged or discharged relative to its capacity. A rating of 1C means the battery can be fully charged or discharged in one hour.
The battery uses Lithium Iron Phosphate chemistry and provides a cycle life of over 6,000 cycles at 90% Depth of Discharge, and over 10 years at one cycle per day.
kW (kilowatt) is a unit of power, measuring the rate of energy production or consumption. kWh (kilowatt-hour) is a unit of energy, measuring the total amount of work done or energy used over time.
EGbatt home batteries are suitable for both indoor and outdoor installation (depending on the model's protection level) and offer floor-standing or wall-mounted options. Common locations include garages, attics, or under eaves.
This depends on the load. As a realistic example, a 10kWh battery could run ten 100-watt light bulbs for 12 hours without recharging.
The number varies based on home size, energy consumption history, and personal goals (like which devices to run during an outage). For most systems, 2 or 3 batteries are installed. A detailed discussion of your needs is recommended for an accurate assessment.
Yes, it is possible, but it requires careful planning and significant investment. A true off-grid system needs a large enough solar array and sufficient battery storage to sustain your lifestyle. Cost and having an alternative energy source for when solar charging isn't possible are key considerations.
No. EGbatt focuses on building long-term relationships with business partners like battery distributors, solar equipment dealers, and installation contractors worldwide, not direct sales to end consumers.
EGBATT Battery Compatibility with Inverters
Perfect Matching with Mainstream Hybrid and On-grid Inverters
EGBATT lithium battery systems are tested for seamless compatibility with a wide range of inverter brands across global markets. Whether for residential, commercial, or utility-scale applications, our batteries support multiple communication protocols (CAN/RS485) and work with both low-voltage (40–60V) and high-voltage (100–1500V) inverter platforms.
- Low-Voltage System Compatibility (40–60V)
Low-voltage systems typically operate in the 48V-60V range and are widely used in home off/grid-connected solar systems. EGBATT lithium batteries offer seamless compatibility with a wide range of leading inverter brands in this range, including:
Deye, Growatt, GoodWe, ZZPower, Solis, Sinexcel, SRNE, Schneider Electric, Megarevo, AISWEI, SMA, Luxpower, Victron Energy, Afore, Hoymiles, INVT, Sofar, OutBack Power, SolaX Power, tbbpower, Sacolar, Sunsynk, Sosen, SMD Solar, Must, SOROTEC, Sunman, Voltronic Power, SAJ, and more. - High-Voltage System Compatibility (100–1500V)
High-voltage energy storage systems generally operate in the voltage range of 150V-1000V and are adapted to high-power inverters for commercial and industrial energy storage systems (80kWh-200kWh and above). EGBATT high-voltage lithium battery systems are fully compatible with leading inverter brands within this range, including:
Sol-Ark, INVT, Sinexcel, Luxpower, SClinTeg, Shanghai Nenergy, Deye, Growatt, Xina Electric, Hoymiles, Sunsynk, Hopewind, Solis, SOSEN, Megarevo, EcoCod, GoodWe, Sunways, Jingshi Technology, Kehua Tech, AISWEI, KOYOE, Sermatec, Afore, and more.
We offer integration support and testing for most mainstream hybrid and on-grid inverters. Contact EGBATT for compatibility details and custom solutions.
Related products
120kW Split DC Fast Charger for Commercial EV Charging Stations
- Charger Type: Split DC Fast Charger (Power Cabinet + Dispensing Terminals)
- Total Output Power: 120 kW, dynamically allocated across 4 charging points
- Voltage Range: 200–1000 V ultra-wide output, compatible with all EVs
- Efficiency: ≥ 96% high-efficiency DC conversion
- Power Management: Intelligent load allocation & dynamic load balancing
- Applications: Commercial charging stations, fleet depots, public EV networks
- Operational Savings: Up to 25% lower electricity costs via smart load distribution
- Future-Proof: Designed for current and next-generation electric vehicles

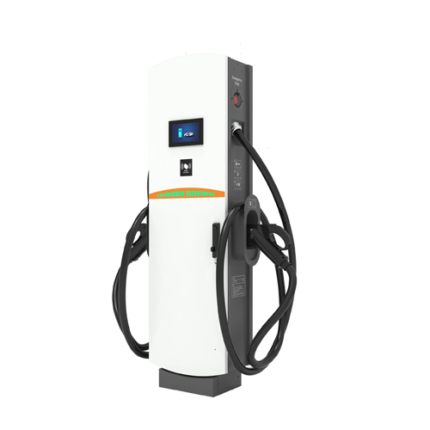

160kW 4-Gun DC Fast Charging Point | Dynamic Load Balancing for EV Fleets
