36V 5Ah UPS Lithium Battery with 12C High-Rate Discharge
A Reliable 1U Rack-Mount Battery Solution for 12C High-Rate UPS Systems

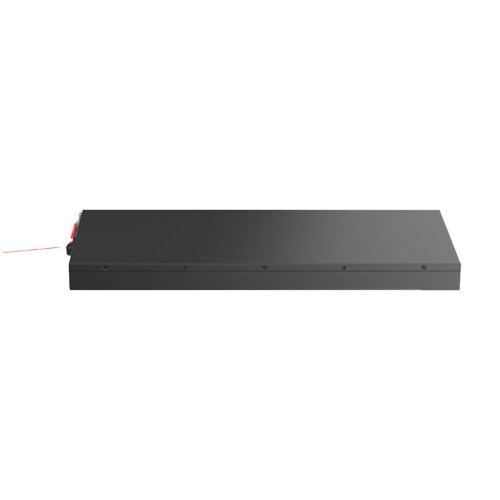

The EG-3605A is a 36V 5Ah UPS lithium battery, specially designed for high-rate built-in UPS applications with limited space, such as 1U rack-mounted UPS units. It uses Grade-A LiFePO4 cells, offering stable 192Wh output, compact size, and 12C high-rate discharge capability.
Key Features
High-Rate Discharge: Supports up to 60A continuous discharge, which equals 12C discharge rate. This makes the 36V 5Ah UPS Lithium battery suitable for high-power UPS devices with rapid power response requirements.
Stable and Safe LiFePO4 Cells: This 36V 5Ah Lithium UPS battery uses LiFePO4 chemistry, known for safety, thermal stability, and long cycle life. The internal configuration includes 12 cells in series and 2 in parallel.
Smart BMS Protection: Built-in Battery Management System provides essential protections:
Overcharge & Overdischarge
Overcurrent & Short Circuit
Over-temperature with auto-recovery
Compact Size: Only 35mm thick, with a total size of 470×207×35mm, designed to fit inside 1U standard rack enclosures.
Lightweight Design: Weighs only 5.1 kg, approximately 1/3 the weight of similar lead-acid batteries.
Communication Interfaces: Equipped with both RS232 and RS485 ports for monitoring and integration with UPS systems.
Specifications:
| ElectricalParameters (25°C) | Rated Voltage | 38.4V |
|---|
| Rated Capacity (C5) | 5Ah |
|---|
| Energy | 192Wh |
|---|
| Months Self Discharge | <1% |
|---|
| Charge Efficiency | 99.5%@ 1C |
|---|
| Discharge Efficiency | 96-99%@ 7C |
|---|
| Terminal type | Anderson SB50 |
| Internal resistance (Fully charged, 25°C) | 45mΩ |
| Cycle life | >3000 cycles @ 1C 100%D.O.D |
| Capacity affected by temperature | 40°C | 101% |
| 25°C | 100% |
| 0°C | 90% |
| -10°C | 75% |
| Nominal operating temperature | 25°C± 3°C (77°F± 5°F) |
| Operating temperature range | Discharge | – 20°C~ 60°C (-4°F ~ 140°F) |
| Charge | 0°C~ 45°C (32°F ~ 113°F) |
| Storage | 0°C~ 40°C (32°F ~ 104°F) |
| Water Dust Resistance | IP21 |
| Charge Voltage | 43.2V |
| Equalization Turn-on Voltage | 40.8V |
| Charge Current | 5A |
| Backup time | 5-15 min |
| Charge Cut off Voltage | 43.2V |
| Max Continuous Discharge Current | 60A |
| BMS Over Temperature Protection | 65±5℃ |
| Over discharge Protection Voltage | 30V |
| Over discharge Recovery Voltage | 32V |
| Short Circuit Protection | YES |
| Matched UPS | ≤2KVA |
| Cell in Series and Parallel | 12S2P |
| Mechanical | Cells | IFR26650-2500mAh |
| Container | SPCC |
Application Scenarios
This 36v 5Ah UPS Lithium battery is built for professional environments requiring compact backup power:
- Data Centers
- Enterprise Computer Rooms
- Bank Branch UPS Systems
- Medical and Laboratory Equipment
- Surveillance and Security Monitoring
- Precision Instruments and Office Power Backup
FAQ of 36V 5Ah UPS Lithium Battery:
1. What kind of UPS is the EG-3605A battery compatible with?
The 36V 5Ah UPS lithium battery is designed for built-in 1U rack-mount UPS systems, particularly those with high-rate discharge requirements (≤2KVA). Please confirm your UPS model supports external 36V battery packs and high-current discharge (up to 60A) before installation.
2. What cells are used in this battery?
This 36V 5Ah Lithium battery uses all new brand LiFePO4 cells, known for their excellent safety, thermal stability, and long cycle life. The internal configuration is 12S2P, providing a nominal voltage of 38.4V and 5Ah capacity.
3. How long can the 12C high-rate discharge 36V5Ah UPS Lithium battery provide backup power?
Typical backup time ranges from 5 to 15 minutes, depending on the load level and UPS efficiency. This UPS Lithium battery is ideal for short-duration emergency backup to allow safe shutdown or switching to generator power.
4. Is the 12C discharge real? What does it mean?
Yes, the 12C discharge rate is real and refers to its ability to discharge at up to 60A continuously (12 times its nominal 5Ah capacity). This makes the 36V 5Ah UPS Lithium battery suitable for high-current UPS applications that require fast energy output.
5. How long will this battery last?
Under proper conditions, the 36V 5Ah UPS Lithium battery offers a calendar life of over 10 years and a cycle life 4–5 times longer than typical lead-acid batteries. Actual lifespan depends on usage conditions, such as charge/discharge rate and operating temperature.
6. Can this 36V 5Ah UPS Lithium battery communicate with the UPS or monitoring system?
Yes. It is equipped with RS232 and RS485 communication interfaces for real-time monitoring, integration with intelligent UPS units, or centralized battery management systems.
7. Can I use this battery in parallel or series for larger capacity or voltage?
This 12C 36V 5Ah UPS Lithium battery is designed as a single-unit, standalone UPS battery pack. For parallel or series configurations, please consult with our battery engineer, as multiple packs require BMS coordination to ensure safety and balance.
The 36V 5Ah UPS Lithium Battery Performance Test
The 36V 5Ah UPS Lithium Battery is a practical and efficient choice for high-rate UPS systems where space is limited and performance is critical. With its LiFePO4 cells, 12C high-rate discharge, and smart BMS protection, this battery provides a balance of safety, compactness, and power. It is well-suited for 1U UPS installations in professional environments such as data centers, hospitals, and office IT systems.
This is not an oversized or over-promised battery—it is a real, field-ready UPS battery pack with precise technical data, and designed to work reliably in demanding conditions
Still using bulky, short-lived lead-acid batteries in your UPS system?
It’s time to upgrade. The 36V 5Ah UPS Lithium Battery with LiFePO4 cells and 12C high-rate discharge is not just more compact and lightweight — it’s safer, lasts longer, and performs better under pressure.
