Description

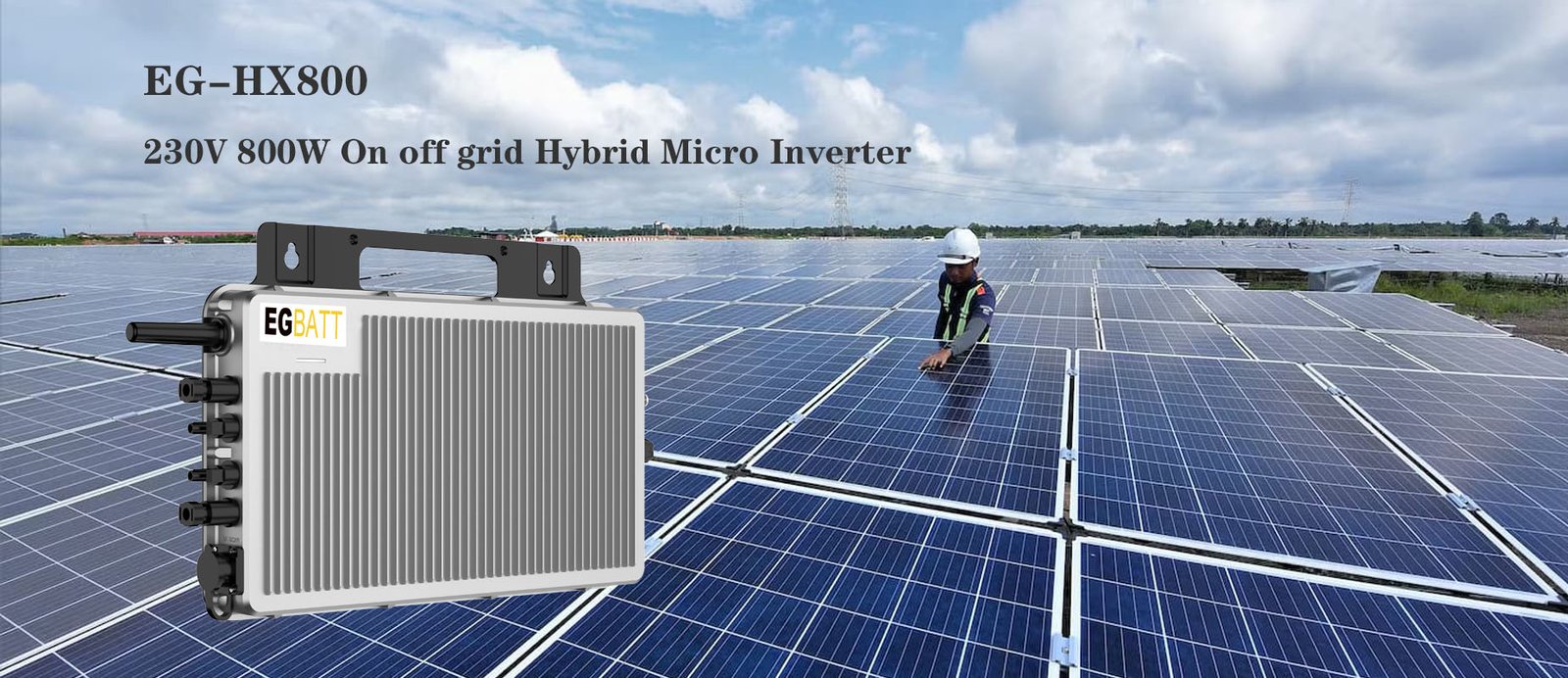

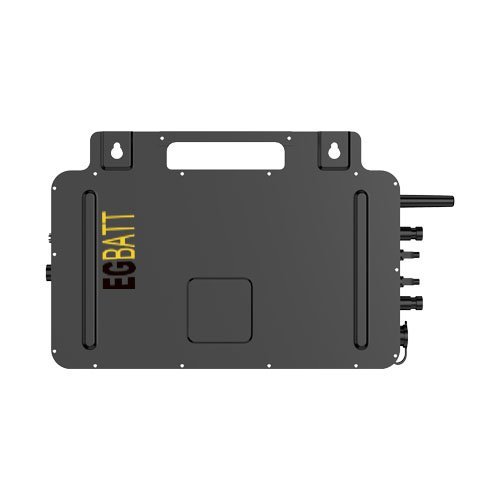

230V 800W On Off Grid Hybrid Micro Inverter with Battery Storage
This 230V 800W on off grid hybrid micro inverter with battery storage is a cutting-edge residential solar energy solution that integrates both on-grid and off-grid functions in one device.
Designed for maximum flexibility, it allows you to harness solar energy, store excess power in a lithium battery, and supply backup power during outages.
Whether you need a residential 230V 800W hybrid micro inverter with battery backup for self-consumption or a reliable off-grid solar solution, the EG-HX800 delivers exceptional performance and energy independence.
What is the 230V 800W On Off Grid Hybrid Micro Inverter with Battery Storage?
Our 230V 800W on off grid hybrid micro inverter with battery storage combines two types of inverters:
On-Grid Mode – When the grid is available, it powers your home directly from solar panels, charges the battery with surplus energy, and can export excess power to the grid.
Off-Grid Mode – When the grid fails, it automatically switches to battery and solar power, ensuring uninterrupted supply to essential loads.
This hybrid design means the 230V 800W on off grid hybrid micro inverter with battery storage is ideal for:
*Maximizing solar self-consumption.
*Reducing electricity bills.
*Providing reliable backup power during outages.
On Grid Models:
1：Self Used Mode
Application: Areas where with high electricity prices
and low subsidies
Energy priority : Load > Battery > Grid
2 ：Back-up mode
Application: For areas where power grid is unstable
Energy priority : Load > Battery > Grid
(if battery SOC≤ cutoff SOC, the load is powered by the grid )
3 ：Force Time Use Mode
Application: For areas with high subsidies
Energy priority : Load > Grid > Battery
you can set output mode by mode-key, if the key led turn on, it work at off-grid mode, or it work at on-grid mode. you can also set output mode on APP
Key Features
1. Dual Functionality – On-Grid & Off-Grid
Instant switching between modes for uninterrupted power.
Ideal for areas with unstable grid supply or frequent blackouts.
2. Battery Storage Integration
Works with 48V lithium-ion batteries.
800W AC max charging and 1000W PV max charging.
3. High Output & Efficiency
Rated AC Output: 230V, 800W continuous, 1600W peak for 20 seconds.
Pure sine wave output for sensitive appliances.
4. Intelligent Energy Management
Self-Use Mode, Backup Mode, and Force Time Use Mode for different needs.
Peak/off-peak power scheduling for cost savings.
Remote monitoring via Wi-Fi/Bluetooth and EG-Viewer App.
5. Rugged Outdoor Design
IP67 waterproof rating for outdoor installations.
Operates from -25°C to 60°C.
Specifications
| INPUT (PV DC) Model: EG-HX800 |
|---|
| Maximum Utilized Solar Power | 1000W |
| PV Input Voltage Range | 20~60V |
| MPPT Operating Voltage Range | 22~55V |
| Start-up Voltage | 25V |
| No. of MPP Trackers | 2 |
| Max. Input Current per MPPT | 20A/20A |
| Max. Short Circuit Current per MPPT | 28A/28A |
| Battery |
| Battery Type | Lithium-ion |
| Rated Battery Voltage | 48V |
| Battery Voltage Range | 40~60V |
| AC Max. Charging Power | 800W |
| PV Max. Charging Power | 1000W |
| Max. Disharging Power | 800 |
| Grid |
| Rated AC Voltage | 230V |
| Rated AC Frequency | 50Hz/60Hz |
| Rated AC Output Current | 3.48A |
| Rated AC Output Power | 800W |
| Max. AC Intput Current | 3.48A |
| Max. AC Intput Power | 800W |
| PF | 0.99(Adjustable from 0.9 leading to0.9 lagging) |
| THDi | ＜3% |
| EPS |
| Rated Output Voltage | 230V |
| Rated Output Frequency | 50Hz/60Hz |
| Rated Output Current | 3.48A |
| Peak Power | 1600W(20s) |
| THDv | ＜3% |
| Protection |
| Over Current/Voltage Protection | YES |
| Anti-islanding Protection | YES |
| AC Short-circuit Protection | YES |
| Ground fault monitoring | YES |
| AC/DC Surge Protection Type II | YES |
| IP class | IP67 |
| General |
| Dimensions(W*H*D) | 458mm*263mm*42mm |
| Weight | 6.5kg |
| Relative Humidity | 0~100% |
| Operating Temperature Range | -25~60℃, >45℃ derating |
| Storage Temperature Range | -25~60℃ |
| Communication Interface | CAN/Wi-Fi/Blue tooth |
| Cooling Method | Natural convection |
| Altitude | <2000m |
| Certification | VDE4105 IEC/EN 62109-1 IEC/EN 62109-1 /CE |
Why Choose the 230V 800W On Off Grid Hybrid Micro Inverter with Battery Storage?
Uninterrupted Power
Perfect for backup power in power outage situations.
Lower Electricity Bills
Store solar energy for night-time or peak rate usage.
Flexible Applications
Suitable for both grid-tied and off-grid installations.
Smart Monitoring
Control and track your system from anywhere.
Applications
- The EG-HX800 230V 800W on off grid hybrid micro inverter with battery storage is ideal for:
- Residential solar systems with battery backup.
- Areas with high electricity costs and low feed-in tariffs.
- Off-grid homes needing reliable solar power.
- Critical load backup for home and small businesses.
Ready to take the next step?
The EG-HX800 230V 800W on off grid hybrid micro inverter with battery storage is designed to give you reliable solar energy, efficient battery storage, and uninterrupted power supply—all in one compact unit.
Whether you’re looking to cut electricity costs, secure backup power, or boost solar self-consumption, this hybrid micro inverter is the perfect choice.
Fill out the inquiry form below to get detailed pricing, specifications, and shipping information. Our team will respond promptly with a tailored solution for your residential or off-grid solar project.
Let’s power your home with smarter, greener energy—starting today!
