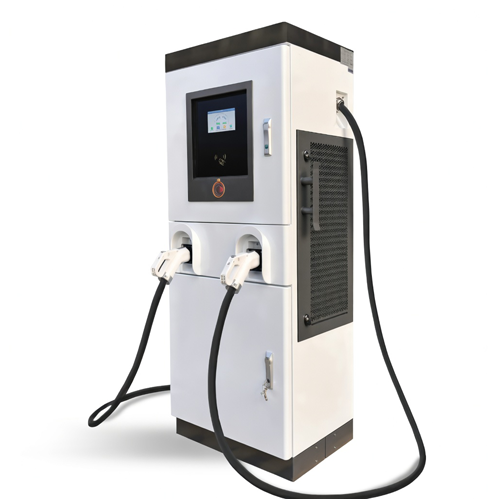

180kW DC Fast Charger | Scalable EV Charging Station for Commercial Fleets, Trucks & Buses
EGBATT All-In-One 180kW DC fast charging station delivers ultra-fast performance for demanding commercial applications. Engineered as a scalable EV charging solution, it supports fleet depots, transit hubs, and public networks with intelligent energy management.
The floor standing EV charger station outdoor design ensures reliable operation in harsh environments, while dual-gun output maximizes station throughput
- Ultra-Fast Charging (Up to 180kW); Dual Charging for Higher Throughput
- Intelligent Power Distribution; Modular & Scalable Design
- Reliable Outdoor Performance; OCPP Compatible for Smart Management
Charging Solution Overview

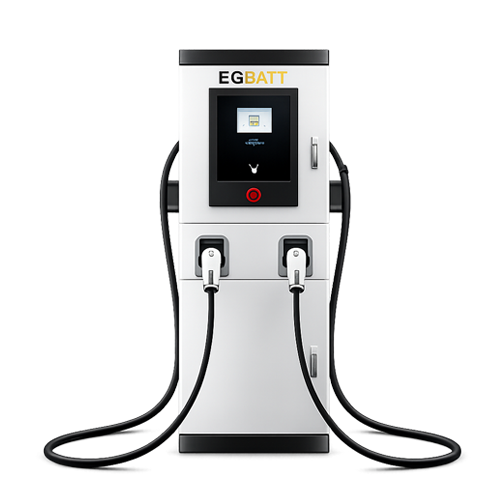

EGBATT 180kW EV charging station for fleet operations is a high-power DC fast charger designed to minimize downtime and maximize efficiency. Built as a commercial DC charger with GB/T, CCS2, and NACS compatibility, it serves a wide range of vehicles — from passenger EVs to heavy-duty electric trucks and buses.
The untra-fast DC charger system’s scalable architecture allows operators to start at lower power levels and upgrade as fleet size grows, protecting long-term investments. Its dual-gun design enables simultaneous charging for two vehicles, improving station utilization and reducing waiting time during peak hours.
The floor-standing, IP55-rated enclosure ensures stable outdoor operation, making it suitable for long-term deployment in demanding environments such as logistics depots, transit hubs, and public charging sites.
With support for OCPP 1.6, load balancing, and remote monitoring, it functions equally well as a standalone unit or as part of a networked charging infrastructure, enabling efficient energy management and scalable fleet electrification.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Scalable power output | Future-proof your investment. Scale capacity as your fleet grows without replacing core hardware. |

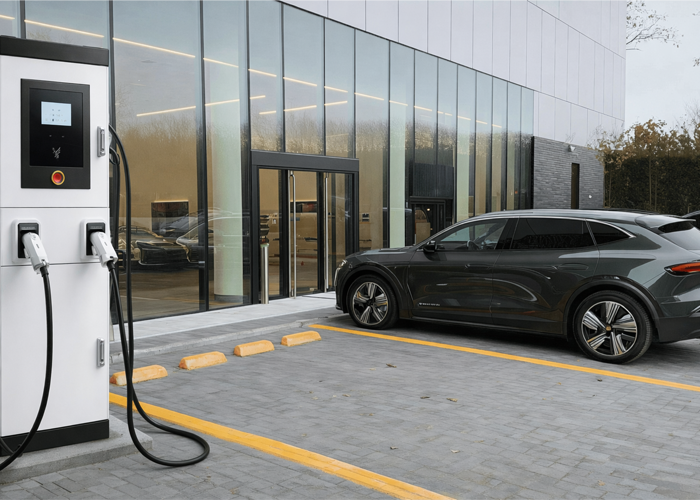

| Dual-gun simultaneous charging | Serve two vehicles at once. Maximize utilization and reduce wait times at busy sites. |
| Smart energy management with OCPP | Integrate with back-end platforms for remote monitoring, billing, and dynamic load balancing. |
| Ultra-fast charging performance | Reduce vehicle downtime. A 180kW charger can add significant range to electric buses and trucks during short stops. |
| Rugged IP55 outdoor design | Built for floor standing installation in extreme temperatures (-40°C to 75°C) and weather conditions. |

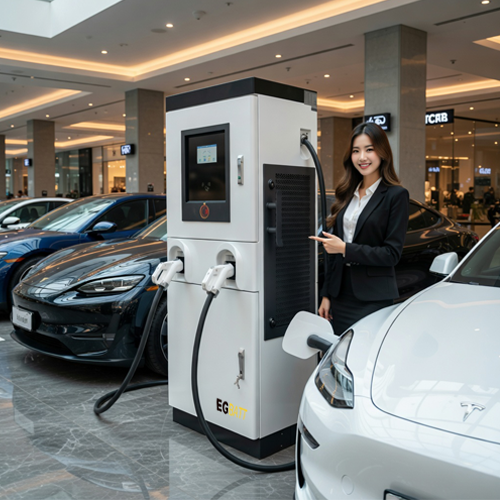

| Multi-standard compatibility | Supports GB/T, CCS2, and NACS — one station serves mixed fleets and public users. |
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | EG-DC-FQ |
| Power Ratings | 60kW / 80kW / 120kW / 160kW / 180kW (scalable) |
| Input Voltage | AC 380V ±15% (3P+N+PE) |
| Output Voltage Range | 150 – 1000 VDC |
| Input Current (180kW) | 0 – 310 A |
| Output Current (180kW) | 0 – 250 A |
| Operating Temperature | -40°C to 75°C (derating above 55°C) |
| Humidity | 5% – 95% RH, non-condensing |
| Altitude | ≤2000 m |
| Protection Rating | IP55 |
| Connector Options | GB/T, CCS2, NACS |
| Housing Dimensions (W×H×D) | 700 × 1820 × 520 mm |
| Cable Length | 5 m (customizable) |
| Charging Protocols | GB/T 27930, CHAdeMO 2.0, DIN 70121, ISO 15118, OCPP 1.6 (JSON) |
| Display | 7-inch touch screen |
| Network Interfaces | Standard: CAN/485/LAN; Optional: 4G, GPRS, WiFi |
| Charging Modes | RFID card, APP, OCPP, load balancing (optional) |
Why Choose EGBATT DC EV Charging Station?er
- Maximize Charging Efficiency
Deliver ultra-fast charging with intelligent power allocation (e.g. 90kW + 90kW or dynamic split)
- Increase ROI per Charging Point
Serve more vehicles per day and improve station profitability
- Built for 24/7 Commercial Use
Industrial-grade components ensure long-term reliability
- Smart Network Integration
Supports OCPP for remote monitoring, billing, and energy optimization
- Warranty
Backed by a 5-year warranty and lifetime technical support for worry-free operation

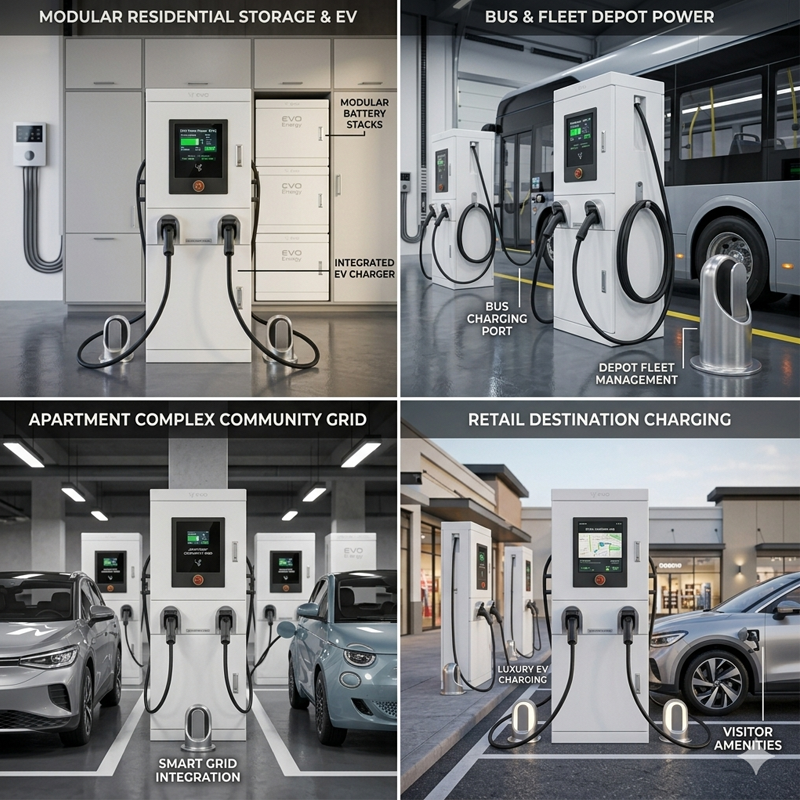

Applications
This high power DCFC is deployed across diverse environments where reliability and speed are critical.
- Fleet Depots & Logistics Centers

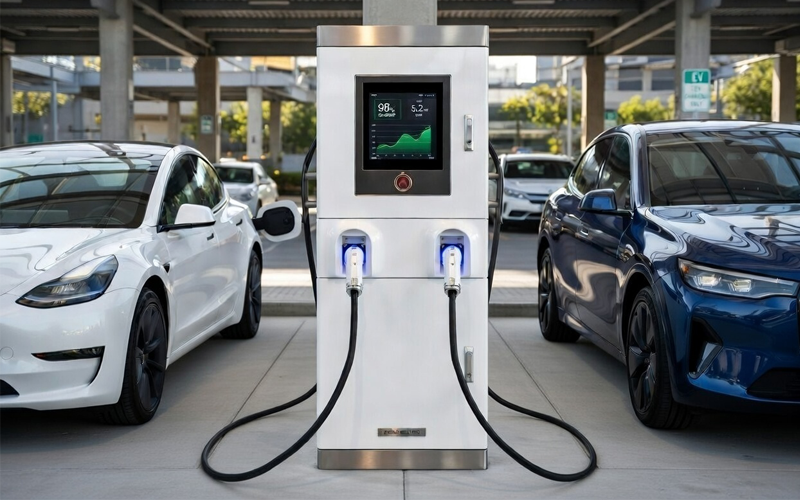

Electrify delivery fleets with a commercial DC charger that operates reliably in depot conditions. Multiple electric trucks and buses can be charged overnight or between shifts, ensuring vehicles are ready for service.
- Bus Terminals & Transit Hubs
Transit authorities depend on uptime. The EGBATT DC fast charging station enables rapid turnaround for electric buses, supporting consistent service schedules even in high-frequency operations.
- Highway Corridors & Public Charging Hubs
Positioned along major routes, the floor standing EV charger 180kW outdoor serves both passenger EVs and commercial vehicles. Dual-gun output reduces wait times and increases station profitability.
- Corporate & Workplace Charging

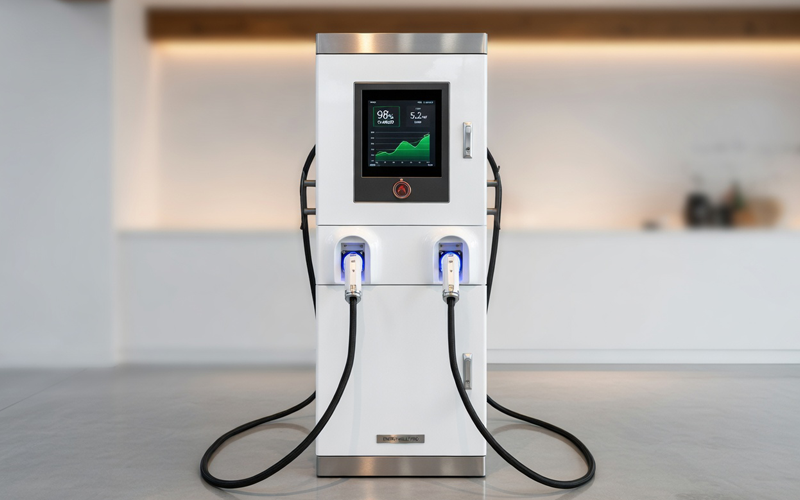

Support employee EV adoption and electrify corporate fleets with a scalable charging infrastructure that grows with your needs.
- Retail & Destination Centers

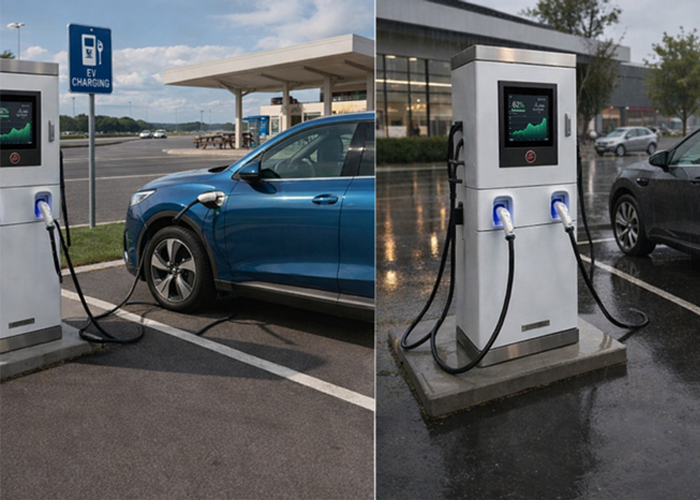

Attract EV-driving customers with ultra-fast charging. The ultra fast DC charging Station enhances customer experience while generating incremental revenue.
Installation & Compatibility
- Installation Overview
The floor standing EV charger 180kW outdoor is designed for ground mounting with minimal civil work.
* Mounting: Ground / floor standing
* Cable Entry: Bottom entry via Φ130 conduit
* Foundation: Direct mounting on hardened concrete using expansion screws
* Wiring: 3P+N+PE, AC 380V ±15%
* Recommended Cable (180kW): ≥3×150+2×70 mm² (YJV, temperature rating -40°C to 90°C)
- Compliance & Safety
Critical Safety Requirement: Before powering on, ensure the equipment casing is effectively grounded. Improper grounding creates a risk of electric shock.
Regulatory Compliance: This charging station complies with IEC 61851-23 and GB/T 18487.1 safety standards. Installation must be performed by qualified electrical personnel in accordance with local electrical codes (NEC, IEC, or equivalent). The unit includes Type B RCD protection and overcurrent protection devices as per regulatory requirements.
Environmental & Site Requirements
| Parameter | Requirement |
|---|---|
| Operating Temperature | -40°C to 75°C (derating above 55°C) |
| Protection | IP55 — suitable for outdoor, dust-tight, protected against water jets |
| Altitude | ≤2000 m |
| Ventilation | Natural convection with filtered air intakes; maintain clearance around cabinet for airflow |
Vehicle & Network Compatibility
| Category | Details |
|---|---|
| Connector Standards | GB/T, CCS2, NACS (field-configurable) |
| Vehicle Compatibility | Passenger EVs, electric trucks, electric buses, light commercial vehicles |
| Charging Protocols | GB/T 27930, CHAdeMO 2.0, DIN 70121, ISO 15118 |
| Network Protocols | OCPP 1.6 (JSON), CAN, RS485, LAN, 4G, GPRS, WiFi |
| Operating Modes | Standalone (RFID), Network (OCPP), Portable (no authentication) |
FAQ
Actual charging time depends on battery size, state of charge, and the vehicle’s acceptance rate. For a typical 300kWh electric bus, a 180kW DC fast charging station can deliver approximately 120–150 kWh in one hour — enough to support a full shift for many transit routes. Charging from 20% to 80% typically takes 45–70 minutes under optimal conditions.
Yes. In standalone mode, charging is initiated and settled via RFID cards without internet connectivity. This is ideal for private depots, remote sites, or locations where cloud management is not required.
Yes. The unit is available with GB/T, CCS2, or NACS connectors. For mixed fleets, multiple units with different connector types can be deployed, or a single unit can be configured to customer specifications.
Fleet operators benefit from reduced downtime, scalable capacity, and lower total cost of ownership. A 180kW charger balances power output with infrastructure costs, allowing overnight charging for larger fleets or rapid top-ups during the day. The scalable design supports phased electrification.
Pricing depends on configuration (connector type, network features, load balancing), order volume, and customization requirements. For a detailed quote tailored to your project, please use the Request a Quote section below.
Yes. With an IP55 enclosure and an operating range of -40°C to 75°C, this unit is designed for outdoor installation in diverse climates — from freezing winters to high-temperature environments. It includes thermal management with derating above 55°C to protect internal components.
The charging station complies with IEC 61851-23 and GB/T 18487.1 standards. It includes integrated overcurrent protection, Type B RCD, surge protection, and emergency stop functionality. All electrical installations must be performed by certified professionals to ensure compliance with local regulations.
Yes. The system is OCPP 1.6 compliant and supports load balancing as an optional feature. This enables integration with back-end platforms for remote monitoring, smart grid management, and dynamic power distribution across multiple chargers
Inquiry:
Looking to deploy a reliable 180kW DC fast charging station for your fleet or commercial location? Contact our team today for pricing, technical consultation, and customized solutions.
Product & Packaging Details
Q: Do batteries include protection circuits（BMS) and connectors?
A:Protection: We supply batteries with BMS built in Protection Circuit Modules (PCM).
Connectors: We normally use standard like anderson,M8 lugs,Fast plugs or depends on OEM customer's demends.
Q: Are batteries Grade-A and brand new?
A: Yes, we use 100% brand new, Grade-A cells in all our batteries.
Q: Can you print our logo on the batteries?
A: Yes, we offer free custom logo printing with a minimal MOQ requirement.
Q: What is your standard packaging? Can it be customized?
A: Our standard is a white box per battery. We fully support customized packaging, including carton box and logo design.
Yes. EGbatt is a manufacturer located in Shenzhen, Guangdong, China. It designs and produces LiFePO4 battery packs for energy storage, electric forklifts, marine applications, golf carts, RVs, and UPS systems.
Based on automated production technology, the current product lead time is 15-25 days.
The company has strategic cooperation agreements with top manufacturers like EVE and REPT, and insists on using A+ tier One lithium iron phosphate cells for its solar batteries.
For 48V inverters, compatible brands include Victron Energy, Goodwe, Studer, Solis, LuxPower, and others. For high-voltage three-phase inverters, compatible brands include Atess, Solinteg, SAJ, Goodwe, and Solis.
EGbatt offers dealer customers a 10-year warranty and technical service for its energy storage battery products.
DoD describes how much of the battery's capacity has been used. A DoD of 100% means the battery is completely empty, while 0% means it is full.
SoC reflects the battery's charge level. A SoC of 100% means the battery is full, and 0% means it is empty.
C-rate, or power factor, indicates how quickly a battery can be charged or discharged relative to its capacity. A rating of 1C means the battery can be fully charged or discharged in one hour.
The battery uses Lithium Iron Phosphate chemistry and provides a cycle life of over 6,000 cycles at 90% Depth of Discharge, and over 10 years at one cycle per day.
kW (kilowatt) is a unit of power, measuring the rate of energy production or consumption. kWh (kilowatt-hour) is a unit of energy, measuring the total amount of work done or energy used over time.
EGbatt home batteries are suitable for both indoor and outdoor installation (depending on the model's protection level) and offer floor-standing or wall-mounted options. Common locations include garages, attics, or under eaves.
This depends on the load. As a realistic example, a 10kWh battery could run ten 100-watt light bulbs for 12 hours without recharging.
The number varies based on home size, energy consumption history, and personal goals (like which devices to run during an outage). For most systems, 2 or 3 batteries are installed. A detailed discussion of your needs is recommended for an accurate assessment.
Yes, it is possible, but it requires careful planning and significant investment. A true off-grid system needs a large enough solar array and sufficient battery storage to sustain your lifestyle. Cost and having an alternative energy source for when solar charging isn't possible are key considerations.
No. EGbatt focuses on building long-term relationships with business partners like battery distributors, solar equipment dealers, and installation contractors worldwide, not direct sales to end consumers.
EGBATT Battery Compatibility with Inverters
Perfect Matching with Mainstream Hybrid and On-grid Inverters
EGBATT lithium battery systems are tested for seamless compatibility with a wide range of inverter brands across global markets. Whether for residential, commercial, or utility-scale applications, our batteries support multiple communication protocols (CAN/RS485) and work with both low-voltage (40–60V) and high-voltage (100–1500V) inverter platforms.
- Low-Voltage System Compatibility (40–60V)
Low-voltage systems typically operate in the 48V-60V range and are widely used in home off/grid-connected solar systems. EGBATT lithium batteries offer seamless compatibility with a wide range of leading inverter brands in this range, including:
Deye, Growatt, GoodWe, ZZPower, Solis, Sinexcel, SRNE, Schneider Electric, Megarevo, AISWEI, SMA, Luxpower, Victron Energy, Afore, Hoymiles, INVT, Sofar, OutBack Power, SolaX Power, tbbpower, Sacolar, Sunsynk, Sosen, SMD Solar, Must, SOROTEC, Sunman, Voltronic Power, SAJ, and more. - High-Voltage System Compatibility (100–1500V)
High-voltage energy storage systems generally operate in the voltage range of 150V-1000V and are adapted to high-power inverters for commercial and industrial energy storage systems (80kWh-200kWh and above). EGBATT high-voltage lithium battery systems are fully compatible with leading inverter brands within this range, including:
Sol-Ark, INVT, Sinexcel, Luxpower, SClinTeg, Shanghai Nenergy, Deye, Growatt, Xina Electric, Hoymiles, Sunsynk, Hopewind, Solis, SOSEN, Megarevo, EcoCod, GoodWe, Sunways, Jingshi Technology, Kehua Tech, AISWEI, KOYOE, Sermatec, Afore, and more.
We offer integration support and testing for most mainstream hybrid and on-grid inverters. Contact EGBATT for compatibility details and custom solutions.
Related products
120kW Split DC Fast Charger for Commercial EV Charging Stations
- Charger Type: Split DC Fast Charger (Power Cabinet + Dispensing Terminals)
- Total Output Power: 120 kW, dynamically allocated across 4 charging points
- Voltage Range: 200–1000 V ultra-wide output, compatible with all EVs
- Efficiency: ≥ 96% high-efficiency DC conversion
- Power Management: Intelligent load allocation & dynamic load balancing
- Applications: Commercial charging stations, fleet depots, public EV networks
- Operational Savings: Up to 25% lower electricity costs via smart load distribution
- Future-Proof: Designed for current and next-generation electric vehicles
160kW 4-Gun DC Fast Charging Point | Dynamic Load Balancing for EV Fleets

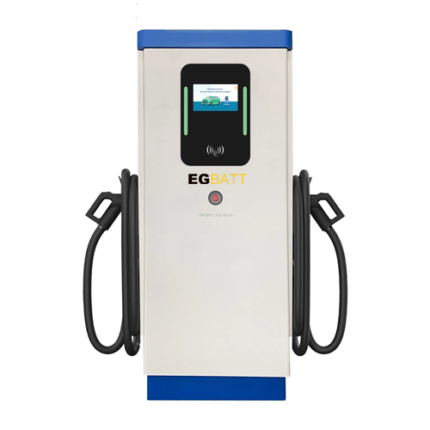

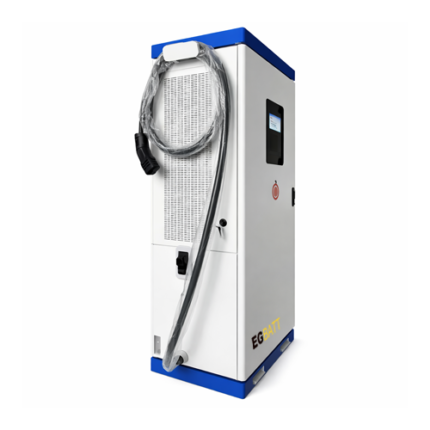

300kW Heavy-Duty DC Fast Charger | Outdoor Fleet & Bus/Truck EV Solution
