Description

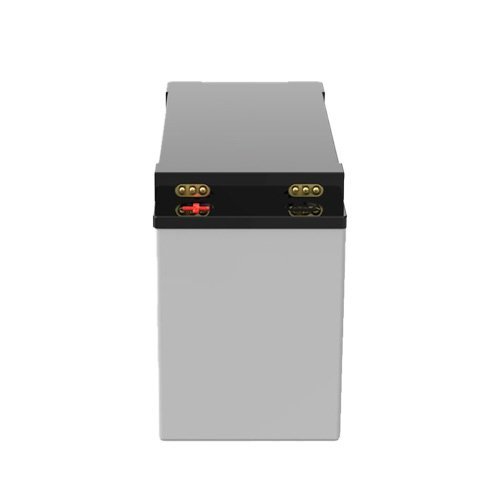

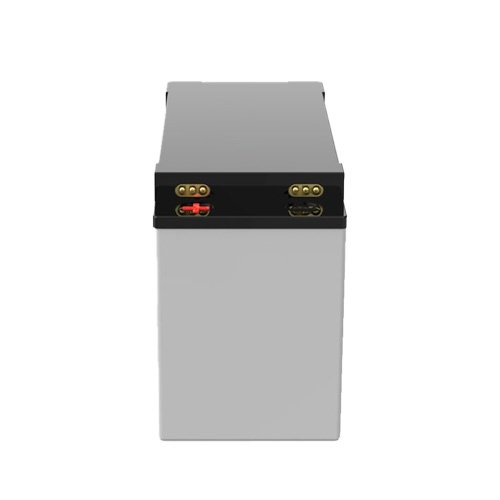

12V 6Ah UPS Lithium LiFePO4 Battery for UPS system
This UPS Lithium 12V 6Ah Battery is engineered with advanced LiFePO4 cells to provide high safety, long life, compact size, and exceptional performance. With 76.8Wh of reliable energy, it is ideal for critical UPS backup power, especially for systems ≤ 0.5KVA.
Whether you’re replacing outdated lead-acid batteries or upgrading to next-generation lithium, this 12Voltage 6Ah battery is your efficient, lightweight, and smart power solution.
Key Features
- Longer Cycle Life:Up to 15x longer than lead-acid—over 3000+ cycles at 80% DOD.
- Light Weight: Only 1kg, about 1/3 the weight of similar lead-acid batteries.
- High Efficiency:>92% round-trip energy efficiency.
- Fast Charging:Full charge in less time with 6A charging current.

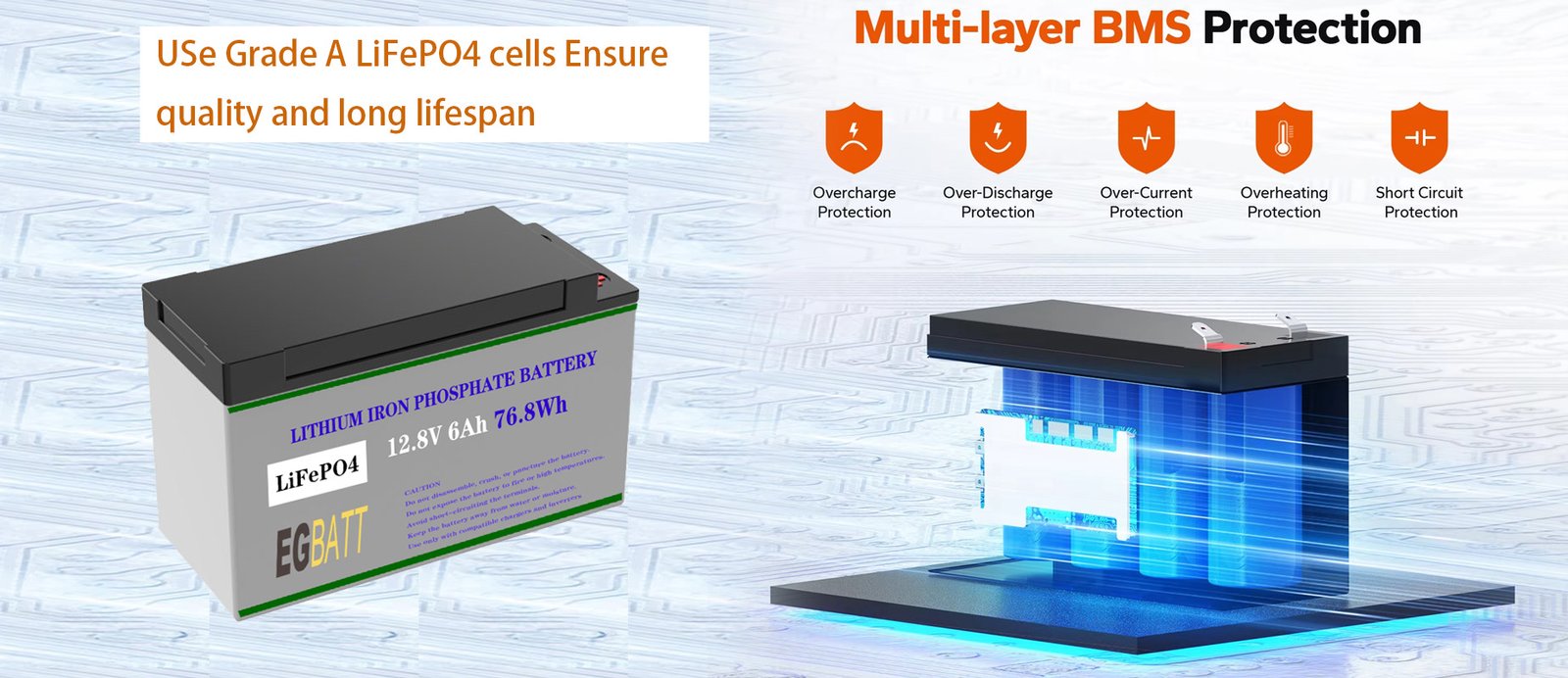

- Smart BMS Integrated:Built-in protections against overcharge, over-discharge, short circuit, overcurrent, and temperature.
- High Discharge Rate:Supports up to 7.5C discharge with a max continuous output of 45A.
- Low Self-Discharge:<1% per month—ideal for long-term storage or intermittent usage.
- Compact Size:Only 150*68*94mm, ideal for tight UPS compartments.
- IP65 Rated Enclosure: Water and dust-resistant ABS+PC case.
Specification:
| ElectricalParameters (25°C) | Rated Voltage | 12.8V |
|---|
| Rated Capacity (C5) | 6Ah@25°C |
|---|
| Energy | 76.8Wh |
|---|
| Months Self Discharge | <1% |
|---|
| Charge Efficiency | 99.5%@ 1C |
|---|
| Discharge Efficiency | 96-99%@ 7.5C |
|---|
| Terminal type | MR30PW-M |
| Internal resistance (Fully charged, 25°C) | 30mΩ |
| Cycle life | >3000 cycles @ 1C 100%D.O.D |
| Capacity affected by temperature | 40°C | 101% |
| 25°C | 100% |
| 0°C | 90% |
| -10°C | 75% |
| Nominal operating temperature | 25°C± 3°C (77°F± 5°F) |
| Operating temperature range | Discharge | – 20°C~ 60°C (-4°F ~ 140°F) |
| Charge | 0°C~ 45°C (32°F ~ 113°F) |
| Storage | 0°C~ 40°C (32°F ~ 104°F) |
| Water Dust Resistance | IP65 |
| Charge Voltage | 14.4V |
| Equalization Turn-on Voltage | 14V |
| Charge Current | 6A |
| Backup time | 8-15 min |
| Charge Cut off Voltage | 14.6V |
| Max Continuous Discharge Current | 45A |
| BMS Over Temperature Protection | 65±5℃ |
| Overdischarge Protection Voltage | 9.2V |
| Overdischarge Recovery Voltage | 10.8V |
| Short Circuit Protection | YES |
| Matched UPS | ≤0.5KVA |
| Cell in Series and Parallel | 4S2P |
| Mechanical | Cells | IFR26650-3000mAh |
| Container | ABS+PC |
Application Scenarios
Choose 12V 6Ah Lithium battery for UPS backup:
Made from premium-grade LiFePO4 cells

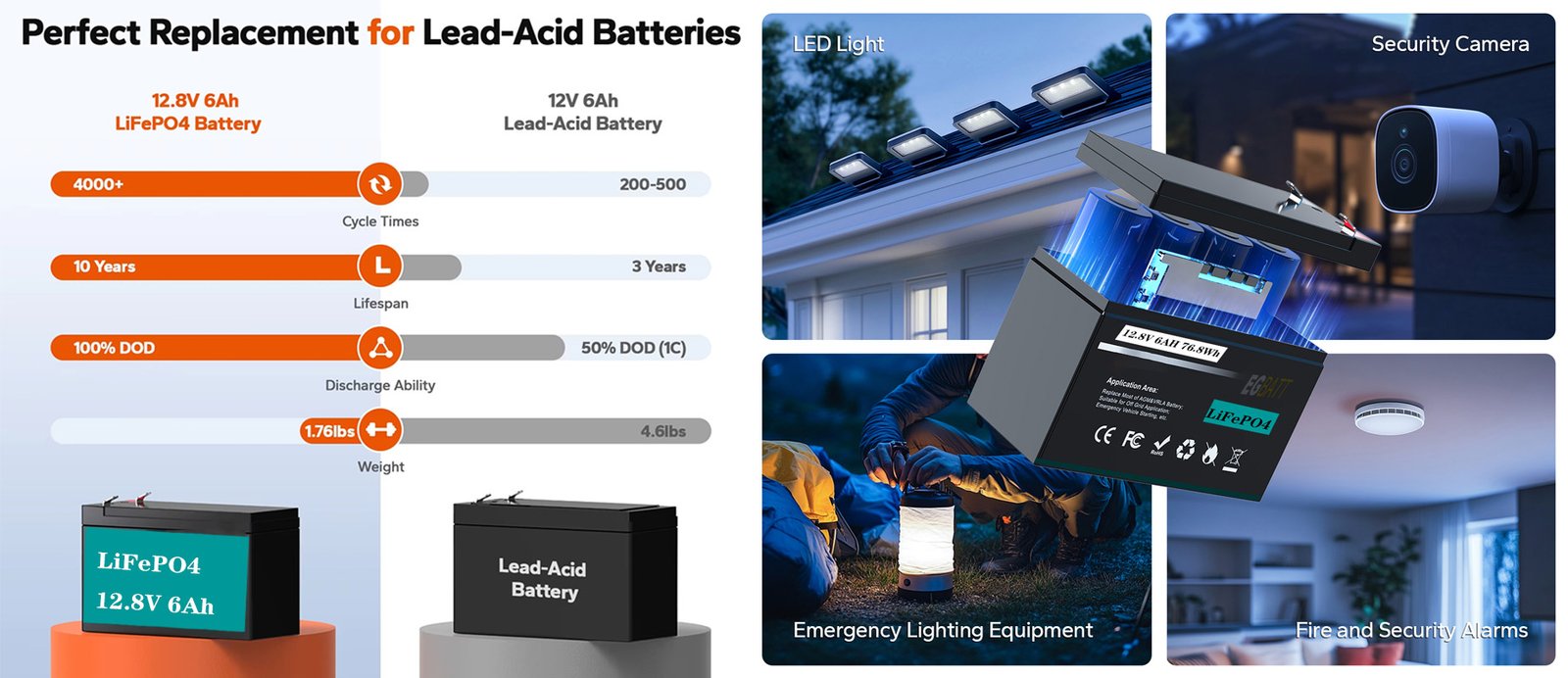

Ideal replacement for traditional 12V lead-acid batteries
7.5C Max Continuous Discharge Current can 45A
Safer chemistry, no explosion or thermal runaway
Over 10 years calendar life
Seamless integration into UPS systems
Why Choose the High Discharge Rate Lithium battery for UPS system?
The 12V 6Ah LiFePO4 UPS lithium battery supports a 7.5C max continuous discharge rate (up to 45A), far beyond standard lithium or lead-acid batteries. Here’s why it matters:
Key Benefits of High Discharge Rate:
1. Instant Power for High-Demand Equipment
The 7.5C high discharge capability ensures your UPS or other high-load devices get the power they need instantly — no lag, no dropouts. This is crucial for equipment that requires high surge current during startup, such as motors, compressors, or inverters.
2. Greater System Stability
Avoid system shutdowns or overcurrent warnings. this 12V 6Ah UPS lithium battery with 45A continuous discharge, the battery easily handles peak power demands without voltage drops, protecting both your battery and your devices.
3. Fewer Batteries Required
Lower discharge batteries often need to be paralleled to meet higher current loads. Our 12V 6Ah UPS lithium battery with high-rate discharge 7.5C design can reduce or eliminate the need for multiple units — saving cost, space, and wiring complexity.
4. Higher Compatibility & Versatility
Ideal for UPS ≤0.5KVA, power tools, mobile energy storage, telecom systems, and more. The wide application range makes this 12V 6Ah UPS lithium battery a true all-in-one power solution.
5. Enhanced Safety and Lifespan
12V 6Ah UPS Lithium LiFePO4 Battery with high-rate discharge design use stronger cell construction and advanced BMS, ensuring better heat dissipation, safer performance, and longer life even under high loads.

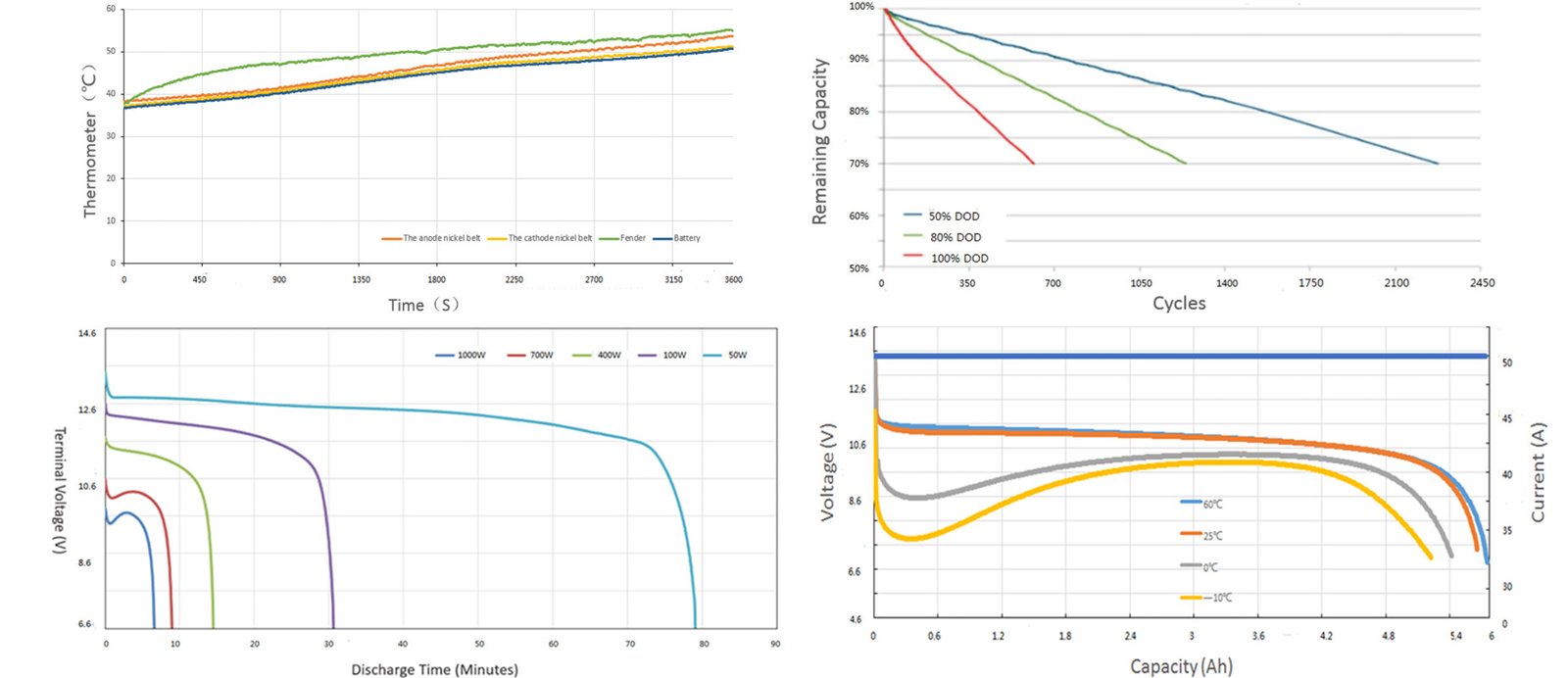

12V 6Ah UPS Lithium Battery Performance Graphs Overview
Summary
the 12V 6Ah UPS Lithium battery with 7.5C high discharge rate gives you more power, better reliability, and fewer limitations. Whether you’re powering critical UPS systems or compact power devices, this battery delivers consistent high-current performance without compromise.
