Description
12KW 18KPV Hybrid Inverter for Home Solar Battery
If you’re searching for an EG4 18kPV All-In-One Hybrid Inverter replacement that offers the same high performance at a more competitive price, the EG-12KW 18KPV Hybrid Inverter is your ideal choice.
This all-in-one solar inverter is designed for U.S. homes and light commercial solar systems, providing outstanding reliability, efficiency, and long-term peace of mind.
With 18kW PV input capacity and 12kW continuous AC output, it delivers the same strong performance U.S. customers expect, but with easier installation and added flexibility.
Perfect Alternative to the EG4 18KPV Hybrid Inverter
Just like the EG4 18KPV Hybrid Inverter, the EGBATT 12KW unit integrates solar PV input (up to 18,000W), battery storage, and grid or generator input into one dependable system.
With 18kW PV input capacity and 12kW continuous AC output, it delivers stable performance and high energy efficiency — exactly what U.S. users expect from a premium 48V hybrid inverter.
The EGBATT inverter goes a step further with 4 MPPT trackers, compared to 3 on the EG4 model. This design maximizes solar harvest even when panels face multiple roof directions or experience partial shading. The result? More usable solar energy and less wasted potential.
Compact, Reliable, and Installer-Friendly
Many homeowners who previously used the EG4 18KPV 48V Hybrid Inverter appreciate how the EGBATT 12KW Hybrid Inverter simplifies installation, reduces wiring complexity, and cuts total system cost.
Its split-phase 120/240V or 120/208V output makes it ideal for whole-home backup or light commercial use, powering everything from HVAC systems to sensitive electronics.
The compact all-in-one solar inverter design ensures both easy setup and long-term reliability, making it a perfect EG4 18KPV Hybrid Inverter all-in-one solar inverter alternative.
Built for Energy Storage Expansion
The EG-12KW 18kPV All-In-One Hybrid Inverter is engineered with scalability in mind. Homeowners and businesses can easily expand their energy storage capacity as demand grows—ensuring the system remains future-ready.
Unlike many other 12KW inverters for energy storage systems, the EGBATT model is factory-optimized to work seamlessly with EGBATT lithium batteries, offering smooth communication, high efficiency, and unbeatable value
If you are considering EG4 18kPV All-In-One Hybrid Inverter, the EG-12KW 18KPV Hybrid Inverter delivers equivalent or better performance at a lower cost, with easier integration and better support.
Requently Asked Questions
1. What makes the EG-12KW 18KPV Hybrid Inverter a good alternative to the EG4 18kPV All-In-One Hybrid Inverter?
If you’ve been considering the EG4 18KPV Hybrid Inverter, you’ll find the EG- 12KW 18KPV Hybrid Inverter offers nearly identical specs — 18,000W PV input and 12KW AC output — but with a few practical upgrades.
It includes 4 MPPTs instead of 3, allowing it to capture more solar energy from different roof angles. It’s also more compact, easier to install, and offered at a lower factory-direct price.
2. Can this inverter work with existing EG4 batteries or other 48V battery systems?
Yes. The 18KPV 12KW Hybrid Inverter is compatible with most 48V lithium battery systems, including those paired with EG4 inverters. However, when used with EGBATT LiFePO4 batteries, communication and system efficiency are optimized — meaning smoother operation and higher charge/discharge accuracy.
3. Is the 18KPV 12KW Hybrid Inverter suitable for whole-home backup?
Absolutely. This inverter supports split-phase 120/240V or 120/208V output, making it ideal for powering an entire home or small business. Whether you’re running HVAC systems, lighting, kitchen appliances, or sensitive electronics, the 12KW off-grid hybrid inverter provides stable and continuous energy.
4. Does it require internet or Wi-Fi to operate?

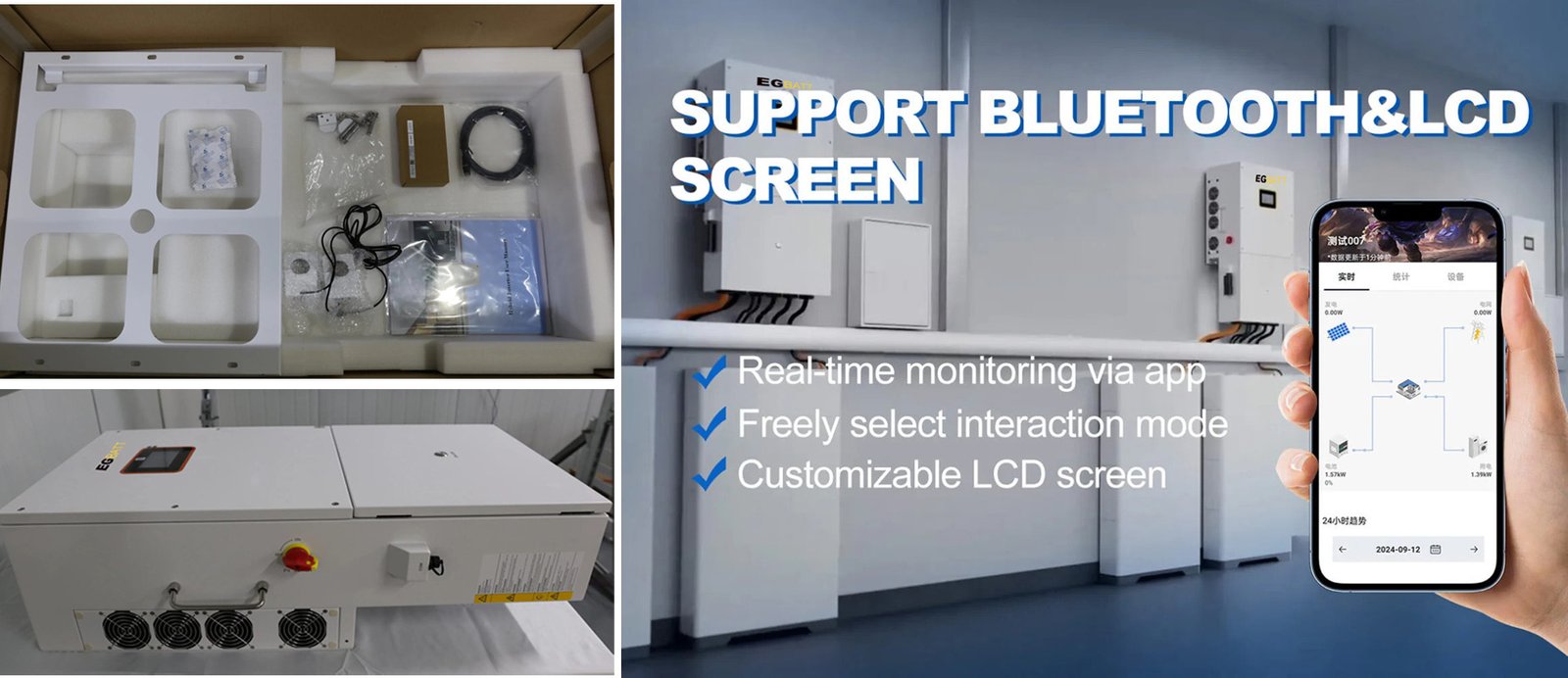

No, it can run completely off-grid without an internet connection. However, if you want to monitor your solar generation and battery performance, the system can be connected to Wi-Fi or a local app for real-time data tracking.
5. Can I expand my system later?
Yes. The All-In-One 12KW 18KPV Hybrid Inverter is designed for future expansion. You can easily add more solar panels or battery storage as your energy needs grow — ensuring your investment stays scalable for years to come.
6. How does EGBATT’s after-sales support compare to EG4?
EGBATT provides direct factory support, firmware updates, and 24-hour technical assistance. Many customers appreciate that they can speak directly with the manufacturer — rather than through third-party resellers — for faster and more accurate service.
7. Why is the 12KW 18KPV Hybrid Inverter more affordable than EG4’s model?
EGBATT offers factory-direct pricing without the layers of distribution that increase retail costs. Even though it’s priced lower, the build quality, safety features, and performance standards match or exceed those of the EG4 18KPV Hybrid Inverter all-in-one solar inverter
Why Do Installers Say It’s the Next-Generation EG4 12KW 18KPV Hybrid Inverter Alternative?
Many installers compare the EG-12KW-US hybrid inverter with the EG4 12KW 18KPV Hybrid inverter, since both are widely recognized in the U.S. market. While the EG4 18KPV Hybrid inverter is a familiar choice, the EG-12KW-US hybrid inverter stands out as the perfect replacement, delivering superior flexibility, better reliability, and a stronger value proposition.
1) Greater PV Input Flexibility
The EG4 12KW 18KPV Hybrid inverter is limited to 3 MPPT inputs, which can restrict string design on complex rooftops. By contrast, the EG-12KW-US hybrid inverter is equipped with 4 fully independent MPPTs. This allows for more flexible string configurations, reduces mismatch losses, and makes expansion much easier. For homeowners with diverse panel orientations, the EG-12KW-US hybrid inverter is simply the smarter choice.
2). Superior Load Handling Power
While the EG4 12KW 18KPV Hybrid inverter performs well in most scenarios, the EG-12KW-US hybrid inverter takes it further. With 200A pass-through and full 100% unbalanced load support, it easily powers heavy household appliances, HVAC systems, and modern U.S. residential loads without limitations. This ensures smooth daily operation even under high-demand conditions.
3). Factory Direct Advantage
The EG-12KW-US 12KW hybrid inverter is developed and manufactured directly by EGBATT, ensuring it pairs perfectly with our energy storage systems. the EG-12KW-US 18KPV 12KW hybrid inverter is offered at near factory cost. This gives customers both performance and price advantages without sacrificing quality.
If you are evaluating options between the EG4 18kPV All-In-One Hybrid Inverter and the EG-12KW-US 12KW hybrid inverter, the choice is clear. The EG-12KW-US hybrid inverter offers:
- 4 MPPTs vs. the EG4 Hybrid inverter’s 3 MPPTs
- Better load handling with 200A pass-through and unbalanced support
- Direct factory pricing with seamless storage integration
In every aspect, the EG-12KW-US 12KW 18KPV hybrid inverter is designed as the perfect replacement for the EG4 18KPV Hybrid inverter, providing more flexibility, higher efficiency, and greater long-term value for U.S. customers.
Specifications:
| Model | EG-INVT-12KW-US | EG-INVT-16KW-US |
|---|
| PV input data |
| Max. PV input power (kW) | 18 | 24 |
| Max. PV input voltage (V) | 500 |
| Min. PV input voltage (V) | 120 |
| Start-up voltage (V) | 120 |
| MPPT voltage range (without battery)(V) | 120~500 |
| MPPT voltage range@full-load (V) | 150~430 |
| Rated PV input voltage (V) | 310 |
| No. of MPPT trackers | 4 |
| No. of strings per MPPT tracker | 1/1/1/1 |
| Max. input current per MPPT (A) | 16/16/16/16 | 20/20/20/20 |
| Max. short-circuit current per MPPT (A) | 22/22/22/22 | 25/25/25/25 |
|
| Battery input data |
| Battery type | Lithium-ion / Lead-acid |
| Max. charge / discharge power (kW) | 12 | 13 |
| Battery voltage range (V) | 40~58 |
| Rated battery voltage (V) | 48 |
| Max. charging / discharging current (A) | 250/260 | 260/280 |
| Rated charge / discharge current (A) | 250/260 | 260/280 |
| Battery charging strategy | Self-adaption to BMS |
| BMS communication | CAN |
|
| AC output data (grid side) |
| Rated output power (kW) | 12 | 16 |
| Max. apparent output power (kVA) | 13.2 | 16 |
| Rated grid voltage( (V) | 110-127/208-240V split phase, 240V single phase |
| Grid voltage range (V) | 240 |
| Rated grid frequency (Hz) | 60 | |
| Grid frequency range(Hz) | 55~65 | |
| Rated output current (A) | 50 | 66.7 |
| Max. AC output current (A) | 55 | 73.3 |
| Power factor | 0.8leading~0.8lagging |
| Max. grid passthrough current(A) | 200 |
| THDi | <3% |
| Grid type | 2L+N+PE |
|
| AC output data (load side) |
| Rated output power (kW) | 12 | 13 |
| Max. apparent output power (kVA) | 13.2 |
| Rated output voltage (L-N/L1-L2) (V) | 120/240 | |
| Rated output frequency (Hz) | 60 | |
| Rated output current (A) | 50 | 54 |
| Max. AC output current (A) | 55 | 55 |
| Peak output power | 110%,30s / 120%,10s / 150%,0.02s |
| Back-up switch time (ms) | <20 |
| THDu | <2% |
|
| Protection |
| Supported protection | Arc fault protection, PV reverse polarity protection, Anti-islanding protection, Ground fault protection
Leakage current protection, Insulation resistance detection, Backup output short circuit protection,
AC under-voltage protection, AC output over-current protection, AC over-voltage protection |
| Surge protection | DC Type II / AC Type II |
| Over voltage category | DC Type II / AC Type III |
|
| Certifications and standards |
| Certificates | FCC Part 15 Class B; UL1741,UL1741SA&SB all options, UL1699B,
CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12) |
|
| General data |
| Ingress protection | IP65 / NEMA 3R |
| Operating temperature range (℃) | -25~+60 |
| Cooling | FAN cooling |
| Relative humidity | 0-95% |
| Operating altitude (m) | 0~4,000(Derating above 2,000 altitude) |
| Dimensions W*D*H (mm) | 495 x 900 x 260 |
| Weight (kg) | 55 |
| Topology (solar / battery) | Transformerless / Transformer |
| Noise emission (dB) | 57 |
|
| Display and communication |
| Display | Touch panel |
| Communication | RS485, 4G(optional), Wi-Fi |

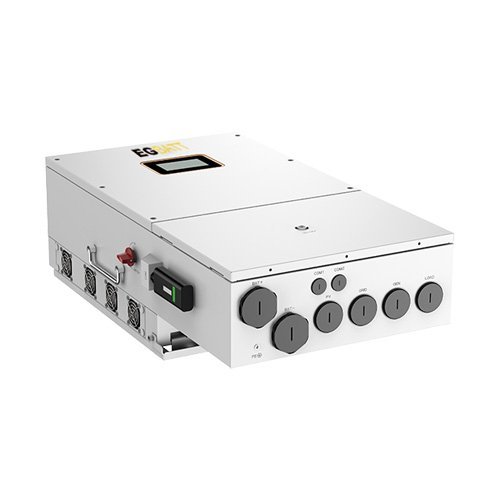

Power Options – 12kW or 16kW

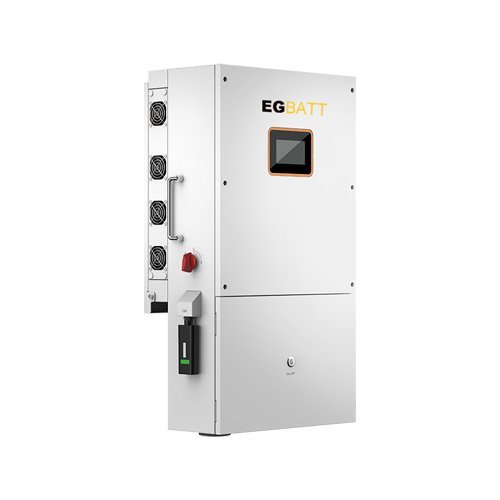

12kW Model (EG-INVT-12KW-US)
The most popular 12kW 18KPV Hybrid Inverter, designed for standard U.S. residential homes. It delivers whole-home backup power, stable performance, and everyday energy efficiency.
16kW Model (EG-INVT-16KW-US)
24KPV Hybird Inverter a stronger option for larger households, higher energy consumption, or small commercial applications requiring more output.
Both versions share the same advanced design and long-term reliability. Therefore, customers have the flexibility to choose the inverter size that best matches their actual energy demands.
Send Inquiry:
Whether you’re purchasing for personal use, working as a solar installer, or running a distribution business focused on hybrid inverters, we welcome your inquiry. Because this hybrid inverter is designed and manufactured in-house by EGBATT, we’re able to offer factory-direct pricing
Send us an inquiry today and receive a price you’ll be confident moving forward with
Jerry –
I’ve been using 10KW inverter before and it was great, but with only 2 MPPTs, it couldn’t handle more panels. The 12KW version has 4 MPPTs, so I only needed one instead of two smaller units. Super happy with this all-in-one system!
Edward –
I’ve installed a lot of systems over the years, including the EG4 12KW inverters, but this EGBATT 12KW 18KPV Hybrid Inverter honestly performs better. The extra MPPT input makes a big difference when working with multiple roof angles, and the overall build quality feels solid. What really stands out is the factory-direct pricing . very reasonable for the features and performance you get. It’s efficient, easy to set up, and runs smoothly. Definitely one of the best 12KW hybrid inverters I’ve used. Highly recommended.
